Siemens Selector switch, illuminable, 1NO+1NC, 22mm
View on Siemens 📄 Datasheet
Siemens

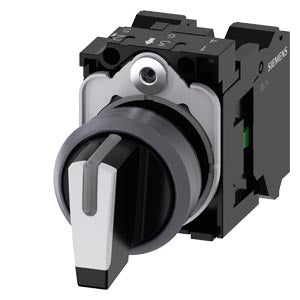

Siemens Selector switch, illuminable, 1NO+1NC, 22mm Part number 3SU1130-2BM60-3NA0

EAN / Barcode 4011209971646
Product Type Control Panel
Product Class Selector switch, complete
ETIM Class Selector switch, complete
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Selector switch, illuminable, 22 mm, round, plastic with metal front ring, white, selector switch, short, 3 switch positions I>O

Technical Specifications

Colour buttonWhite
Compliance/StandardsEN 61373, IEC 61508, IEC 60721, IEC 60068-2, IEC 81346-2
country_of_originGermany
Degree of protection (IP)IP67/IP69K
Degree of protection (NEMA)Other
descriptionSelector switch, illuminable, 22 mm, round, plastic with metal front ring, white, selector switch, short, 3 switch positions I>O<II, momentary contact type, actuating angle 2x45°, 10:30h/12h/13:30h, with holder, 1 NO, 1 NO, Spring-type terminal
Diameter (mm)323.0mm
Height opening28.8 mm
Hole diameter22.3 mm
IP RatingIP66
IP Rating DetailedIP66 IP67, IP69(IP69K) protection class IP of the terminal IP20 degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13 shock resistance according to IEC 60068
Material front ringOther
Max Frequency18001 /h
Number of contacts as normally open contact2
Number of switch positions3
Part Depth (mm)30,00mm
Part Height (mm)120,00mm
Part Width (mm)70,00mm
Spring-returnYes
Suitable for illuminationYes
Supply voltage5 V
Type of control elementToggle
Type of electric connectionSpring clamp connection
Weight (g)0,074 Kg
Width opening32.3 mm
With front ringYes
View complete specifications on Siemens
