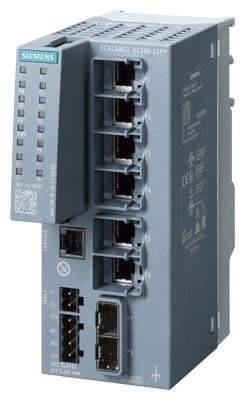

Siemens Scalance XC206-2SFP Manageable layer 2 IE switch Part number 6GK5206-2BS00-2AC2

Product Overview

The Siemens 6GK5206-2BS00-2AC2 is a SCALANCE XC206-2SFP managed industrial Ethernet switch designed for flexible, robust, and secure Layer-2 network communication in automation environments. It combines six electrical RJ45 ports with two SFP slots to support both copper and fiber-optic cabling, allowing scalable network architectures for small to medium automation cells. With industrial-grade design, extended temperature tolerance, and comprehensive management functions, it ensures reliable performance in demanding industrial settings.

Key Features

• Managed Layer-2 industrial Ethernet switch from the SCALANCE XC series
• 6 × 10/100 Mbit/s RJ45 ports with rugged industrial design

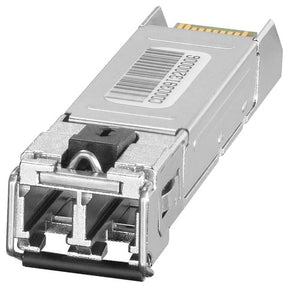

• 2 × SFP slots supporting 100/1000 Mbit/s fiber transceivers
• Supports mixed transfer rates: 10, 100, and 1000 Mbit/s
• Advanced management features: VLAN, RSTP, redundancy mechanisms, PROFINET support, and diagnostics
• Integrated signaling contact for status and fault reporting
• Console port for device configuration and switch management
• Redundant 24 V DC power supply capability for high availability
• Wide operating temperature range from –40 °C to +70 °C
• Industrial security conformity (IEC 62443-4-2 certified) for protected network operation
• DIN-rail, S7-rail, or wall mounting for flexible installation
• Designed for harsh industrial environments with IP20 protection

Technical Specifications

• Article Number: 6GK5206-2BS00-2AC2
• Product Type: SCALANCE XC206-2SFP managed industrial Ethernet switch
• Electrical Ports: 6 × RJ45 (10/100 Mbit/s)
• SFP Ports: 2 × SFP slots supporting 100/1000 Mbit/s fiber modules
• Transfer Rates Supported: 10/100/1000 Mbit/s (depending on port or SFP)
• Console Port: RJ11 for switch configuration
• Signaling Contact: 1 × potential-free contact for status indication
• Power Supply: 9.6–31.2 V DC (redundant possible)
• Operating Temperature: –40 °C to +70 °C
• Storage / Transport Temperature: –40 °C to +80 °C
• Relative Humidity: Up to 95% (non-condensing)
• Protection Class: IP20
• Mounting: DIN-rail, S7-rail, or wall mounting
• Switch Capacity: High-performance Layer-2 switching with VLAN, QoS, redundancy, diagnostics, and PROFINET support
• Security: IEC 62443-4-2 industrial cybersecurity compliant

Compliance & Certifications

• IEC 62443-4-2 industrial security certification
• Complies with industrial EMC and safety standards
• Part of the Siemens SCALANCE XC managed-switch family
• Designed for PROFINET, Ethernet/IP, and standard industrial Ethernet networks
• Suitable for installation in industrial control cabinets and protected environments

Applications

The SCALANCE XC206-2SFP is ideal for building flexible industrial Ethernet networks that require a combination of copper and long-distance fiber connections. It is used to link PLCs, HMIs, I/O stations, drives, control cabinets, and distributed automation systems. The SFP ports allow network extension across buildings or production areas, while the managed functionality enables redundancy, diagnostics, and secure communication in factories, process plants, logistics systems, and infrastructure networks.
