Product Overview

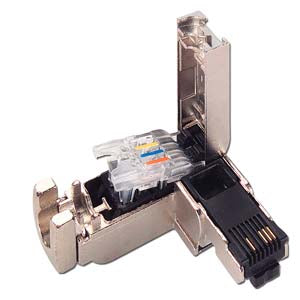

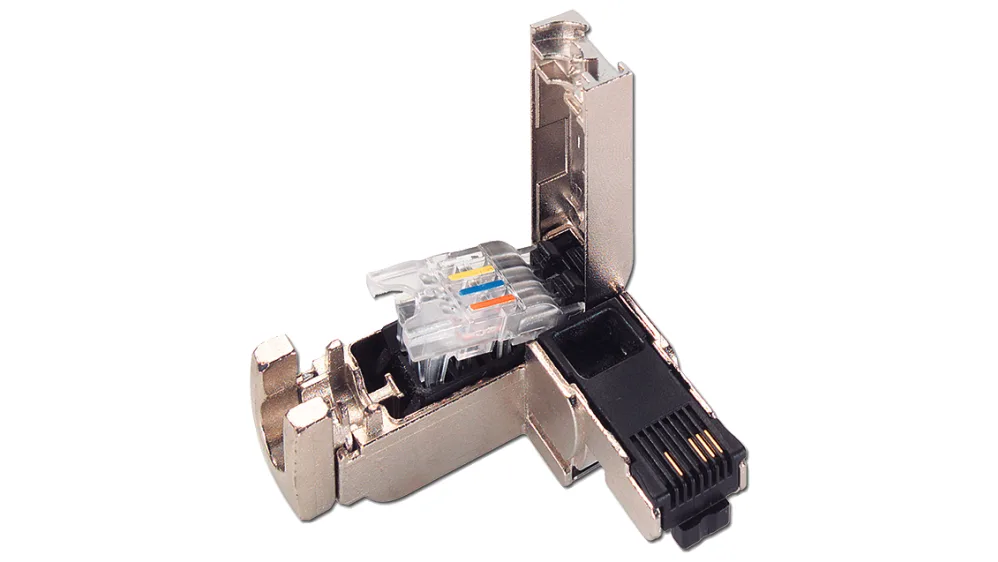

Industrial Ethernet FastConnect RJ45 plug 90° 2x2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP Cable 2x2; 90° cable outlet. This high-performance connector is engineered for industrial Ethernet applications requiring reliable connections with space-saving 90° cable routing in demanding environments.

Key Features

Connector Design:

• RJ45 plug-in connector optimized for industrial applications
• 90° cable outlet for space-efficient installation configurations
• Rugged metal enclosure for enhanced durability and protection
• FastConnect (FC) connection system for quick and reliable assembly

Performance Specifications:

• Data Transfer Rate: 10/100 Mbit/s Ethernet communication
• Cable Compatibility: IE FC TP Cable 2x2 (Cat5e)
• Electrical Connections: 4 electrical connections, 8 positions
• Temperature Range: -40°C to +85°C ambient operating temperature

Construction and Protection:

• Degree of Protection: IP20
• Metal Enclosure: Robust construction for industrial environments
• Dimensions: 13.7 x 16 x 42 mm (W x H x D)
• Material Compliance: RoHS compliant since 15.06.2007

Technical Specifications

Physical Characteristics:

• Net Weight: 0.035 kg (individual connector)
• Packaging: 1 pack = 50 units
• Packaging Dimensions: 14.00 x 18.50 x 5.70 cm
• Cable Outlet Angle: 90°

Electrical Properties:

• Communication Protocol: Ethernet
• Speed: 10 Mbit/s, 100 Mbit/s
• Cable Category: Cat5e
• Connector Type: RJ45 with FC connection system
• Voltage Rating: 80 VAC
• Contact Material: High-quality metal contacts

Standards and Compliance:

• RoHS Compliance: Yes, since 15.06.2007
• WEEE Take-Back Obligation: No
• Export Control: AL: N / ECCN: N
• Country of Origin: Poland

Product Information:

• EAN: 4019169403962
• UPC: 662643221220
• Packaging Quantity: 50 units per pack
• Quantity Unit: 1 Package

Applications

The IE FC RJ45 Plug 90° is ideal for:

• Industrial automation networks with space constraints
• SIMATIC S7 system connections
• PROFINET communications
• Factory floor Ethernet installations requiring angled connections
• Machine-to-machine communication in tight spaces
• Distributed control systems
• Process automation networks

Installation Benefits

FastConnect System:

• Tool-free assembly for quick installation
• Wiring time under 30 seconds per connector
• Reduced labor costs and installation time
• Consistent, reliable connections
• Field-proven connection technology

Space-Saving Design:

• 90° cable outlet minimizes installation space
• Ideal for confined areas and compact installations
• Reduces stress on cables in tight routing situations
• Professional appearance with organized cable management

Quality Assurance:

• Integrated transparent pivot for visual inspection
• Color-coded marking (red/green) for proper connection verification
• EMC-compliant shielding connection
• Maintenance-free operation

Compatibility

• Cable Type: IE FC TP Cable 2x2
• System Integration: SIMATIC NET Industrial Ethernet
• Network Architecture: Star, line, and ring topologies
• Communication Standards: IEEE 802.3 Ethernet
• PROFINET: Fully compatible with PROFINET networks

Available Packaging Options

This product is available in multiple packaging configurations:

• 50 units per pack (6GK1901-1BB20-2AE0) - Current SKU
• 1 unit per pack (6GK1901-1BB20-2AA0) - Individual units
• 10 units per pack (6GK1901-1BB20-2AB0) - Small quantities

REACH Compliance

Currently, there is no information on SVHC (Substances of Very High Concern) from the supply chain. Products are regularly compared with the REACH candidate list, and information will be updated as new findings become available.

Download existing graphical data for this product:

• Product Information and Technical Data
• Installation and Assembly Instructions
• Wiring and Connection Guide
• Product Datasheet
• Technical Support Documentation
