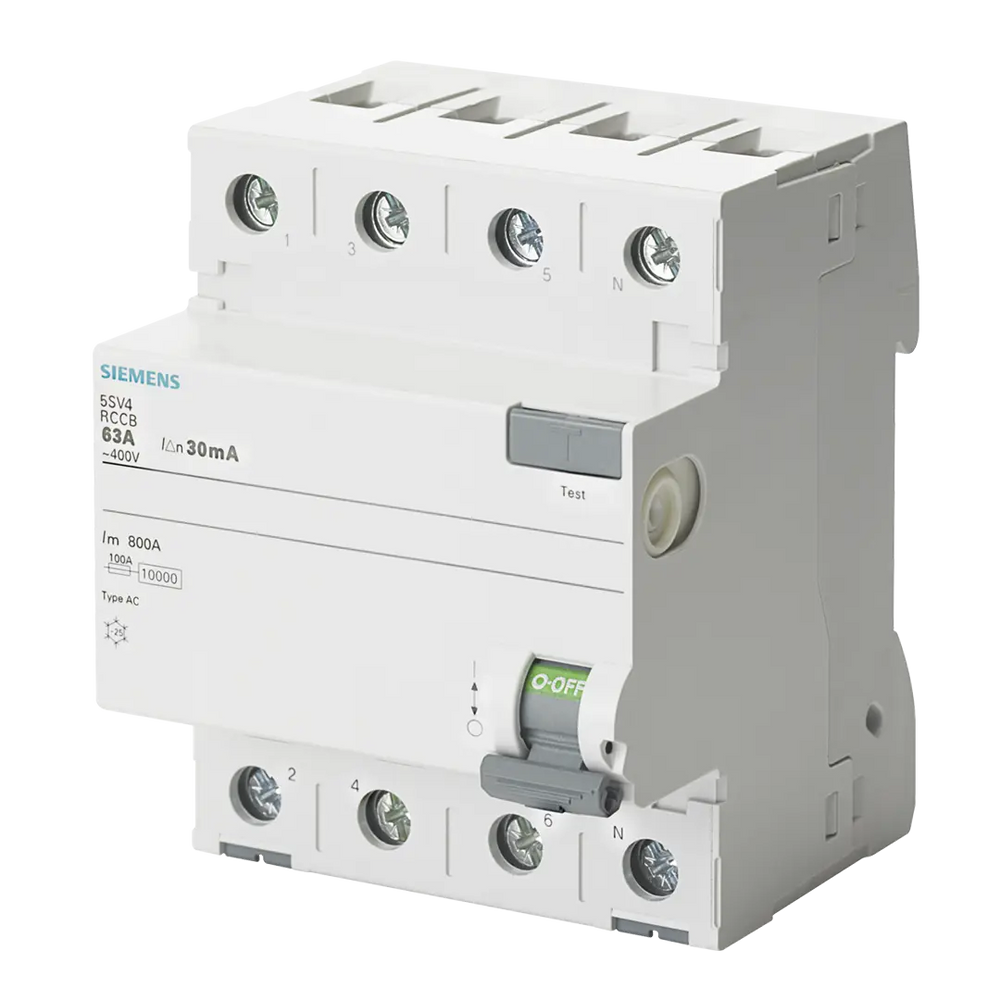

Siemens Residual current operated circuit breaker, 4-pole Part number 5SV4346-0

EAN / Barcode 4001869427942
Product Type Control Panel
Product Class Residual current circuit breaker (RCCB)
ETIM Class Residual current circuit breaker (RCCB)
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

Whenever working on an electrical installation, there is always a risk factor. Siemens Residual current operated circuit breaker, 5SV4346-0, 4-pole plays a vital role within the SENTRON protective components installation. With this in mind, the Residual current device is designed to safely disconnect hazardous residual currents through grounding.

Electrical originated fires are also another problematic area within Automation. By including RC (Residual current) Operated circuit breaker, one has time to prevent the outbreak as they occur. No matter if the trouble occurred through direct or indirect contact, the device is equipped with a protection function to rapidly shut down.

Technical Specifications

Additional equipment possibleYes
Ambient temperature during operating-25 °C
Built-in depth70 mm
Compliance/StandardsIEC 60068-2, IEC 61008-1
Connectable conductor cross section multi-wired35 mm²
Connectable conductor cross section solid-core0.75 mm²
country_of_originGermany
Degree of protection (IP)IP20
descriptionresidual current operated circuit breaker, 4-pole, type AC, In: 63 A, 30 mA, Un AC: 400 V Use of these devices is not permitted in all countries. Observe national installation regulations!
Frequency50 Hz
IP RatingIP20
IP Rating DetailedIP20 if the distribution board is installed, with connected conductors Breaking Capacity switching capacity current according to IEC 61008
Leakage current typeAC
Mounting methodOther
Number of poles4
Part Depth (mm)85,00mm
Part Height (mm)78,00mm
Part Width (mm)97,00mm
Pollution degree2
Power loss3.9 W
RAL-number (similar)7035
Rated current63 A
Rated fault current0.03 A
Rated impulse withstand voltage Uimp6 kV
Rated insulation voltage Ui2000 V
Rated voltage400 V
Short-circuit breaking capacity (Icw)10 kA
Voltage typeAC
Weight (g)0,370 Kg
Width in number of modular spacings4
With interlocking deviceYes
