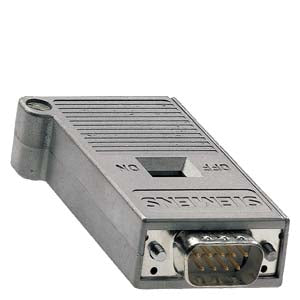

Siemens Profibus bus connector with axial cable outlet

Product Overview

PROFIBUS bus connector with axial cable outlet for Industry PC, SIMATIC OP, OLM; transfer rate 12 Mbit/s; terminating resistor with isolating function, metal enclosure. This industrial-grade connector provides reliable PROFIBUS communication with integrated termination capabilities for demanding automation environments.

Key Features

Connector Design:

• PROFIBUS bus connector with RS485 interface
• Axial cable outlet for streamlined installation
• Metal enclosure for enhanced durability and EMC protection
• Integrated terminating resistor with isolating function
• 9-pin sub-D interface complying with IEC 61158-2

Performance Specifications:

• Transfer Rate: Up to 12 Mbit/s PROFIBUS communication
• Interface: RS485 electrical interface
• Cable Outlet: Axial (180°) cable outlet design
• Termination: Integrated terminating resistor with switch control
• Connection: FastConnect insulation displacement technology

Construction and Protection:

• Enclosure Material: Robust metal construction
• Dimensions: 39 x 15 x 57 mm (L x W x H)
• Net Weight: 0.090 kg
• Material Compliance: RoHS compliant since 01.01.2006

Technical Specifications

Physical Characteristics:

• Packaging: 1 piece per package
• Packaging Dimensions: 5.50 x 8.20 x 3.00 cm
• Connection Cycles: Up to 10 connecting cycles
• Cable Outlet Type: Axial (straight-through)

Electrical Properties:

• Communication Protocol: PROFIBUS DP/PA
• Transfer Rate: 9.6 kbit/s to 12 Mbit/s
• Interface Standard: RS485 according to IEC 61158-2
• Termination: Integrated 220Ω terminating resistor
• Switch Function: ON/OFF switch for terminating resistor

Standards and Compliance:

• RoHS Compliance: Yes, since 01.01.2006
• Export Control: AL: N / ECCN: N
• Country of Origin: Bulgaria
• EAN: 4019169400800
• UPC: 804766319600

Applications

The PROFIBUS bus connector is ideal for:

• Industry PC connections to PROFIBUS networks
• SIMATIC OP (Operator Panel) integration
• OLM (Optical Link Module) connections
• Electrical segment connections in PROFIBUS networks
• Programming device connections
• Distributed automation systems

Installation Benefits

FastConnect Technology:

• Insulation displacement connection system
• Tool-free cable preparation and connection
• Reduced installation time and labor costs
• Color-coded contact identification

Termination Control:

• Integrated terminating resistor with switch control
• Bus isolation function for service purposes
• Proper bus termination for first and last nodes
• Switch OFF position disconnects PROFIBUS segment

Compatibility

System Integration:

• SIMATIC NET: Full compatibility with SIMATIC NET PROFIBUS
• Industry PC: Direct connection to industrial computers
• SIMATIC OP: Integration with operator panels
• OLM/OBT: Connection to optical link modules

Network Topology:

• Bus Structure: Linear bus topology support
• Segment Length: Up to 1200m (depending on baud rate)
• Node Capacity: Up to 126 nodes per segment
• Cable Types: Compatible with standard PROFIBUS cables

Installation Guidelines

Connection Procedure:

• Strip cable insulation using appropriate stripping tool
• Insert green and red cores into contact cover
• Close contact cover ensuring proper contact
• Position cable shield on shield plate
• Close housing cover and secure with screws

Termination Settings:

• First/Last Node: Switch position "ON" (terminating resistor active)
• Intermediate Nodes: Switch position "OFF" (terminating resistor inactive)
• Service Mode: Switch position "ON" (bus isolation active)

REACH Compliance

Currently, there is no information on SVHC (Substances of Very High Concern) from the supply chain. Products are regularly compared with the REACH candidate list, and information will be updated as new findings become available.
