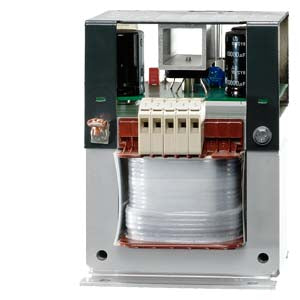

Siemens Power supply, phase 1, screw terminals

Product Overview

SKU 4AV2400-2EB00-0A - Power supply; phases: 1; Pn(kW): 0.24; Upri(V): 400-230+/-15; Usec(V DC): 24; Isec(A DC): 10/12 (60/40 CEL); F(Hz): 50...60; vector group/shielding winding: II0 /0; protection class: I; temperature rise/insulation class: 60 /B; W(%): 5; IP00; connection: screw/flat-type connection; mounting: screws; EN 61558-2-6, EN 61131-2 >safety transformer<

This Siemens SIRIUS non-stabilized power supply provides reliable DC power conversion for industrial automation and control applications.

Key Features & Specifications

• Input Voltage: 400-230V AC ±15% tolerance for flexible installation
• Output Voltage: 24V DC regulated output
• Output Current: 10A continuous / 12A intermittent (60/40 duty cycle)
• Power Rating: 0.24 kW (240W) power capacity
• Frequency Range: 50-60 Hz for international compatibility
• Phases: Single-phase operation for simplified wiring
• Vector Group: II0 /0 configuration with shielding winding

Performance Characteristics

• Protection Class: Class I for enhanced safety
• Temperature Rise: 60°C maximum with Class B insulation
• Regulation: 5% voltage regulation (W%)
• Enclosure Rating: IP00 for panel mounting applications
• Safety Transformer: Compliant with safety transformer standards
• Non-Stabilized Design: Cost-effective solution for standard applications

Physical Specifications

• Dimensions: 120mm W x 128mm D x 170mm H
• Net Weight: 7.303 kg
• Packaging Dimension: 250.00 x 280.00 x 250.00 mm
• Mounting: Screw mounting for secure installation

Connection & Installation

• Terminal Type: Screw/flat-type (tab) connection terminals
• Installation Method: Screw mounting system
• Wiring: Simple single-phase input connection
• Primary Connections: 400V or 230V AC input flexibility
• Secondary Connections: 24V DC output terminals

Standards Compliance

• EN 61558-2-6: Safety transformer standards compliance
• EN 61131-2: Industrial automation equipment standards
• Protection Class I: Enhanced safety classification
• RoHS Compliance: Since 01.07.2006

Applications

• Industrial Automation: Power supply for PLC systems and control panels
• Control Circuits: 24V DC supply for contactors, relays, and sensors
• Machine Control: Power for industrial machinery control systems
• Building Automation: HVAC and building management systems
• Process Control: Instrumentation and process automation applications
• Safety Systems: Emergency stop circuits and safety-related applications

System Benefits

Part of the SIRIUS power supply family, offering:

• Reliable 24V DC power for industrial applications
• Cost-effective non-stabilized design for standard requirements
• Safety transformer design for enhanced protection
• International voltage compatibility (230V/400V)
• Robust construction for industrial environments

Technical Advantages

• Dual Voltage Input: 230V/400V flexibility for different installations
• High Current Capability: 10A continuous, 12A intermittent operation
• Safety Design: Isolation transformer with protective earth connection
• Industrial Grade: Designed for harsh industrial environments
• Standard Compliance: Meets international safety and performance standards
• Simple Installation: Screw terminals and mounting for easy setup

Operating Conditions

• Input Voltage Tolerance: ±15% for stable operation under varying conditions
• Frequency Range: 50-60 Hz for global compatibility
• Temperature Rating: 60°C rise with Class B insulation system
• Duty Cycle: 60/40 for intermittent high current operation

Additional Information

• Country of Origin: Czech Republic
• EAN: 4001869930695
• UPC: 754554888194
• Article Number: 4AV2400-2EB00-0A
• RoHS Compliance: Since: 01.07.2006
• WEEE Take-Back Obligation: Yes
