Product Overview

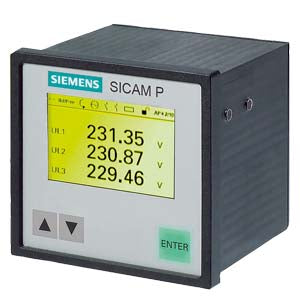

SICAM P50 direct-display control panel installation instrument 96 x 96 mm with graphic display, 2 binary outputs, type of protection: IP41 (standard), RS485 with PROFIBUS DP and Modbus RTU / ASCII. This advanced power meter is designed for recording and displaying measured values in electrical power supply networks with exceptional accuracy and reliability.

Key Features

Display and Interface:

• 96 x 96 mm control panel installation with graphic display
• Background-lit display for clear visibility in various lighting conditions
• User-friendly interface with intuitive navigation

Communication Capabilities:

• RS485 interface with PROFIBUS DP and Modbus RTU/ASCII protocols
• Seamless integration into existing network infrastructures
• Real-time data transmission capabilities

Output Configuration:

• 2 binary outputs for control and signaling functions
• Configurable output parameters for diverse applications

Protection and Reliability:

• IP41 protection class (standard) for enhanced durability
• Robust construction suitable for industrial environments

Technical Specifications

Physical Characteristics:

• Net Weight: 0.750 kg
• Dimensions: 96 x 96 mm panel mounting
• Packaging Dimensions: 0.26 x 0.39 x 0.14 m

Electrical Specifications:

• Power Supply: Compatible with standard industrial power supplies
• Operating Temperature Range: Suitable for industrial applications
• Frequency Range: 45 Hz to 65 Hz minimum operating range

Measurement Capabilities:

• Records over 100 different electrical parameters
• RMS values of voltages (phase-to-phase and phase-to-earth)
• Current measurements with high accuracy
• Active, reactive, and apparent power calculations
• Energy monitoring and recording
• Power factor and phase angle measurements
• Harmonic analysis capabilities
• Total Harmonic Distortion (THD) measurements
• Frequency and symmetry factor calculations

Compliance and Standards:

• RoHS compliant since 19.08.2013
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control: AL : N / ECCN : EAR99
• Country of Origin: India

Product Information:

• EAN: 4025515712749
• UPC: 040892760101
• Packaging Quantity: 1 Piece

Applications

The SICAM P50 is ideal for:

• Industrial power monitoring systems
• Commercial building energy management
• Electrical distribution panel monitoring
• Power quality analysis
• Energy efficiency optimization
• Preventive maintenance programs

Important Product Notice

This product has been succeeded by: SICAM P850 7KG850; SENTRON PAC3120/3220/2200 7KM3120/7KM3220/7KM2200. Please consider these newer alternatives for new installations.

Download existing graphical data for this product:

• Product Information and Downloads
• Technical Documentation and Manuals
• CAD Data and Dimensional Drawings
• Installation Manual PDF
• Product Datasheet
