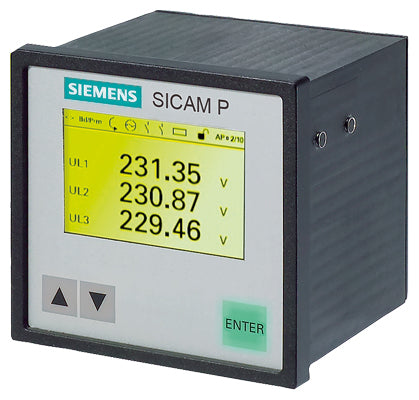

Siemens Power meter SICAM P50 direct-display, 96 x 96 mm Part number 7KG7750-0AA01-0AA1

Product Overview

The Siemens 7KG7750-0AA01-0AA1 is a panel-mounted power meter from the SICAM P50 series, designed for 96 × 96 mm control-panel installation. It features a graphic display, standard front protection class IP41, and supports multiple communication protocols including RS-485 with Modbus/ASCII and IEC 60870-5-103. It is designed for detailed electrical measurement and monitoring in industrial, utility and infrastructure applications.

Key Features

• Panel power meter, SICAM P50 series, for 96 × 96 mm cut-out
• Graphic display for measured values, waveforms and status information
• Standard front protection class IP41 (terminal compartment IP20)
• Multiple communication interfaces: RS-485 (Modbus RTU/ASCII), optional IEC 60870-5-103 and PROFIBUS DP
• Wide measurement capability: voltage, current, active/reactive/apparent power, harmonics (up to 19th)
• Optional I/O modules: binary inputs/outputs, analog inputs/outputs, relay outputs for limit-value monitoring

Technical Specifications

• Article Number: 7KG7750-0AA01-0AA1
• Product Series: SICAM P50 power meter
• Panel Cut-out Size: 96 × 96 mm (IEC 61554/DIN 43700)
• Protection Class (Front): IP41 (standard variant)
• Supported Measurement Functions: U, I, cos φ, active/reactive/apparent power, harmonics up to 19th
• Sampling Frequency: 3 200 Hz
• Communication Protocols: RS-485 (Modbus RTU/ASCII), optional IEC 60870-5-103 / PROFIBUS DP
• Optional I/O Modules: 2 binary outputs or inputs, 2 analog inputs/outputs or 3 relay outputs
• Measurement Range (Voltage): Up to 690 V (direct connection without transformers)
• Measurement Range (Current): Direct up to 6 A (without current transformer)
• `;

Compliance & Certifications

• Part of Siemens SICAM P series for power-quality and metering applications
• Designed to meet IEC/EN standards for power measurement, monitoring and communications

Applications

Ideal for energy measurement and monitoring in industrial switchgear, utility substations, infrastructure installations and commercial distribution boards. Suitable for applications requiring detailed measurement of power parameters (U, I, P, Q, harmonics), remote communication via Modbus or IEC 60870-5-103, and additional I/O modules for alarm and control functions.
