Product Overview

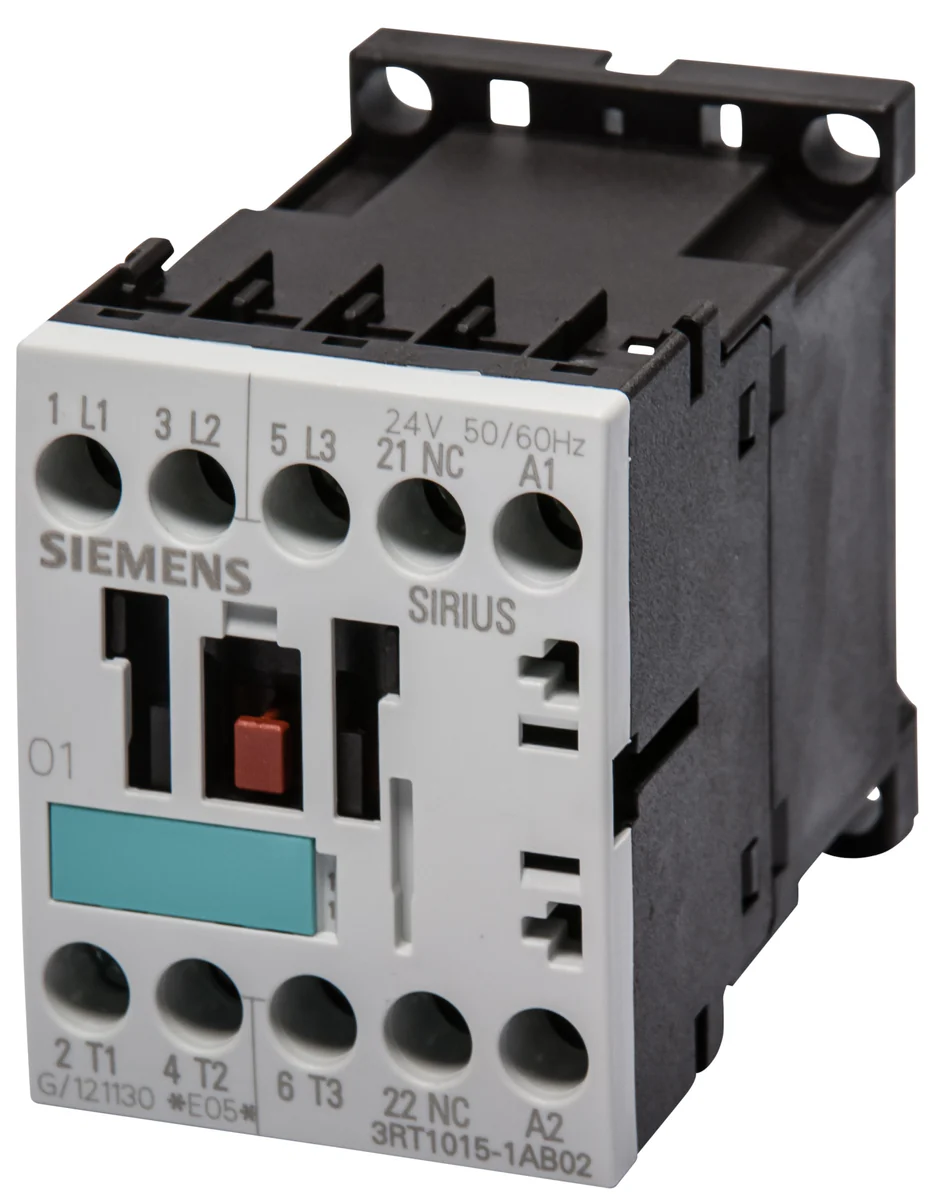

Power contactor, AC-3 7 A, 3 kW / 400 V 1 NC, 24 V AC, 50/60 Hz 3-pole, Size S00 screw terminal

This compact power contactor (Article Number: 3RT1015-1AB02) is designed for reliable switching of three-phase motors and electrical loads in industrial applications. The device features a 3-pole configuration with AC-3 rating of 7 A at 3 kW / 400 V, making it suitable for small to medium motor control applications. With 24 V AC coil voltage at 50/60 Hz and one normally closed auxiliary contact, this Size S00 contactor provides dependable switching performance with screw terminal connections.

Key Features

• 3-pole power contactor for three-phase motor control
• AC-3 rating: 7 A, 3 kW / 400 V for reliable motor switching
• 24 V AC coil voltage at 50/60 Hz for universal compatibility
• 1 normally closed (NC) auxiliary contact for control circuit feedback
• Size S00 compact design for space-efficient installation
• Screw terminal connections for secure and reliable wiring
• Robust construction for demanding industrial environments
• High switching reliability for critical applications

Technical Specifications

• Net Weight: 0.206 kg
• Packaging Dimensions: 50.00 x 63.50 x 77.00 mm
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece
• Country of Origin: Germany
• Rated Current: 7 A (AC-3)
• Power Rating: 3 kW / 400 V
• Coil Voltage: 24 V AC, 50/60 Hz
• Auxiliary Contacts: 1 NC
• Pole Configuration: 3-pole
• Size: S00
• Terminal Type: Screw terminals

Applications

• Small motor control up to 3 kW in industrial applications
• Pump control systems for water and fluid handling
• Fan motor switching in HVAC applications
• Conveyor motor control in material handling systems
• Machine tool applications requiring reliable motor switching
• Process control systems with motor-driven equipment
• Manufacturing equipment with three-phase motor requirements
• Automation systems requiring dependable switching

Installation Benefits

• Compact Size S00 for space-efficient panel mounting
• Secure connections with screw terminal design
• Reliable operation in demanding industrial environments
• Easy installation with standard mounting methods
• Professional appearance maintaining system aesthetics
• Auxiliary contact for control circuit integration
• Universal coil voltage compatible with common control systems

Power Contactor Advantages

• Motor protection through reliable switching operation
• High switching capacity for AC-3 motor loads
• Long operational life with robust contact design
• Electrical isolation between control and power circuits
• Overload handling suitable for motor starting applications
• Compact design maximizing panel space efficiency
• Proven reliability in industrial applications

Compatibility

• 24 V AC control systems at 50/60 Hz
• Three-phase motor applications up to 3 kW
• Industrial control panels with Size S00 mounting
• Motor control centers requiring compact contactors
• Automation systems with auxiliary contact requirements
• Standard DIN rail and panel mounting systems

Product Classifications

• eClass: Not specified
• ETIM: Not specified
• UNSPSC: Not specified

Compliance & Certifications

• Export Control: ECCN: N / AL: N
• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: Yes

REACH Compliance

This product complies with REACH regulation requirements. Currently, there is no information on SVHC (Substances of Very High Concern) from the supply chain. The product is regularly compared with upstream user information regarding substances indicated in the candidate list in accordance with REACH regulation requirements.

Download existing graphical data for this product:

For technical documentation and CAD files, please visit:

• Official Product Datasheet (PDF)
• Siemens Industry Mall Product Page
• Siemens PARTcommunity for 3D CAD Models
• Siemens Technical Support Center for technical documentation requests
