Description

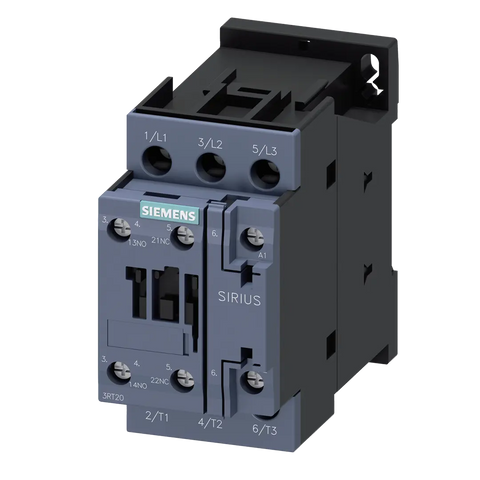

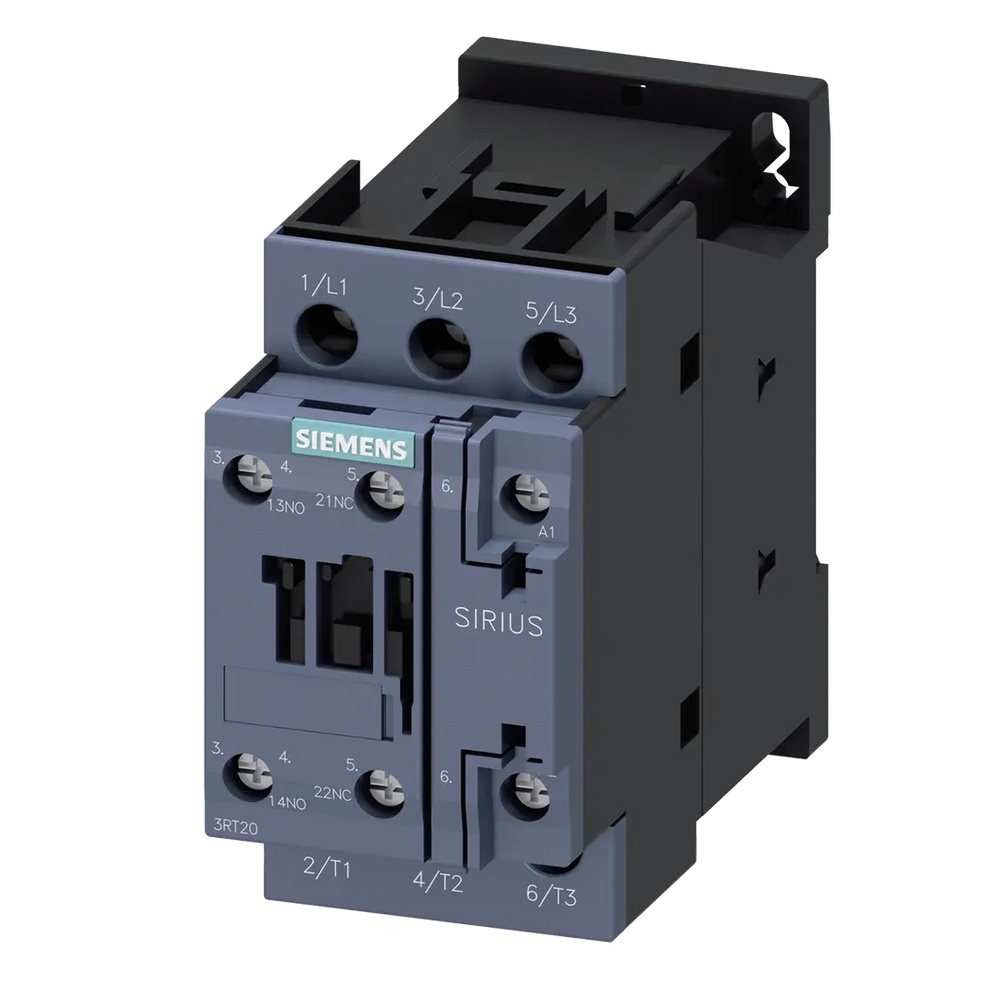

xThis 25 A power contactor from the SIRIUS series is suitable for motor loads up to 11 kW at 400 V AC. It operates with a 24 V DC coil and features 1 NO + 1 NC auxiliary contacts, providing reliable motor switching in industrial environments.
Specifications
x| IP Rating | IP20 |
| Country of Origin | Germany |
| Temperature: Operating | -25°C to 60°C |
| Part Depth (mm) | 107mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 85mm |
| Packaging size / unit | pc(s) |
| Connection Style | 1 NO + 1 NC / 3 Poles |
| Connection Type | Screw type terminals |
| Max Frequency | 250 1/h - 1000 1/h |
| Type of Voltage | DC |
| Rated Operating Voltage | 690 VAC |
| Supply Voltage | 24 V |
| Mounting Type | Screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| Current Rating / Rated Current | 0.06 - 40 A |
| Operating Period | 10 000 000 cycles (contactor typical) / 5 000 000 (of the contactor with added electronically optimized auxiliary switch block typical) / 10 000 000 cycles (of the contactor with added auxiliary switch block typical) (Mechanical) |
