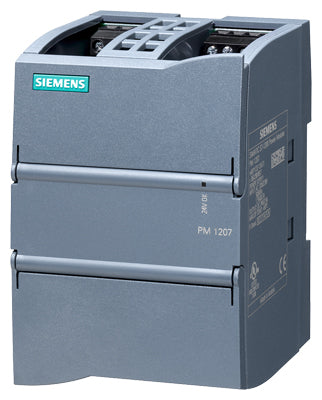

Siemens PM1207 Power module, stabilized, 24VDC, 2.5A
View on Siemens 📄 Datasheet
Siemens

Siemens PM1207 Power module, stabilized, 24VDC, 2.5A Part number 6EP1332-1SH71

EAN / Barcode 4025515152446
Product Type Control Panel
Product Class DC-power supply
ETIM Class DC-power supply
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

The SIMATIC PM1207 power supply module provides 24 V DC output with a current of 2.5 A. It is suitable for 120/230 V AC inputs, designed for S7-1200 systems, and features overload protection and high efficiency.

Technical Specifications

1st secondary output voltage24 V
Built-in height140 mm
Built-in width70 mm
Compliance/CertificationsATEX (EX) II 3G Ex nA nC IIC T4 Gc / cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURusRecognized (UL 60950-1, CSA C22.2 No. 60950-1) File E151273 / CE marking / CSA approval / EAC approval / EN 55022 Class B / EN 61000-6-2 / FM registration Class I, Div. 2, Group ABCD, T4 / IECEx Ex nA nC IIC T4 Gc / NEC Class 2 / UL approval / UL hazloc approval
Connection TypeScrew terminal
Degree of protection (IP)IP20
Depth75 mm
Direct mounting possibleYes
Height100 mm
IP Rating / DetailedIP20
Max. output current 12.5 A
Modular versionYes
Nominal value output current 12.5 A
Nominal value output voltage 124 V
Output voltage stabilizedYes
Part Depth (mm)75mm
Part Height (mm)70mm
Part Width (mm)70mm
Power output60 W
Rail mounting possibleYes
Rated supply voltage AC 50 Hz230 V
Rated supply voltage AC 60 Hz120 V
Short-circuit-proofYes
StabilizedYes
Supply Voltage120 / 230 V
Temperature: Operating0°C - +60°C
Type of electric connectionScrew connection
Voltage Output24 VDC
Voltage type (supply voltage)AC
Wall mounting possibleYes
Width70 mm
View complete specifications on Siemens
