Siemens Plug-in relay, complete unit, plug-in, 4W, 24VDC Siemens
View on Siemens 📄 Datasheet
Siemens

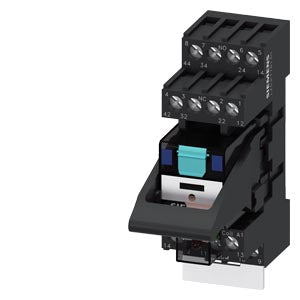

Siemens Plug-in relay, complete unit, plug-in, 4W, 24VDC

SKU / Article No. LZS:PT5A5L24
Product Type Control Panel
Product Class Switching relay
Category Timers and Controllers
Sub-category Relay
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

plug-in relay complete unit, 4 changeover contacts, 24 V DC, LED module red, standard plug-in socket screw terminal, 3.5 mm pinning Coupling relay with plug-in relay SIRIUS LZS for galvanic isolation, contact multiplication, and switching small loads and as a means of switching potential. The coupling relays feature wiring without tools and vibration-proof connection thanks to push-in spring-loaded terminals. Bases with logical separation enable easy wiring. The switching capacity has been tested according to A-15 and DC-13. Thanks to hard gold plated contacts, optimal interaction with electronic controls is ensured. Devices are available as complete units or as single modules in the designs RT, PT and MT, with or without logical separation, in various coil voltages as well as with screw-type or push-in terminals. Extensive accessories are available such as plug-in base, holding/ejection bracket, wiring bracket and LED modules. SIRIUS relays - one range for every application.

Technical Specifications

Siemens LZS Series Coupling Relay, Plug In, 24V dc Coil, 4PDT, 4-Pole

Mfr. Part No.: LZS:PT5A5L24

Product Details

Specifications

  • Coil Voltage: 24V dc
  • Contact Configuration: 4PDT
  • Mounting Type: Plug In
  • Number of Poles: 4
  • Series: LZS
  • Terminal Type: Screw
  • Dimensions: 74 x 27 x 72mm
  • Contact Material: Silver Alloy
  • Standards Met: CE
  • Relay Type: Plug-In Module
  • Life: 30,000,000 cycles
  • Operating Temperature Range: -40 to 70°C

Features & Benefits

  • 4PDT contact configuration enables multiple circuit connections
  • High cycle life of 30 million ensures operational dependability
  • AgNi contact material enhances conductivity and durability
  • Screw terminal connections provide secure and straightforward wiring
  • CE standards certification confirms compliance with safety requirements

Applications

  • Used for switching in industrial machinery
  • Commonly utilised in automation and control systems
  • Suitable for interface circuits in electrical panels
  • Employed in alarm and signalling devices
  • Ideal for controlling power loads in diverse settings

Additional Information

Country of Origin: DE

Datasheet

View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
