Siemens Plug-in cable 830-1T, 2 D-sub connectors, 9-pole Part number 6XV1830-1CH15

Product Overview

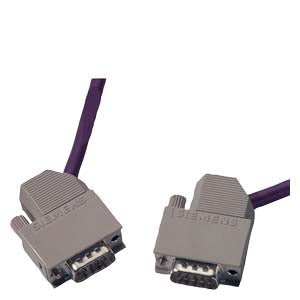

Plug-in cable 830-1T for PROFIBUS for connection of terminal devices to OLM and OBT Already pre-assembled with 2 D-sub connectors, 9-pole, cable terminated on both ends, 1.5 m. This ready-to-use connecting cable is specifically designed for PROFIBUS applications, providing reliable communication between terminal devices and Optical Link Modules (OLM) or Optical Bus Terminals (OBT) in industrial automation systems.

Key Features

• Pre-Assembled Ready-to-Use: Factory-assembled with 2 D-sub connectors for immediate installation
• PROFIBUS Optimized: Specifically designed for PROFIBUS communication protocols
• OLM/OBT Connectivity: Engineered for connection between terminal devices and Optical Link Modules or Optical Bus Terminals
• 9-Pole Configuration: Standard 9-pole D-sub connectors for reliable signal transmission
• Cable Terminated: Both ends properly terminated for secure connections

Technical Specifications

• Article Number: 6XV1830-1CH15
• Cable Type: 830-1T PROFIBUS connecting cable
• Cable Length: 1.5 meters
• Connector Type: 2 x D-sub connectors, 9-pole
• Conductor Configuration: 2-core
• Conductor Cross-Section: 2x0.61mm
• Conductor Diameter: 0.61mm
• Conductor Type: Bare copper
• Number of Stranding Elements: 1
• Stranding Element: Pairs
• Outer Diameter: Approximately 5.7mm
• Net Weight: 0.099 kg

Construction Details

• Shielding Type: Foil + braiding over stranding
• Outer Sheath Material: Polyvinyl chloride (PVC)
• Outer Sheath Color: Purple (PROFIBUS standard)
• Core Insulation Material: Polyethylene (PE)
• Core Identification: Color-coded
• Screen Configuration: Screen over stranding with foil and braiding
• Connector Gender: Male D-sub connectors

Operating Parameters

• Operating Temperature: -40°C to +70°C
• Installation Temperature: -40°C to +70°C during assembly/handling
• Minimum Bending Radius: 86mm (moving applications with forced guidance)
• Minimum Bending Radius: 86mm (moving applications/free movement)
• Minimum Bending Radius: 86mm (stationary applications/permanent installation)
• Underground Installation: Not suitable

Applications

• PROFIBUS Networks: Connection of terminal devices to optical network components
• OLM Connections: Linking terminal equipment to Optical Link Modules
• OBT Connections: Connection to Optical Bus Terminals with integrated interfaces
• Industrial Automation: SIMATIC NET PROFIBUS communication systems
• Process Control: Industrial process control and monitoring systems
• Factory Automation: Manufacturing automation and control applications

Connection Benefits

• Plug-and-Play Installation: Pre-assembled connectors eliminate field termination
• Reliable Signal Transmission: Proper shielding ensures signal integrity
• Standard Compliance: Meets PROFIBUS communication standards
• Quality Assurance: Factory-tested for consistent performance
• Time-Saving: Ready-to-install configuration reduces installation time

Compatibility

• System Integration: Compatible with SIMATIC NET PROFIBUS systems
• OLM Integration: Designed for Optical Link Module connections
• OBT Integration: Compatible with Optical Bus Terminal systems
• Terminal Device Connection: Universal connection for PROFIBUS terminal devices
• Communication Protocol: PROFIBUS DP and PROFIBUS PA compatible

Quality & Compliance

• Country of Origin: Germany
• RoHS Compliance: Since 01.04.2007
• Export Control: AL : N / ECCN : N
• EAN: 4019169400756
• UPC: 662643228328
• REACH Compliance: No SVHC substances above 0.1% w/w threshold
• Product Class: B (return restricted)

Packaging Information

• Packaging Dimensions: 21.00 x 24.10 x 2.30 cm
• Quantity Unit: 1 piece
• Packaging Quantity: 1 piece

Installation Notes

• Connector Orientation: Ensure proper connector alignment during installation
• Cable Routing: Observe minimum bending radius requirements
• Environmental Considerations: Suitable for indoor industrial environments
• Termination: Both ends factory-terminated with D-sub connectors
• Testing: Pre-tested for electrical continuity and signal integrity

Environmental Specifications

• Fire Behavior: PVC outer sheath provides flame resistance
• Chemical Resistance: Suitable for standard industrial environments
• Moisture Resistance: PVC sheath provides moisture protection
• UV Resistance: Suitable for indoor applications
• Temperature Stability: Maintains performance across operating temperature range
