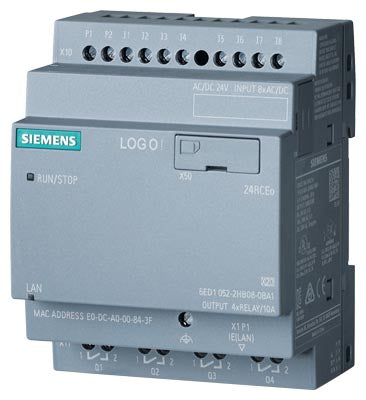

Siemens PLC Module w/o display, Ethernet port, 24V PS, 8DI, 4DO relay Part number 6ED1052-2HB08-0BA2

Product Overview

The Siemens 6ED1052-2HB08-0BA2 is a LOGO! 24 RCEo logic module offering 8 digital inputs and 4 relay outputs (8 DI/4 DO) with 400 programming blocks. Designed for control and automation tasks, it supports 24 V DC/24 V AC power supply, Ethernet programming, and modular expansion in compact installations.

Key Features

• Logic module from the Siemens LOGO! series
• 8 digital inputs for versatile sensor or signal integration
• 4 relay outputs (DO) for switching actuators or loads
• 400 function blocks capacity for customised logic programming
• Compact DIN-rail mounting; modularly expandable for scalable solutions
• 24 V DC/24 V AC supply voltage for flexible installation
• Ethernet connectivity for configuration and network integration

Technical Specifications

• Product Series: LOGO! 24 RCEo
• Article Number: 6ED1052-2HB08-0BA2
• Digital Inputs: 8 channels
• Relay Outputs: 4 channels
• Programming Blocks: 400 blocks
• Supply Voltage: 24 V DC or 24 V AC
• Mounting: DIN-rail installation
• Width: approx. 71.5 mm (4 modules equivalent)
• Ambient Operating Temperature: –20 °C … +55 °C

Compliance & Certifications

• Manufactured by Siemens as part of the LOGO! automation product line
• Conforms to industrial standards for programmable logic modules and relay output devices
• Designed for reliable use in machine control, building automation and similar applications

Applications

Ideal for compact control applications including machine automation, building services, conveyor systems, and pump control. The module provides logic control, signal processing and output switching in installations requiring customised automation with Ethernet connectivity and easy expandability.
