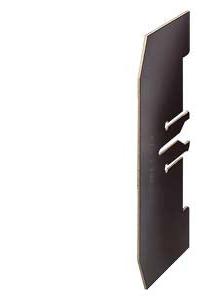

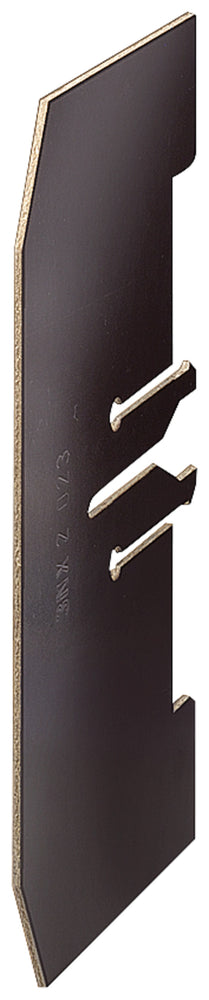

Siemens Phase/end barrier for LV HRC base, size 0

Product Overview

Essential safety component designed for LV HRC fuse base installations in Size 0 configurations. This phase/end barrier provides critical electrical isolation and enhanced safety protection for low voltage high rupture capacity fuse systems. As part of the SENTRON protective component family, this barrier ensures reliable separation between phases and provides protection for personnel, equipment, and installations by preventing accidental contact and maintaining proper electrical clearances.

Key Features

• Size 0 Compatibility: Specifically designed for LV HRC fuse base Size 0 applications
• Safety Enhancement: Provides essential electrical isolation and contact protection
• Professional Installation: Engineered for secure mounting on LV HRC fuse bases
• Compact Design: Space-efficient solution for electrical panel installations
• Reliable Performance: Ensures consistent protection and operational safety

Technical Specifications

• Application: Phase/end barrier for LV HRC base Size 0
• Net Weight: 0.039 kg
• Packaging Dimensions: 220 x 160 x 5 mm
• Country of Origin: Germany
• EAN: 4001869020884
• UPC: 754554357973

Applications

Ideal for use with SENTRON 3NA and 3ND LV HRC fuse systems in:

• Industrial electrical panels and switchgear
• Distribution boards and control cabinets
• Building electrical infrastructure
• Plant and equipment protection systems
• Selective line protection installations

Safety & Protection

This barrier component enhances safety by providing proper phase separation and end protection for LV HRC fuse installations. It prevents accidental contact with live parts and maintains required electrical clearances according to safety standards, contributing to overall system reliability and personnel protection.

Compliance & Certifications

• RoHS Compliant: Meets substance restriction requirements
• Export Control: AL: N / ECCN: N
• REACH Regulation: Compliant with current substance restrictions
• Product Class: B - Return restricted, contact Siemens partner for details

Product Classification

• Product Lifecycle: PM400 - Announcement of product phase-out
• eClass: 27-14-21-92
• ETIM: EC001660
• UNSPSC: 39-12-16-17

Packaging Information

• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Package Size Unit: MM
• Net Weight: 0.039 kg

Environmental Information

This product is manufactured in Germany in compliance with environmental regulations. WEEE take-back obligation does not apply to this product. The lightweight design and compact packaging minimize environmental impact during transportation and installation.

Download existing graphical data for this product:

Technical documentation and resources are available through Siemens official channels:

• Product Datasheet (PDF)
• LV HRC Fuse Bases and Accessories Product Line
• SENTRON 3NA, 3ND LV HRC Fuse Systems
• LV HRC Fuses: DIN Type Technical Documentation
• Fuse Systems Operating Manual

For additional technical support and product alternatives, please visit the Siemens Industry Online Support portal or contact www.siemens.com/lowvoltage/contact for successor product information.
