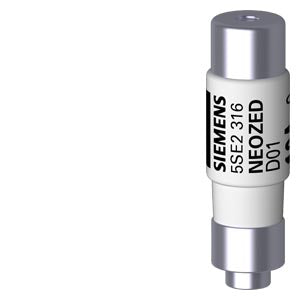

Siemens Neozed fuse-link, tin-coated contact-cap, 16A Part number 5SE2316

Product Overview

SKU 5SE2316 - NEOZED fuse-link, D01, 16 A, gG, Un AC: 400 V, Un DC: 250 V, with tin-coated contact-caps. This Siemens NEOZED fuse link provides reliable overcurrent protection for electrical installations and delivers effective protection against overload and short circuits.

Key Features & Specifications

• Electrical Ratings: 16A rated current, 400V AC / 250V DC rated voltage
• Size: D01 (NEOZED size classification) - compact bottle fuse design
• Operating Class: gG (general-purpose circuit protection) / gL (full-range line protection)
• Breaking Capacity: 50kA at 400V AC, 8kA at 250V DC for enhanced electrical safety
• Contact Caps: Tin-coated for reliable electrical connection and corrosion resistance
• Material: High-quality ceramic construction for excellent thermal and arc protection
• Protection Rating: Touch-proof design for safe operation

Performance Characteristics

• Temperature Range: -5°C to +40°C operating temperature
• Color Code: Gray for easy identification and visual coding
• High Breaking Capacity: Full-range breaking capacity suitable for general applications
• Compact Design: D01 bottle fuse size ideal for installations with limited space
• Reliable Protection: Sacrificial element protects electrical equipment from current surges

Physical Specifications

• Net Weight: 0.007 kg (7g ultralight design)
• Packaging Dimension: 23.00 x 57.00 x 39.00 mm
• Packaging Quantity: 1 Piece

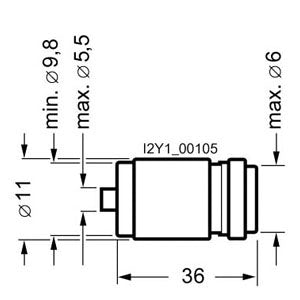

• Dimensions: 0.4" H x 1.0" L x 0.55" W

Standards Compliance

• DIN VDE 0636-301
• IEC 60269-3-1 (IEC 269)
• HD 630.3.1 S3
• DIN VDE 0680
• DIN VDE 0636

Applications

• Cable and line protection in electrical installations
• Home appliances and domestic electrical systems
• Plant machinery and industrial equipment
• Industrial switchgear assemblies
• Distribution technology applications
• Supplementary protection in electrical circuits
• General-purpose circuit protection

System Benefits

Part of the SENTRON protective components for electrical installations, offering:

• Effective device and system protection through reliable shutdown
• Enhanced safety in overload and short circuit conditions
• Compatible with matching fuse sockets and screw adapters
• Suitable for operation by laypeople and approved for domestic installation
• Easy individual extraction from packaging

Additional Information

• Country of Origin: Poland
• EAN: 4001869005966
• Article Number: 5SE2316
• RoHS Compliance: Since: 01.06.2006
• WEEE Take-Back Obligation: Yes

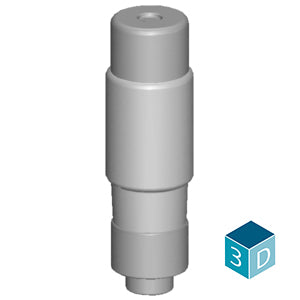

Download existing graphical data for this product:
