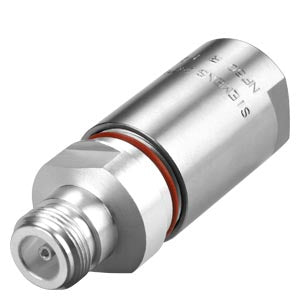

Siemens N-connector, female, 2.4 and 5 GHz
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
The RCoax N-Connect female connector is a field-assemblable N-connector for 2.4 GHz and 5 GHz wireless applications. This connector serves as a connection piece for RCoax cables in Industrial Wireless LAN (IWLAN) networks and SCALANCE W systems, enabling on-site assembly and integration of additional components.
Key Features & Technical Specifications
Field-Assemblable Design
- N-Connect female connector with field termination capability
- Net Weight: 0.140 kg
- Compact, durable connector housing
- Frequency Range: 2.4 GHz and 5 GHz
- Impedance: 50 Ohm (typical)
Industrial Applications
- Compatible with SIMATIC NET IWLAN components and SCALANCE W wireless access points
- Integrates with RCoax cable systems for antenna and RF component connections
- Suitable for industrial automation wireless communication
- Enables flexible system configuration and on-site customization
Compliance & Standards
- RoHS Compliant (since October 1, 2009)
- Country of origin: China
- Professional-grade RF connector standards
Product Identification
- Article Number: 6GK5798-0CN00-0AA0
- EAN: 4018359303075
- UPC: 662643298079
REACH Compliance Information This product contains Lead in concentrations higher than 0.1% w/w. Based on current information, these substances do not pose risks when the product is used as intended, including disposal.
Export Control Information
- Export Control: AL: N / ECCN: N
Download existing graphical data for this product:
Additional Information
| IP Rating | IP67 |

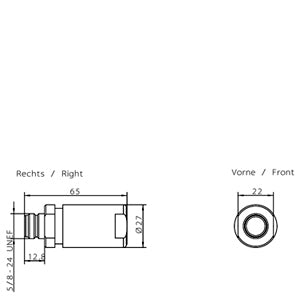

| IP Rating Detailed | IP67 design, dimensions and weights diameter 27 mm length 65 mm net weight 159 g standards, specifications, approvals certificate of suitability RoHS conformity Yes further information |
| Part Width (mm) | 1,00mm |
| Part Height (mm) | 1,00mm |
| Part Depth (mm) | 1,00mm |
| Weight (g) | 0,140 Kg |
| description | RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components. |
| country_of_origin | China |
Technical Documentation & Downloads
Videos & Interactive Media
Product Media
Add Siemens videos or media manifest entries to showcase this product.
Interactive 3D CAD Model
🛠 Siemens 3D CAD Viewer Interactive
Tip: Use your mouse to rotate, zoom, and pan the 3D model. Click "Open Full Screen" for additional download options including STEP, DWG, 3DS, and other CAD formats.
