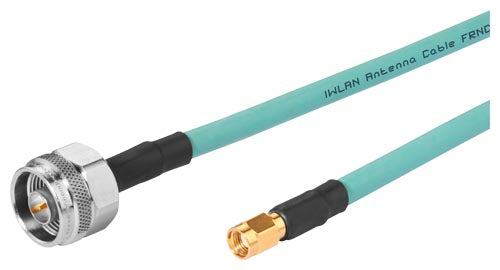

Siemens N-Connect/ R-SMA male/male connection cable, 1m Part number 6XV1875-5CH10

Product Overview

The Siemens 6XV1875-5CH10 is a flexible, pre-assembled connection cable for antenna / wireless communication systems — specifically an N-Connect / R-SMA male-to-male cable, 1 m in length. It is intended for connecting antennas (e.g. WLAN or other radio modules) to access points or wireless devices, offering robust RF-capable cabling rather than a traditional data-bus connector for PROFIBUS/RS-485.

Key Features

• Pre-assembled connection cable (N-Connect / R-SMA male ↔ male)
• Length: 1 metre
• Suited for RF / antenna / wireless data transmission applications
• Cable construction with braided shield for reliable signal integrity and EMC protection
• Rated characteristic impedance 50 Ω — typical for antenna/coaxial configurations
• Wide frequency support range, suitable for common wireless frequencies (up to GHz range, as per antenna cable specification)
• Compact, flexible design — easy to route in cabinets or enclosures

Technical Specifications

• Article Number: 6XV1875-5CH10
• Cable Type: N-Connect / R-SMA male-to-male antenna cable
• Length: 1 m
• Impedance: 50 Ω
• Shielding: Braided shield (tinned copper wires)
• Frequency Range: DC … several GHz (suitable for typical WLAN / radio frequencies) — depends on connected antenna/module
• Use Case: RF signal transfer (antenna ↔ wireless module / access point)
• Connector Ends: R-SMA male on both ends (female-to-female link if matching module has female R-SMA)

Applications

This cable is used when you need to connect an antenna to a wireless communication module — for example a WLAN access point, industrial wireless module, or other radio-based device — where a coaxial, RF-capable cable is required. It is **not** a PROFIBUS/RS-485 data-bus connector. Typical use cases include industrial wireless networks, remote monitoring units with external antennas, mobile radio systems, or any installation requiring a robust R-SMA-terminated antenna cable.
