Product Overview

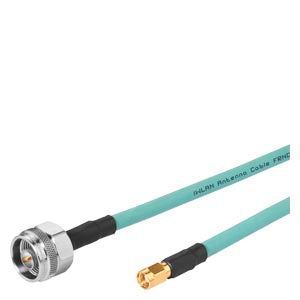

N-Connect/ R-SMA male/male flexible connection cable pre-assembled, Length 5 m flexible connecting cable Access point antenna (RCoax and others). High-performance RF connection cable designed for IWLAN applications, providing reliable connections between wireless access points and external antennas including RCoax systems. Features low attenuation characteristics and professional-grade construction for demanding wireless networking applications.

Key Features

Connector Configuration:

• N-Connect to R-SMA: N-Connect connector to reverse-polarity SMA male connector
• Male/Male Configuration: Both ends terminated with male connectors
• Pre-assembled: Factory-terminated for reliable connections
• 5 Meter Length: Extended length for flexible installation options

RF Performance:

• 50 Ohm Impedance: Standard 50 ohm characteristic impedance
• Low Attenuation: Minimal signal loss over cable length
• High-Quality Signal: Maintains RF signal integrity
• Broadband Performance: Suitable for IWLAN frequency ranges

Construction:

• Flexible Design: Flexible cable for easy routing and installation
• Industrial Grade: Built for demanding industrial environments
• Chemical Resistance: Resistant to industrial chemicals and solvents
• Flame Protection: Flame-resistant construction for safety

Technical Specifications

Electrical Characteristics:

• Impedance: 50 Ohm
• Cable Length: 5 meters
• Connector Type 1: N-Connect male
• Connector Type 2: R-SMA (Reverse-polarity SMA) male
• Attenuation: Low loss design for optimal signal transmission

Physical Characteristics:

• Cable Type: Flexible RF cable
• Net Weight: 0.420 kg
• Conductor Diameter: 1.4 mm
• Conductor Surface: Bare copper
• Screening: Shielded construction

Mechanical Properties:

• Bend Radius (Stationary): 45 mm minimum
• Bend Radius (Moving): 45 mm minimum
• Flexibility: Suitable for dynamic applications
• Durability: Industrial-grade construction

Environmental Specifications:

• Temperature Range: Industrial temperature range
• Chemical Resistance: Resistant to industrial chemicals
• Flame Protection: Flame-resistant construction
• Silicone-Free: Suitable for automotive and sensitive applications

Standards and Compliance:

• RoHS Compliance: Yes, since 01.10.2006
• WEEE Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N
• Country of Origin: Slovakia

Product Information:

• EAN: 4018359197698
• UPC: 662643297799
• Net Weight: 0.420 kg
• Packaging Quantity: 1 piece

Applications

The IWLAN antenna connection cable is ideal for:

• IWLAN Access Points: Connecting external antennas to wireless access points
• RCoax Systems: Integration with RCoax distributed antenna systems
• Industrial Wireless Networks: RF connections in harsh industrial environments
• Mobile Radio Systems: Antenna connections for mobile communication devices
• Outdoor Installations: Weather-resistant antenna connections
• Long-Distance Connections: Extended antenna placement applications
• PROFINET Wireless: Wireless PROFINET network installations

IWLAN System Integration

Compatible Applications:

• RCoax Systems: Distributed antenna systems for extended coverage
• Access Point Antennas: External antenna connections for wireless access points
• PROFINET Wireless: Industrial wireless networking applications
• Mobile Radio: Mobile communication antenna connections

System Components:

• IWLAN Access Points: Wireless access point connectivity
• RCoax Cables: Integration with RCoax distributed antenna systems
• External Antennas: Connection to various antenna types
• Wireless Modules: Integration with wireless communication modules

Installation Benefits

Extended Reach:

• 5 Meter Length: Provides flexibility for antenna placement
• Flexible Cable: Easy routing through industrial environments
• Pre-assembled: No field termination required
• Professional Quality: Factory-terminated connections

System Advantages:

• Low Signal Loss: Minimal attenuation preserves signal quality
• Reliable Connection: Secure, vibration-resistant connectors
• Industrial Grade: Built for harsh industrial environments
• Chemical Resistant: Withstands exposure to industrial chemicals

Performance Advantages

Signal Quality:

• Low Attenuation: Preserves signal strength over 5-meter length
• Impedance Matched: 50 ohm impedance for optimal signal transfer
• Minimal Reflection: Proper impedance matching reduces signal reflection
• Broadband Performance: Suitable for IWLAN frequency ranges

Reliability:

• Industrial Construction: Built for demanding industrial environments
• Flame Resistant: Enhanced safety in industrial applications
• Chemical Resistant: Withstands exposure to industrial chemicals
• Long Service Life: Durable construction reduces replacement needs

IWLAN Network Benefits

Wireless Coverage:

• Extended Range: 5-meter cable allows optimal antenna placement
• Flexible Positioning: Optimal antenna positioning for coverage
• Reduced Signal Loss: Low-loss cable maintains signal quality
• Professional Installation: Pre-assembled for consistent results

System Reliability:

• Industrial Grade: Built for harsh industrial environments
• Secure Connections: Vibration-resistant threaded connectors
• Weather Resistant: Suitable for outdoor installations
• Maintenance-Free: Long-life design reduces maintenance requirements

Available Cable Lengths

Length Options:

• 0.3 Meter: Ultra-short connections (6XV1875-5CH03)
• 1 Meter: Short connections (6XV1875-5CH10)
• 2 Meter: Standard connections (6XV1875-5CH20)
• 5 Meter: Extended connections (6XV1875-5CH50) - Current product
• 10 Meter: Long-distance connections (6XV1875-5CH100)

Quality Assurance

Manufacturing Standards:

• Professional Grade: Industrial-quality materials and construction
• Quality Control: Rigorous testing and inspection processes
• Consistent Performance: Reliable electrical and mechanical characteristics
• Factory Termination: Precise connector installation

Testing and Validation:

• RF Performance: Electrical performance validation
• Mechanical Testing: Connector durability and reliability
• Environmental Testing: Performance under industrial conditions
• Quality Assurance: Comprehensive quality control processes

System Design Considerations

Installation Planning:

• Cable Routing: Plan cable paths to minimize bend radius violations
• Connector Protection: Protect connectors from environmental exposure
• Signal Loss Budget: Account for cable attenuation in system design
• Mechanical Stress: Avoid excessive tension on cable connections

Performance Optimization:

• Proper Termination: Ensure secure connector installation
• Impedance Matching: Maintain 50 ohm system impedance
• Minimize Reflections: Avoid impedance mismatches
• Environmental Protection: Protect connections from moisture and contaminants

REACH Compliance Notice

This product contains Lead in concentrations higher than 0.1% weight by weight (w/w) as per REACH Article 33 duty to inform. Based on available information, this substance does not pose risk when the product is used as intended, including disposal. Please refer to product documentation for additional safety information.

Download existing graphical data for this product:

• Product Information and Technical Data
• IWLAN Cabling Technology Family
• IWLAN Configuration with RCoax Cable
• IWLAN RCoax Cable Documentation
• Product Datasheet
