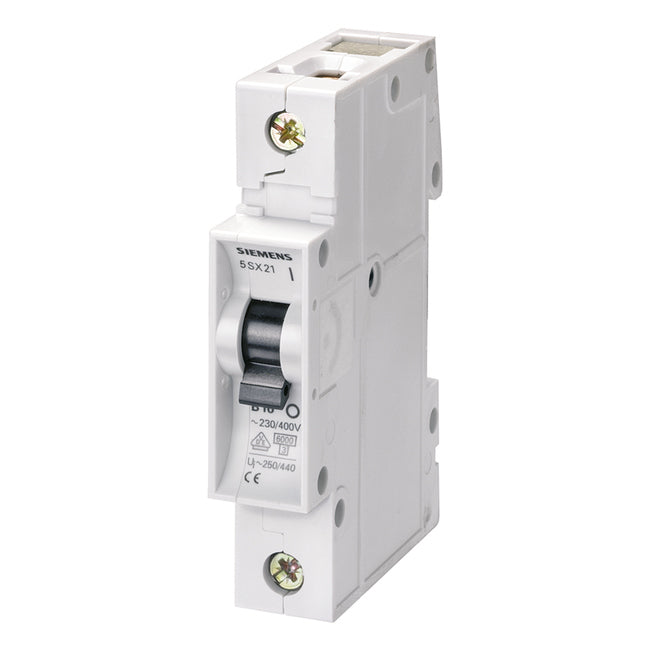

Siemens Miniature circuit breaker, 1-pole, 6kA, 6A

Product Overview

The Siemens 5SX2106-6 is a compact miniature circuit breaker designed for reliable electrical protection in low-current single-phase applications. This compact 1-pole circuit breaker features a 6 A current rating with 230/400 V operational voltage and 6 kA breaking capacity, making it ideal for protecting low-current single-phase electrical circuits, residential installations, and electronic equipment from overloads and short circuits.

Key Features

• 6 kA Breaking Capacity: Reliable protection against fault currents for residential and light commercial installations
• Single-Pole Configuration: Space-efficient solution for single-phase line protection in distribution panels
• B-Type Characteristic: Optimized for residential applications with low inrush currents (3-5 times rated current)
• Low Current Rating: 6 A rating perfect for residential circuits, electronic equipment, and control systems
• Compact T55 Design: Space-efficient construction suitable for standard DIN rail mounting (D=55 mm)
• European Engineering: Manufactured in Romania ensuring reliable quality and performance
• UL1077 Recognition: Certified as supplementary protector for enhanced circuit protection
• Tool-Free Installation: Standard DIN rail mounting for quick and easy installation

Technical Specifications

• Current Rating: 6 A
• Voltage Rating: 230/400 V AC
• Breaking Capacity: 6 kA
• Number of Poles: 1
• Trip Characteristic: B-type (3-5 times rated current)
• Net Weight: 0.137 kg
• Depth: 55 mm (T55)
• Width: 1 modular spacing (18 mm)
• Packaging Dimensions: 23.00 x 93.00 x 67.00 mm
• Country of Origin: Romania
• EAN: 4001869030845

Applications

This low-current 1-pole circuit breaker is particularly suitable for:

• Residential lighting circuits
• Computer and electronic equipment protection
• Small appliance circuits
• Control system protection
• Building automation systems
• Security system circuits
• Communication equipment protection
• Audio/visual equipment circuits
• Office equipment protection
• Small motor applications
• Instrumentation circuits
• Emergency lighting systems
• Low-power heating elements
• Sensor and monitoring circuits
• Laboratory equipment protection

Compliance & Certifications

• Standards Compliance: UL1077 recognized, IEC 60898-1/-2, IEC 60947-2
• CE Marking: Complies with global standards for European markets
• RoHS Compliance: Compliant since January 1, 2006
• WEEE Directive: Not subject to take-back obligations
• REACH Regulation: Currently no SVHC substances identified above 0.1% w/w threshold
• Export Control: AL: N / ECCN: EAR99
• Product Class: B - Return restricted, contact Siemens partner for returns

Advanced Features

• Residential Protection: B-curve specifically designed for residential and computer equipment protection
• Visual Status Indication: Clear position indicators for operational status
• Touch Protection: Anti-finger contact terminal design for enhanced safety
• Enhanced Safety: Insulated and dust-proof design
• Ergonomic Handle: Comfortable operation for manual switching
• Modular Compatibility: Compatible with standard DIN rail systems
• Energy Limitation: Current limiting for enhanced circuit protection
• Wide Conductor Range: Accommodates various conductor cross-sections

Product Classification

• Product Group: 5529
• Group Code: P310
