Product Overview

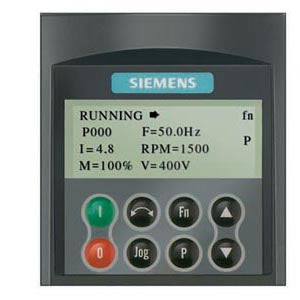

MICROMASTER 4 Cyrillic AOP Advanced Operator Panel (CAOP) with multi-language display featuring Cyrillic, German, and English language support. Advanced control interface designed for efficient management of MICROMASTER 4 parameter kits with MM420 and MM440 AC drives. Spare part for legacy systems. Article Number: 6SE6400-0AP00-0CA0.

Key Specifications

Display & Language Features:

• Plain text Advanced Operator Panel with multi-language display
• Cyrillic character support for Russian and Eastern European markets
• German and English language options
• Enhanced readability with clear text display
• User-friendly interface for parameter management

System Compatibility:

• Compatible with MICROMASTER 420 series inverters
• Compatible with MICROMASTER 440 series inverters
• Designed for MICROMASTER 4 parameter kit management
• Enables reading and modification of parameter settings
• Streamlines operational adjustments and configurations

Advanced Functions:

• Communication via RS-232 interface
• Expanded language facility with Cyrillic support
• Diagnostic menu and fault finding assistance
• Values displayed (speed, frequency, torque)
• Capacity to store and download up to 10 parameter sets
• Digital and analog input monitoring
• Serial link via USS Protocol support
• Comprehensive parameter access and modification

Physical Specifications

• Dimensions: 80 × 110 × 40 mm
• Net weight: 0.3 kg
• Mounting: Control cabinet door mounting available
• Connection: Direct interface to inverter
• Installation: Snap-on or panel mounting options

Product Identifiers

• EAN: 4019169456784
• UPC: 887621884116
• Country of origin: Great Britain

Compliance Information

• RoHS compliant since: 01.07.2006
• WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information

There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings became available.

Important Notes

• Spare part only - This product is a spare part for legacy systems
• Product status: Cancelled since 01.10.2019
• For assistance, contact your local Siemens office
• Specialized version with Cyrillic language support
• Essential for Russian and Eastern European markets
• Enhanced functionality compared to Basic Operator Panel (BOP)

Functionality

Parameter Management:

• Comprehensive parameter access and modification
• Parameter storage and download capabilities
• Real-time parameter monitoring
• System configuration optimization
• Troubleshooting and diagnostic functions

Language Support:

• Cyrillic script for Russian markets
• German language interface
• English language interface
• Multi-language switching capability
• Localized user experience

Communication Features:

• RS-232 interface for PC connection
• USS Protocol serial communication
• PROFIBUS integration capability
• Parameter backup and restore
• System diagnostic information

Applications

• MICROMASTER 420 series drive systems (Russian/Eastern European markets)
• MICROMASTER 440 series drive systems (Russian/Eastern European markets)
• Industrial automation in Cyrillic-speaking regions
• Motor control systems requiring multi-language support
• Variable frequency drive installations
• System commissioning and parameter setup
• Maintenance and troubleshooting operations
