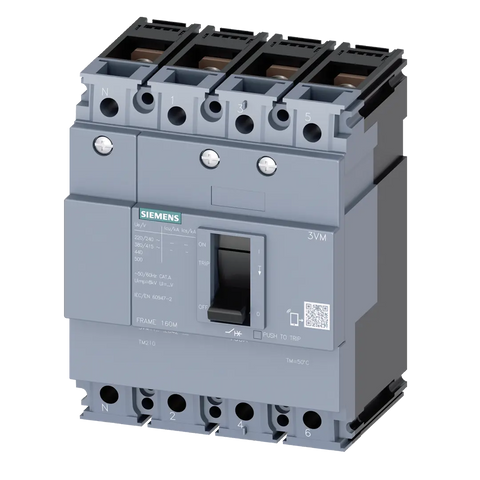

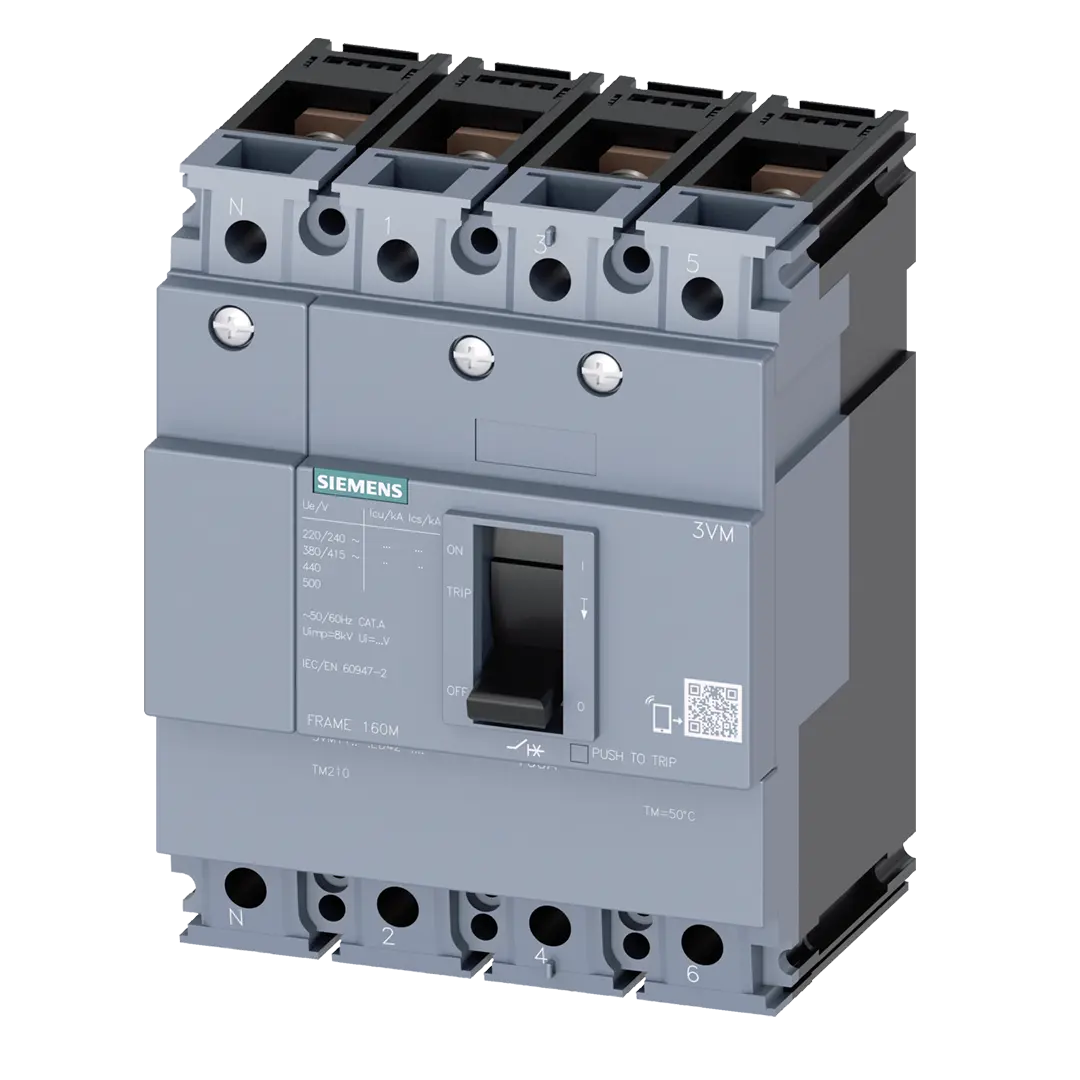

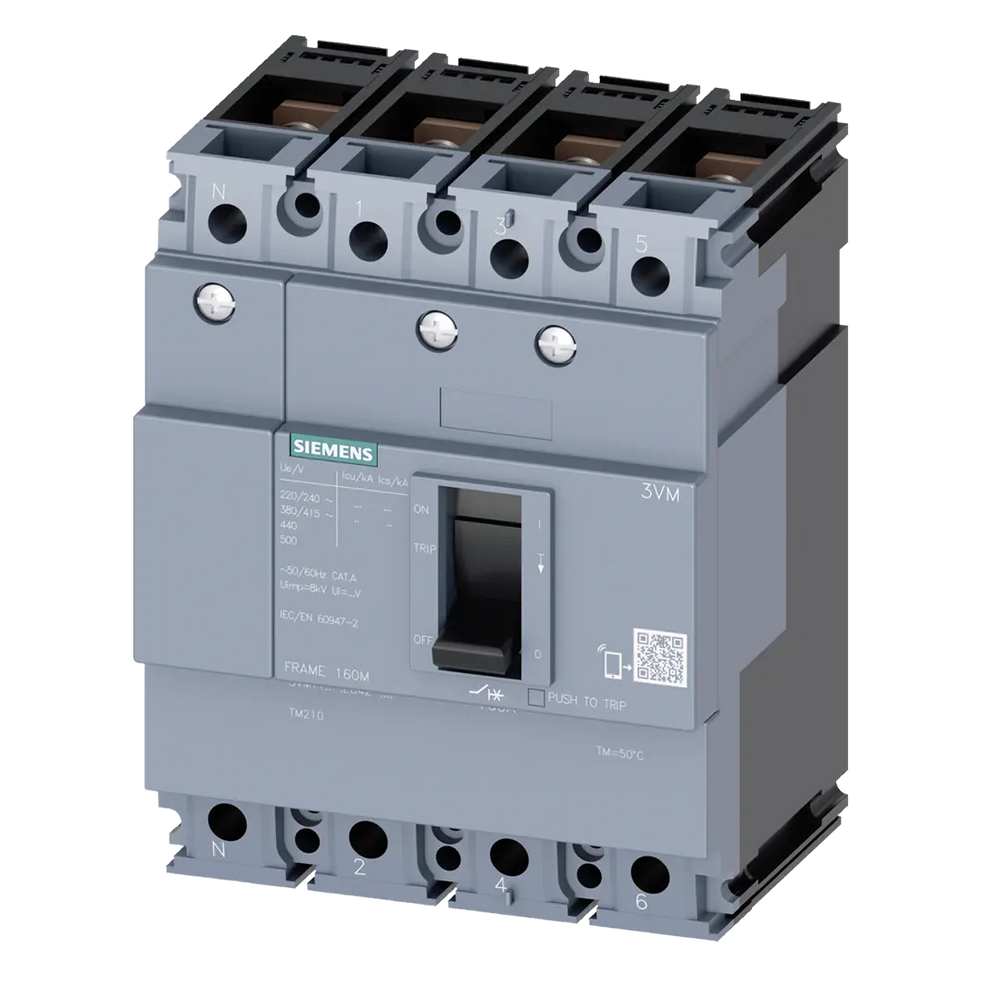

Siemens MCCB, frame size 100, 4-pole, 100A, 16kA Part number 3VM1110-3ED42-0AA0
Back Order
View Full Product Details on Siemens
💬
Ask an Expert - Technical Support Available
✓ RoHS Certified
Product Description
Product Overview
SKU 3VM1110-3ED42-0AA0 - SENTRON 3VM molded case circuit breaker, 4-pole configuration with thermal-magnetic trip unit TM210 FTFM. This Siemens SENTRON circuit breaker provides reliable overcurrent protection for electrical distribution systems and industrial applications.
Key Features & Specifications
- Rated Current: 100A continuous current rating
- Poles: 4-pole (4P3d) configuration
- Frame Size: 160A frame rating
- Rated Operating Voltage: Up to 690V AC
- Rated Insulation Voltage: 800V
- Rated Impulse Voltage: 8kV
- Trip Unit: TM210 FTFM thermal-magnetic fixed trip unit
Performance Characteristics
- Breaking Capacity: High short-circuit breaking capacity for reliable protection
- Thermal Protection: Overload protection with fixed tripping threshold at 100A
- Magnetic Protection: Short-circuit protection with pickup current at 10 x In (1000A)
- Trip Characteristics: Fixed thermal-magnetic operation for consistent performance
- Multi-Pole Design: 4-pole configuration for comprehensive circuit protection
Electrical Specifications
-
Ultimate Short Circuit Breaking Capacity (Icu):
- Class "N" performance rating
- 25kA at 380-415V AC
- 36kA at 220-240V AC
- 16kA at 440V AC
- 5kA at 690V AC
- Service Short Circuit Breaking Capacity (Ics): Equivalent to Icu ratings
- DC Breaking Capacity: Available for DC applications with appropriate pole combinations
Connection & Installation
- Connection Type: Lug/bar connections for flexible installation
- Terminal Configuration: Screw-type terminals for secure connections
- Mounting: Standard DIN rail or panel mounting options
- Wire Range: Accommodates various conductor sizes for different applications
Protection Functions
- Overload Protection: Thermal protection against sustained overcurrent conditions
- Short-Circuit Protection: Magnetic protection against fault currents
- Line Protection: Comprehensive protection for electrical distribution circuits
- Fixed Settings: TM210 FTFM provides fixed protection settings for simplified application
Applications
- Industrial Distribution: Main and feeder protection in industrial facilities
- Commercial Buildings: Power distribution in commercial installations
- Motor Control Centers: Protection for motor control and distribution panels
- Switchgear Applications: Integration in low-voltage switchgear assemblies
- Process Industries: Reliable protection in process control environments
- Infrastructure Projects: Power distribution protection in infrastructure applications
System Benefits
Part of the SENTRON 3VM molded case circuit breaker family, offering:
- Reliable overcurrent protection for electrical systems
- Fixed thermal-magnetic trip characteristics for consistent operation
- High breaking capacity for demanding applications
- Professional-grade construction for industrial environments
- Compliance with international electrical standards
Technical Advantages
- IEC Standards Compliance: Designed to meet international electrical standards
- Fixed Trip Settings: TM210 FTFM eliminates adjustment complexity
- High Breaking Capacity: Capable of interrupting high fault currents
- Multi-Pole Protection: 4-pole design provides comprehensive protection
- Robust Construction: Industrial-grade design for reliable long-term operation
- Versatile Connections: Flexible connection options for various installations
Standards Compliance
- IEC 60947-2 (Low-voltage switchgear and controlgear)
- International electrical safety standards
- Industrial automation and control system standards
- Environmental and safety certifications
Operating Conditions
- Operating Temperature: Standard industrial temperature range
- Environmental Protection: Suitable for indoor industrial environments
- Mechanical Endurance: High mechanical life for frequent switching operations
- Electrical Endurance: Long electrical life under normal operating conditions

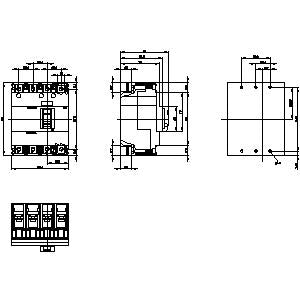

Download existing graphical data for this product:
Technical Specifications
| Adjustment range undelayed short-circuit release | 1000 A |
| Complete device with protection unit | Yes |
| Degree of protection (IP) | IP40 |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | Yes |
| Integrated earth fault protection | No |
| Motor drive integrated | No |
| Motor drive optional | No |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of poles | 4 |
| Overload release current setting | 100 A |
| Position of connection for main current circuit | Front side |
| Power loss | 25 W |
| Rated permanent current Iu | 100 A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 25 kA |
| Rated voltage | 690 V |
| Suitable for DIN rail (top hat rail) mounting | No |
| Type of control element | Rocker lever |
| Type of electrical connection of main circuit | Screw connection |
| With integrated under voltage release | No |
| With switched-off indicator | No |
Technical Documentation & Downloads
Data Sheet
Complete technical specifications (PDF)
Brochure / Catalog
Product brochure and catalog information
Manual / Catalog Page
Installation and operation guide

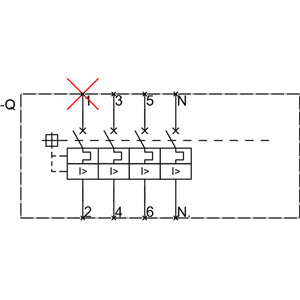

Circuit Diagram
