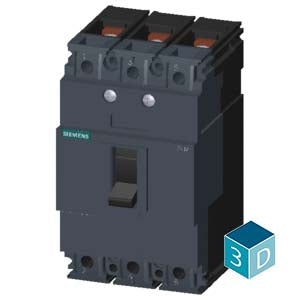

Siemens MCCB, frame size 100, 3-pole, 63A, 16kA Part number 3VM1063-2ED32-0AA0

Product Overview

The Siemens 3VM1063-2ED32-0AA0 is a high-performance molded case circuit breaker designed for reliable electrical protection in industrial and commercial applications. This robust 3-pole circuit breaker features a 63 A current rating with 690 V operational voltage and 16 kA breaking capacity at 415V, making it ideal for protecting medium-current three-phase electrical circuits, motor control centers, and distribution panels from overloads and short circuits.

Key Features

• Enhanced 16 kA Breaking Capacity: Class B breaking performance at 415V for reliable fault current interruption
• 3-Pole Configuration: Comprehensive protection for three-phase systems with simultaneous disconnection
• Fixed Thermal-Magnetic Trip Unit: TM210 FTFM provides reliable, non-adjustable protection settings
• Medium Current Rating: 63 A rating perfect for industrial distribution, motor circuits, and medium power feeders
• IEC Frame 100 Design: Compact construction suitable for space-constrained industrial environments
• Chinese Manufacturing: Cost-effective production maintaining Siemens quality standards
• Nut Keeper Kit Connection: Secure lug/bar connection system for reliable electrical contact

Technical Specifications

• Current Rating: 63 A (In=63A)
• Voltage Rating: 690 V AC (Ue)
• Breaking Capacity: 16 kA at 415V (Icu Class B)
• Number of Poles: 3 (3P3d)
• Trip Unit: TM210 FTFM (Fixed Thermal-Magnetic)
• Frame Size: IEC Frame 100
• Net Weight: 0.856 kg
• Packaging Dimensions: 92.00 x 150.00 x 116.00 mm
• Country of Origin: China
• EAN: 4042948800126

Applications

This medium-current 3-pole circuit breaker is particularly suitable for:

• Industrial distribution panels and motor control centers (MCC)
• Medium power feeder protection and three-phase motor circuits
• Process control systems and manufacturing equipment protection
• Commercial building distribution and infrastructure applications
• Switchgear assemblies and transformer/generator protection systems
• Industrial automation equipment and HVAC system protection

Compliance & Certifications

• Standards Compliance: IEC 60947-2, International electrical safety standards
• Breaking Capacity Class: Class B performance rating
• India Manufacturing Note: Products ordered in India have India origin with CE and EEQCO Scheme-X certifications
• RoHS Compliance: Compliant since June 1, 2012
• REACH Regulation: Contains lead above 0.1% w/w threshold per Article 33
• Product Class: C - Products manufactured to order, non-returnable

Advanced Features

• Fixed Protection Settings: TM210 FTFM eliminates adjustment complexity with 63A thermal protection and 630A magnetic protection (10 x In)
• Class B Breaking Performance: 16 kA interrupting capability for standard industrial fault conditions
• Three-Pole Design: Complete protection for three-phase systems without neutral conductor
• Compact Frame Design: IEC Frame 100 optimized for 63A applications with secure nut keeper kit connections
• Environmental Rating: Suitable for standard industrial environments with pollution degree Class 3

Product Classification

• eClass: 27-37-04-09 (versions 6-14)
• ETIM: EC000228 (versions 7-9)
• UNSPSC: 39-12-16-01
• Product Group: 5377

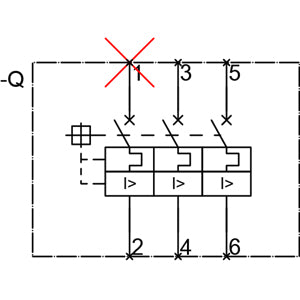

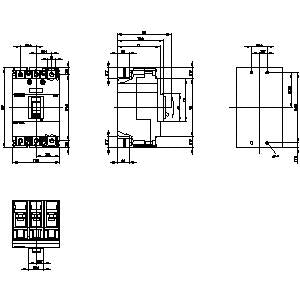

Download existing graphical data for this product:

Product Datasheet (PDF)

Complete Product Information
