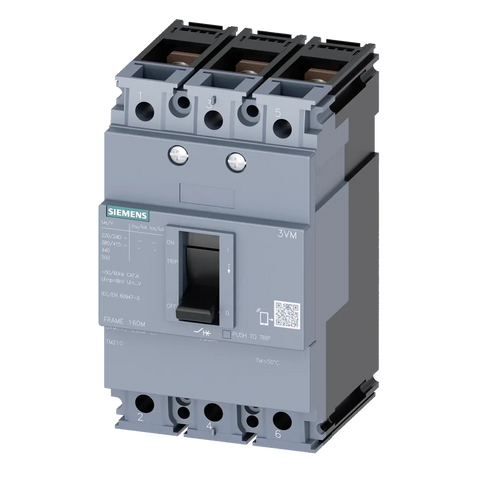

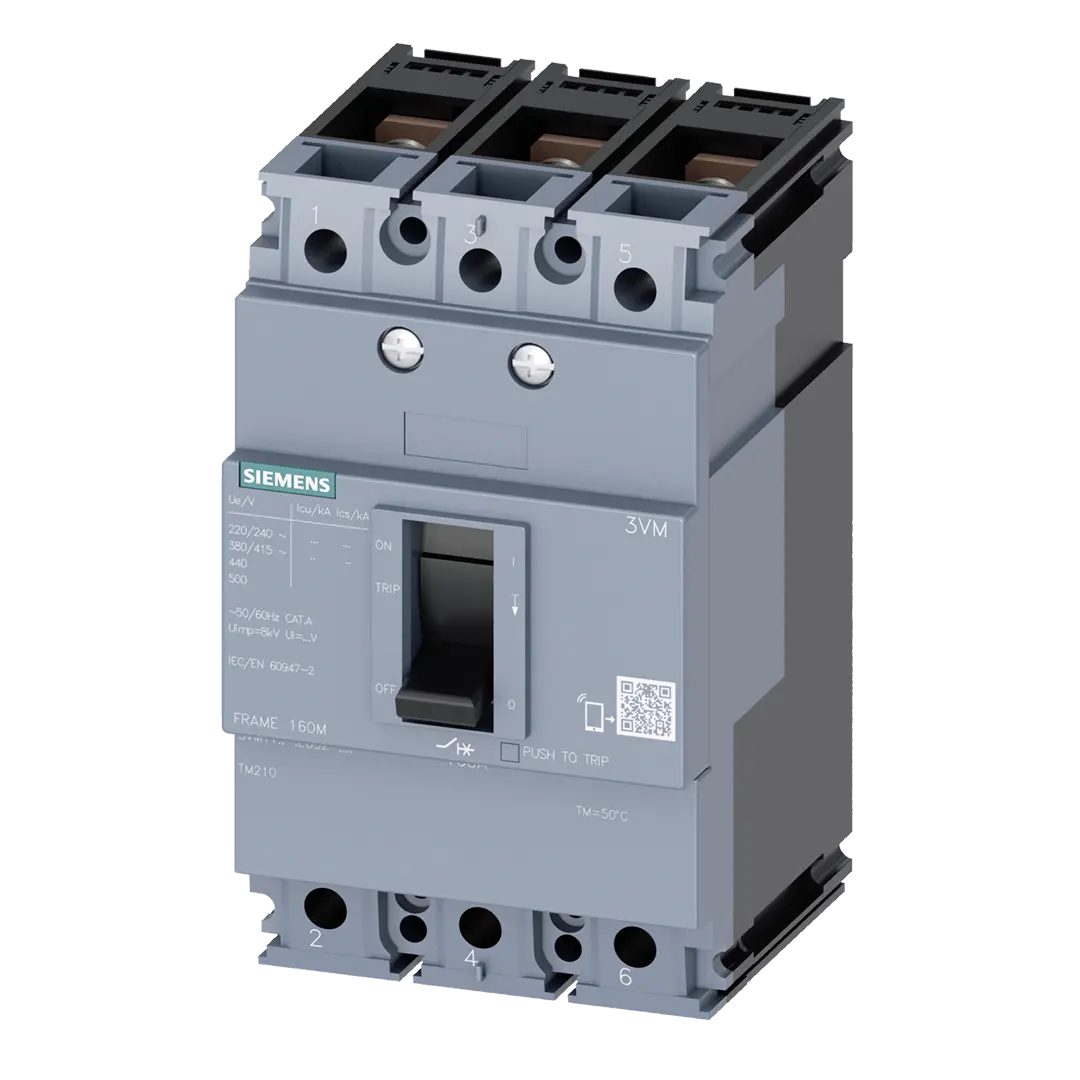

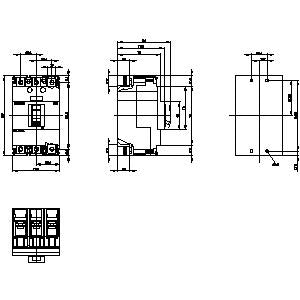

Siemens MCCB, frame size 100, 3-pole, 100A, 16kA

Name: Siemens MCCB, frame size 100, 3-pole, 100A, 16kA
Brand: Siemens
SKU: 3VM1110-3ED32-0AA0

SKU / Article No. 3VM1110-3ED32-0AA0

EAN / Barcode - None -

Product Type Control Panel

Product Class Power circuit-breaker for trafo/generator/installation protection

Back Order

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

The Siemens 3VM1110-3ED32-0AA0 is a high-performance molded case circuit breaker designed for reliable electrical protection in industrial and commercial applications. This robust 3-pole circuit breaker features a 100 A current rating with 690 V operational voltage and enhanced 25 kA breaking capacity at 415V, making it ideal for protecting medium to high-current three-phase electrical circuits, motor control centers, and distribution panels from overloads and short circuits.

Key Features

Enhanced 25 kA Breaking Capacity: Superior protection against fault currents with Class N breaking performance at 415V

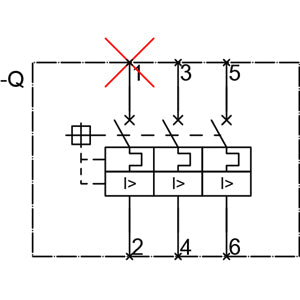

3-Pole Configuration: Provides comprehensive protection for three-phase systems with simultaneous disconnection
Fixed Thermal-Magnetic Trip Unit: TM210 FTFM provides reliable, non-adjustable protection settings
Medium-High Current Rating: 100 A rating perfect for industrial distribution, motor circuits, and power feeders
IEC Frame 160 Design: Robust construction suitable for demanding industrial environments
Chinese Manufacturing: Cost-effective production maintaining Siemens quality standards
IEC 60947-2 Compliance: Certified for low-voltage switchgear and controlgear applications
Nut Keeper Kit Connection: Secure lug/bar connection system for reliable electrical contact

Technical Specifications

Current Rating: 100 A (In=100A)
Voltage Rating: 690 V AC (Ue)
Breaking Capacity: 25 kA at 415V (Icu Class N)
Number of Poles: 3 (3P3d)
Trip Unit: TM210 FTFM (Fixed Thermal-Magnetic)
Frame Size: IEC Frame 160
Net Weight: 0.920 kg
Packaging Dimensions: 92.00 x 150.00 x 116.00 mm
Country of Origin: China
EAN: 4042948810224

Applications

This medium-high current 3-pole circuit breaker is particularly suitable for:

Industrial distribution panels
Motor control centers (MCC)
Power feeder protection
Three-phase motor circuits
Process control systems
Manufacturing equipment protection
Commercial building distribution
Infrastructure applications
Switchgear assemblies
Transformer protection
Generator protection circuits
Industrial automation systems
Heavy machinery protection
Production line equipment
HVAC system protection

Compliance & Certifications

Standards Compliance: IEC 60947-2, International electrical safety standards
Breaking Capacity Class: Class N performance rating
RoHS Compliance: Compliant since June 1, 2012
WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
REACH Regulation: Contains lead above 0.1% w/w threshold per Article 33
Export Control: AL: N / ECCN: N
Product Class: C - Products manufactured to order, non-returnable

Advanced Features

Fixed Protection Settings: TM210 FTFM eliminates adjustment complexity and misapplication risks
High Breaking Performance: 25 kA interrupting capability for demanding fault conditions
Thermal Overload Protection: Fixed tripping threshold at 100A (Ir=100A, not adjustable)
Magnetic Short-Circuit Protection: Instantaneous protection at 10 x In (1000A pickup current)
Multi-Voltage Capability: Suitable for applications up to 690V AC
Robust Construction: IEC Frame 160 design for industrial durability
Secure Connections: Nut keeper kit ensures reliable electrical contact
High Electrical Endurance: 8,000 operations with load capability
Superior Mechanical Life: 15,000 operations at no load
Environmental Rating: Pollution degree 3 for industrial environments

Protection Characteristics

Ultimate Breaking Capacity (Icu): 36kA at 220-240V, 25kA at 380-415V, 16kA at 440V, 5kA at 690V
Service Breaking Capacity (Ics): Equivalent to Icu ratings for reliable service performance
Overload Protection: Thermal protection with fixed 100A tripping threshold
Short-Circuit Protection: Magnetic protection with 1000A pickup current
Line Protection: Comprehensive three-phase circuit protection
Utilization Category: Category A for general industrial applications
