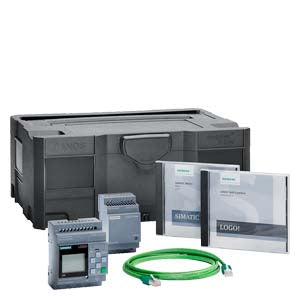

Siemens Logo Starter kit 12/24RCE V8.3 with Logo 12/24RC

Product Overview

The LOGO! starter kit 12/24RCE V8.3 is a comprehensive automation package designed for small-scale industrial and building automation applications. This complete starter kit includes the LOGO! 12/24RCE logic module with integrated display, programming software, power supply, and all necessary accessories in a convenient Systainer case for immediate deployment and learning.

Kit Contents

• LOGO! 12/24RCE Logic Module: Core programmable logic controller with integrated display and Ethernet connectivity
• LOGO! Soft Comfort V8.3: Professional programming software for PC-based development and simulation
• WinCC Basic: Visualization software for creating operator interfaces and monitoring applications
• Power Supply: Dedicated LOGO! Power 24V/1.3A power supply unit for reliable operation
• Screwdriver: Specialized tool for terminal connections and maintenance
• Ethernet Cable: CAT 6 network cable for communication and programming
• Systainer Case: Professional storage and transport case for organized kit management

Key Features

• Compact Design: Ultra-slim 72 mm (4 TE) width for space-efficient control cabinet installation
• Integrated Display: 6-line display with 16 characters per line and 4-color backlight (white, orange, red)
• Ethernet Connectivity: Built-in Ethernet interface for programming, monitoring, and network communication
• Flexible I/O Configuration: 8 digital inputs (4 configurable as analog inputs 0-10V) and 4 relay outputs
• Web Server Integration: Embedded web server for remote monitoring and control via smartphones, tablets, or PCs
• Modular Expandability: Support for expansion modules to increase I/O capacity
• Memory Capacity: 400 function blocks for complex automation applications

Technical Specifications

• Power Supply: 12/24 V DC with wide input tolerance
• Digital Inputs: 8 inputs (12/24 V DC)
• Analog Inputs: 4 inputs (0-10 V DC, shared with digital inputs)
• Digital Outputs: 4 relay outputs (10 A switching capacity)
• Memory: 400 programmable function blocks
• Display: 6 lines x 16 characters with 4-color backlight
• Communication: Ethernet 10/100 Mbps with integrated web server
• Programming: LOGO! Soft Comfort V8.3 with drag-and-drop functionality
• Operating Temperature: -20°C to +55°C (without condensation)
• Installation Width: 72 mm (4 TE modules)
• Net Weight: 2.360 kg (complete kit)
• Packaging Dimensions: 29.60 x 40.00 x 16.70 cm
• Country of Origin: China
• EAN: 4042948793268
• UPC: 804766545641

Programming Capabilities

• User-Friendly Interface: Drag-and-drop programming with function block library
• Simulation Environment: Integrated simulator for testing programs before deployment
• Function Blocks: Comprehensive library including timers, counters, math functions, and logic operations
• Real-Time Clock: Built-in RTC with 20-day backup and automatic daylight saving adjustment
• Data Logging: Support for up to 20,000 data records with microSD card storage
• Network Programming: Remote programming and monitoring via Ethernet connection

Compliance & Certifications

• RoHS Compliance: Compliant with RoHS directive since December 22, 2017
• WEEE Compliance: Subject to WEEE take-back obligations
• Export Control: AL: N / ECCN: EAR99H
• Safety Standards: Designed for industrial automation applications
• Quality Standards: Manufactured to Siemens quality and reliability standards

Web Server Features

• Remote Monitoring: Real-time monitoring of inputs, outputs, and system status via web browser
• User-Defined Pages: Create custom web pages for specific monitoring and control requirements
• Multi-Device Access: Compatible with smartphones, tablets, and computers
• Secure Access: Password-protected access for authorized personnel only
• No HTML Knowledge Required: Simple configuration without programming skills

Communication Protocols

• Ethernet TCP/IP: Standard Ethernet communication for programming and monitoring
• Modbus TCP/IP: Industrial protocol support for integration with SCADA systems
• SIMATIC S7 Communication: Native integration with Siemens automation ecosystem
• Web Services: RESTful API for custom applications and third-party integration

Applications

• Building automation systems for lighting, HVAC, and access control
• Small manufacturing automation with conveyor control and process monitoring
• Irrigation and water management systems with sensor-based control
• Home automation projects including lighting, security, and climate control
• Educational and training applications for automation learning
• Prototype development for small automation projects
• Pump and motor control applications with feedback monitoring
• Simple process control in chemical and water treatment applications

Software Features

• LOGO! Soft Comfort V8.3: Professional programming environment with simulation capabilities
• Project Management: Organize and manage multiple automation projects
• Online Monitoring: Real-time monitoring and debugging of running programs
• Backup and Restore: Complete project backup and restoration capabilities
• Version Control: Track changes and maintain program versions
• Documentation: Automatic generation of program documentation and I/O lists

Expansion Options

• Digital I/O Modules: Additional digital input and output expansion modules
• Analog Modules: Dedicated analog input and output expansion modules
• Communication Modules: Additional protocol support and communication interfaces
• Text Display: External LOGO! TD text display for enhanced operator interface
• Power Modules: Additional power supply modules for expanded systems
