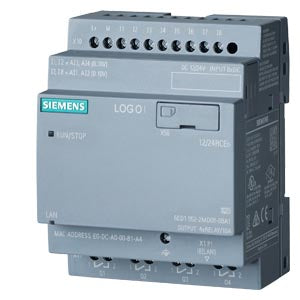

Siemens LOGO! PPLC CPU for use w/ power supply, 12AI, 12-24VDC Part number 6ED1052-2MD08-0BA2

Product Overview

The Siemens LOGO! 12/24 RCEO (6ED1052-2MD08-0BA2) is a compact logic module designed for versatile control and automation tasks. Operating on 12/24 V DC, it provides eight digital inputs—four of which can also function as analogue inputs (0–10 V)—and four relay outputs rated up to 10 A. The module features an integrated Ethernet interface, web server, micro-SD card slot, and data-logging functionality. Supporting up to 400 program blocks and a real-time clock, it enables efficient and reliable control for small automation systems, offering easy expandability through additional I/O modules.

Key Features

• Compact modular logic controller for small automation projects
• Power supply: 12/24 V DC (10.8 … 28.8 V operating range)
• 8 digital inputs, with 4 configurable as analogue inputs (0–10 V)
• 4 relay outputs rated up to 10 A
• Integrated Ethernet interface for communication and networking
• Built-in web server for remote monitoring and control
• Micro-SD card slot for program storage, backups, and data logging
• Supports up to 400 program blocks and includes a real-time clock
• Expandable with Siemens LOGO! modules for additional I/O capacity
• Compact 4-module-width design for DIN-rail mounting

Technical Specifications

• Product Series: LOGO! 8 Logic Module
• Article Number: 6ED1052-2MD08-0BA2
• Supply Voltage: 12 / 24 V DC (10.8 … 28.8 V)
• Inputs: 8 digital, 4 configurable as analogue (0–10 V)
• Outputs: 4 relay, 10 A max per output
• Memory Capacity: 400 program blocks
• Interfaces: Ethernet, web server, micro-SD card
• Communication: Ethernet TCP/IP with cloud connectivity
• Mounting Type: 35 mm DIN-rail, 4 modules wide
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: –40 °C to +70 °C

Compliance & Certifications

• Conforms to Siemens LOGO! system and IEC standards for programmable logic controllers
• Tested and certified for industrial and building automation use
• Supports standard configuration via LOGO! Soft Comfort software

Applications

Ideal for small automation tasks in building management, HVAC control, lighting systems, water treatment, and machine automation. Its Ethernet interface and modular expandability make it suitable for both standalone control and integration into larger industrial or commercial automation networks.
