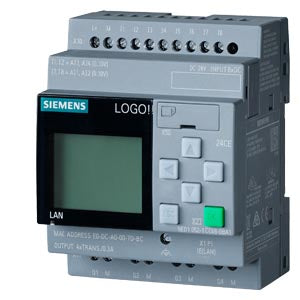

Siemens LOGO! Logic module, display power supply, 8I, 24VDC Part number 6ED1052-1CC08-0BA2

Product Overview

The Siemens 6ED1052-1CC08-0BA2 is a LOGO! 24CE logic module designed for small-scale automation tasks and smart control applications. It features 8 digital inputs, 4 of which can also function as analog inputs, and 4 transistor outputs. The module supports 400 program blocks, includes an integrated Ethernet interface and web server, and offers user-defined web pages and cloud connectivity for flexible and remote control operations.

Key Features

• Compact logic controller from the Siemens LOGO! 24CE family
• 8 digital inputs, with 4 configurable as analog (0–10 V)
• 4 transistor outputs rated for 24 V DC operation
• Integrated Ethernet interface with web server capability
• Supports up to 400 program blocks for automation logic
• Expandable via LOGO! expansion modules
• DIN-rail mountable for quick and modular installation
• Cloud connectivity for monitoring and control

Technical Specifications

• Product Series: LOGO! 24CE
• Article Number: 6ED1052-1CC08-0BA2
• Supply Voltage: 24 V DC (20.4–28.8 V range)
• Digital Inputs: 8 (4 configurable as analog inputs 0–10 V)
• Digital Outputs: 4 transistor outputs, max 0.3 A each
• Program Memory: 400 function blocks
• Communication: Ethernet interface, integrated web server
• Mounting: 35 mm DIN rail
• Operating Temperature: –20 °C to +55 °C
• Dimensions (W × H × D): 71.5 × 90 × 60 mm

Compliance & Certifications

• Developed and manufactured to Siemens industrial automation standards
• Complies with IEC 61131 for programmable logic controllers
• Certified for industrial and building automation environments

Applications

Ideal for small automation systems, machinery control, HVAC, lighting management, and building automation. The LOGO! 24CE module provides reliable performance for both standalone and networked control solutions, enabling efficient monitoring and control in modern smart environments.
