Siemens Logo AM2 RTD Expansion module, 12 - 24VDC Siemens
View on Siemens
Siemens

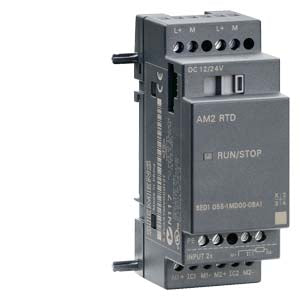

Siemens Logo AM2 RTD Expansion module, 12 - 24VDC

SKU / Article No. 6ED1055-1MD00-0BA1
EAN / Barcode - None -
Product Type Control Panel
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

SPARE PART ONLY - The LOGO! AM2 RTD expansion module was designed to extend the temperature measurement capabilities of LOGO! 6 and LOGO! 7 logic controllers. This module provided two dedicated analog inputs for RTD (Resistance Temperature Detector) sensors, supporting both Pt100 and Pt1000 configurations with a temperature measurement range of -50°C to +200°C. This product is available only as a spare part for existing installations.

Key Features (Historical)

  • Dual RTD Inputs: Two independent analog inputs specifically designed for Pt100/Pt1000 temperature sensors
  • LOGO! 6/7 Compatibility: Specifically designed for LOGO! 6 and LOGO! 7 series logic modules
  • Wide Temperature Range: Measurement range from -50°C to +200°C
  • High Resolution: 10-bit resolution for precise temperature measurement
  • Flexible Power Supply: Compatible with 12/24 V DC power supply systems
  • DIN Rail Mounting: 2 HP (36 mm) width for standard DIN rail installation

Technical Specifications

  • Analog Inputs: 2 channels for RTD sensors (Pt100/Pt1000 compatible)
  • Temperature Range: -50°C to +200°C measurement capability
  • Resolution: 10-bit for precise temperature readings
  • Supply Voltage: 12/24 V DC
  • Sensor Types: 2-wire and 3-wire RTD connections supported
  • Connection Type: Screw terminals for secure wiring
  • Operating Temperature: 0°C to +55°C ambient
  • Protection Class: IP20
  • Physical Dimensions: 55 x 36 mm (2 HP width)
  • Net Weight: 0.134 kg
  • Country of Origin: China
  • EAN: 6940408100992

Compatibility (Historical)

  • LOGO! 6 Series: Compatible with LOGO! 6 basic modules
  • LOGO! 7 Series: Compatible with LOGO! 7 basic modules
  • Programming Software: LOGO! Soft Comfort V6/V7 versions
  • Important Note: NOT compatible with LOGO! 8 series (use 6ED1055-1MD00-0BA2 instead)

Applications (Historical)

  • Legacy System Maintenance: Spare part for existing LOGO! 6/7 installations
  • HVAC Systems: Temperature control in older building automation systems
  • Process Control: Industrial process temperature monitoring in legacy systems
  • Manufacturing: Temperature monitoring in older production equipment
  • Replacement Service: Maintenance of discontinued automation systems

Migration Information

  • For LOGO! 8 Systems: Use replacement part 6ED1055-1MD00-0BA2
  • System Upgrade: Consider upgrading to LOGO! 8 series for continued support
  • Legacy Support: Contact Siemens local office for assistance with discontinued products
  • Compatibility Note: 0BA1 and 0BA2 versions are not interchangeable between LOGO! generations

Compliance & Safety

  • RoHS Compliance: Compliant since March 16, 2010
  • Certifications: VDE 0631, IEC 1131, FM Class 1 Div 2, cULus, C-Tick, Marine approval
  • Export Control: AL: N / ECCN: EAR99H
  • WEEE Compliance: Subject to WEEE take-back obligations

Download existing graphical data for this product:
