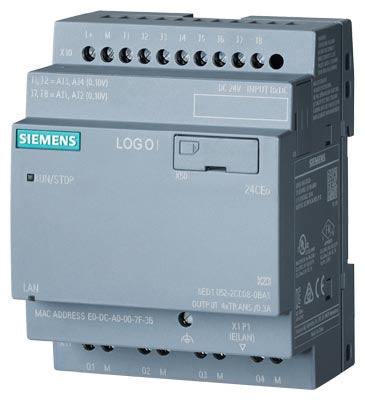

Siemens Logo 24CEo Logic module, w/o display, 8DI / 4DOV, 24V Part number 6ED1052-2CC08-0BA2

Product Overview

The Siemens 6ED1052-2CC08-0BA2 is a LOGO! 24CEo logic module from the LOGO! 8.4 series, designed for compact automation tasks without an integrated display. It operates on 24 V DC and provides 8 digital inputs (4 of which can be used as analogue 0–10 V inputs) and 4 transistor outputs. With support for up to 400 function blocks, Ethernet connectivity, integrated web server, data logging, user-defined web pages, and cloud/MQTT connectivity, it offers a powerful and flexible platform for small automation, building control, and machine control applications.

Key Features

• LOGO! 24CEo logic module without display
• Supply voltage: 24 V DC (with wide permissible range)
• 8 digital inputs, of which 4 can be configured as analogue inputs (0–10 V)
• 4 transistor outputs with integrated electronic short-circuit protection
• Program capacity: up to 400 function blocks
• Modularly expandable with LOGO! expansion modules
• Integrated Ethernet interface for networking and programming
• Built-in web server, data log function and user-defined web pages
• Standard microSD card slot for program storage and project handling
• Cloud connection and MQTT support in LOGO! 8.4 basic units

Technical Specifications

• Article Number: 6ED1052-2CC08-0BA2
• Device Type: LOGO! 24CEo logic module, without display
• Supply Voltage: 24 V DC, typical permissible range 20.4…28.8 V DC
• Digital Inputs: 8 (of which 4 can be used as analogue 0–10 V inputs)
• Analogue Inputs: Up to 4, via shared DI/AI channels (0–10 V)
• Digital Outputs: 4 transistor outputs
• Output Current: up to 0.3 A per output (signal “1”), with electronic short-circuit protection
• Function Blocks: up to 400 programmable blocks
• Communication: Ethernet interface with integrated web server and cloud/MQTT capability
• Mounting: 35 mm DIN rail, approx. 4 spacing units wide
• Dimensions (W × H × D): approx. 71.5 mm × 90 mm × 60 mm
• Operating Temperature: approx. –20 °C to +55 °C
• Protection: IP20 (when installed in an enclosure)

Compliance & Certifications

• Developed in accordance with IEC 61131 for programmable controllers
• CE marked and suitable for industrial and building automation use
• RoHS-compliant design according to Siemens industrial standards

Applications

The Siemens 6ED1052-2CC08-0BA2 is ideal for compact automation solutions such as small machine controls, pump and fan control, building automation (lighting, blinds, HVAC), and infrastructure or OEM applications. Its Ethernet connectivity, web server and cloud/MQTT functions make it particularly suitable where remote monitoring, simple visualisation and data logging are required in a space-saving DIN-rail module.
