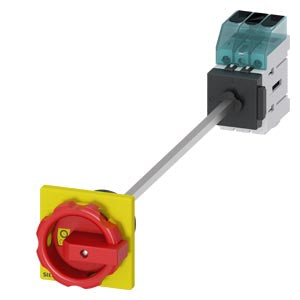

Siemens Load disconnector 3LD3, main switch 3-pole, 40A Part number 3LD3348-0TK53

Name: Siemens Load disconnector 3LD3, main switch 3-pole, 40A
Brand: Siemens
SKU: 3LD3348-0TK53

EAN / Barcode 4001869551456

Product Type Control Panel

Product Class Switch disconnector (low voltage)

ETIM Class Switch disconnector (low voltage)

In Stock

Product Description

The Load disconnector 3LD3 is designed for the safe shutdown of loads in various applications such as three-phase motors and control cabinets.

Rated operating capacity at AC-23 A at 400 V: 18.5 kW
Main switch: 3-pole
Iu: 40 A
Floor mounting
Basic switch with door coupling
Central hole mounting: 22.5mm
Rotary actuator: red / yellow, 66 x 66 mm
Optimum disconnection of 16 A of 63 A from the power supply
Modular design for fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole
Available in a wide range of variants for front mounting, mounting plate, DIN rail, or installation in distribution boards
3LD2 is available in variants for DC applications

Safe shutdown of loads in many areas, including small machines like saws, compressors, and pumps
Versatile due to international approvals
One mechanical frame size for five electrical frame sizes
Options for direct or door-coupling rotary operating mechanism for enhanced safety

Colour control element	Red
Compliance/Standards	UL 60947-4
country_of_origin	Germany
Degree of protection (IP), front side	IP65
Degree of protection (NEMA)	Other
Depth	380 mm
description	Load disconnector 3LD3, Iu 40 A Main switch 3-pole Rated operating capacity at AC-23 A at 400 V 18.5 kW floor mounting Basic switch with door coupling Central hole mounting 22.5mm Rotary actuator red / yellow 66 x 66 mm
Device construction	Built-in device fixed built-in technique
Height	60 mm
Interlockable	Yes
IP Rating	IP65
IP Rating Detailed	IP65 degree of protection NEMA rating 1, 3R, 4X, 12 protection class IP on the front IP65 Dissipation power loss
Max Frequency	501 /h
Max. rated operation voltage Ue AC	690 V
Number of poles	3
Number of switches	1
Part Depth (mm)	420,00mm
Part Height (mm)	83,00mm
Part Width (mm)	68,00mm
Rated operation power at AC-23, 400 V	19 kW
Rated operation power at AC-3, 400 V	12 kW
Rated permanent current at AC-21, 400 V	40 A
Rated permanent current at AC-23, 400 V	36 A
Rated permanent current Iu	40 A
Rated short-time withstand current lcw	1 kA
Suitable for floor mounting	Yes
Suitable for front mounting centre	Yes
Type of control element	Short thumb-grip
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	Yes
Version as main switch	Yes
Version as maintenance-/service switch	Yes
Version as safety switch	Yes
Weight (g)	0,348 Kg
Width	36 mm
