Product Overview

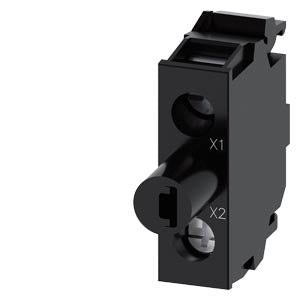

LED module with integrated LED 24 V AC/DC, green, screw terminal, for floor mounting

Article Number: 3SU1401-2BB40-1AA0-Z X01

Key Features:

• Voltage Rating: 24V AC/DC
• LED Color: Green
• Connection Type: Screw terminal for secure installation
• Mounting: Floor mounting design for base applications
• Series: SIRIUS ACT
• Special Configuration: Z X01 designation for flexible ordering quantities
• Application: For illuminating SIRIUS ACT command and signaling devices in floor-mounted configurations

Technical Specifications:

• Operating Voltage: 24V AC/DC
• Forward Current: 20 mA
• Protection Rating: IP20, IP40
• Net Weight: 0.010 kg
• Packaging Dimensions: 35.00 x 35.00 x 10.00 mm
• Quantity Unit: 1 Piece
• EAN: 4047621072180
• UPC: 195125005754
• Country of Origin: Czech Republic

Product Benefits:

• Floor Mounting Design: Specifically engineered for base-mounted applications and floor-level installations
• High-Visibility Green LED: Provides clear visual indication with excellent visibility for "go," "safe," and normal operation status signals
• Energy-Efficient LED Technology: Delivers brilliant luminosity with low 24V power consumption
• Integrated Design: LED module with built-in LED eliminates need for separate lamp components
• Flexible Ordering: Z X01 configuration allows single unit orders for specialized applications and prototyping
• Robust Construction: Designed for industrial environments with high protection against dust, oils, and caustic solutions
• Secure Connection: Screw terminal provides reliable electrical connection for critical applications
• Safety Indication: Green LED universally recognized for safe operation, normal status, and "proceed" signals
• Compact Design: Optimized 35x35x10mm packaging for efficient space utilization
• Reliable Performance: Engineered for long service life in demanding floor-mounted installations

Applications: Perfect for floor-mounted SIRIUS ACT pushbuttons and indicator lights in industrial control systems, emergency systems, machinery interfaces, and automation systems where ground-level visual indication and control are required. Ideal for applications requiring green status indication for normal operation, safety confirmation, "go" signals, and system ready states in manufacturing and process control environments. The Z X01 configuration makes it particularly suitable for custom installations, maintenance replacements, and prototype development where single unit flexibility is essential.

Compliance & Certifications:

• WEEE Directive: Take-back obligation applies
• Export Control: AL: N / ECCN: N
• Product Class: A - Standard stock item

REACH Regulation Notice: This product contains substances from the candidate list in concentrations higher than 0.1% w/w:

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current information, these substances do not pose risk when used as intended. Please refer to product documentation for complete details.

Download existing graphical data for this product:

• System Manual - SIRIUS ACT 3SU1 Pushbuttons and Signaling Devices
• Technical Documentation
• Product Support Page
• Product Datasheet
• Additional Product Information
