Product Overview

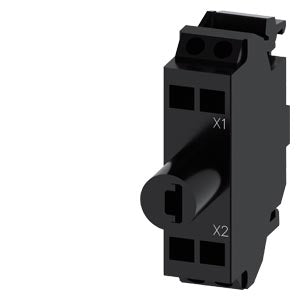

LED module with integrated LED 24 V AC/DC, blue, spring-loaded terminal, for floor mounting

Article Number: 3SU1401-2BB50-3AA0

Key Features:

• Voltage Rating: 24V AC/DC
• LED Color: Blue
• Connection Type: Spring-loaded terminal for quick, tool-free installation
• Mounting: Floor mounting design for base applications
• Series: SIRIUS ACT
• Application: For illuminating SIRIUS ACT command and signaling devices in floor-mounted configurations

Technical Specifications:

• Operating Voltage: 24V AC/DC
• Forward Current: 20 mA
• Protection Rating: IP20/IP40
• Net Weight: 0.008 kg
• Packaging Dimensions: 55.00 x 102.00 x 32.00 mm
• Quantity Unit: 1 Piece
• EAN: 4011209943032
• UPC: 804766074158
• Country of Origin: Czech Republic

Product Benefits:

• Floor Mounting Design: Specifically engineered for base-mounted applications and floor-level installations
• High-Visibility Blue LED: Provides clear visual indication with excellent visibility for information, neutral status, and general signaling applications
• Spring-Loaded Terminal Connection: Tool-free installation with secure spring clamp technology for fast and reliable connections
• Energy-Efficient LED Technology: Delivers brilliant luminosity with low 24V power consumption
• Integrated Design: LED module with built-in LED eliminates need for separate lamp components
• Robust Construction: Designed for industrial environments with high protection against dust, oils, and caustic solutions
• Quick Installation: Spring-loaded terminals enable rapid connection without tools, reducing installation time
• Distinctive Signaling: Blue LED provides clear differentiation from standard red, yellow, and green status indicators
• Reliable Performance: Engineered for long service life in demanding floor-mounted installations

Applications: Perfect for floor-mounted SIRIUS ACT pushbuttons and indicator lights in industrial control systems, machinery interfaces, and automation systems where ground-level visual indication and control are required. Ideal for applications requiring blue status indication for informational signals, neutral states, general purpose indication, or where color differentiation from standard traffic light colors (red, yellow, green) is needed in complex control systems.

Compliance & Certifications:

• RoHS Compliant: Since 01.10.2014
• WEEE Directive: Take-back obligation applies
• Export Control: AL: N / ECCN: N
• Product Class: A - Standard stock item

REACH Regulation Notice: This product contains substances from the candidate list in concentrations higher than 0.1% w/w:

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current information, these substances do not pose risk when used as intended. Please refer to product documentation for complete details.

Download existing graphical data for this product:

• System Manual - SIRIUS ACT 3SU1 Pushbuttons and Signaling Devices
• Technical Documentation
• Product Datasheet
• Additional Product Information
