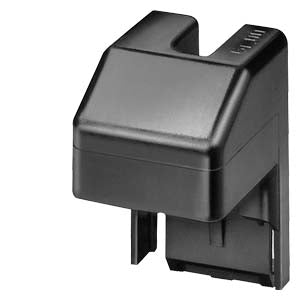

Siemens ISO Cover for LV HRC base, size 00

Product Overview

Essential insulating protection component designed for LV HRC fuse base installations in Size 00 configurations. This ISO cover provides critical electrical insulation and safety protection for low voltage high rupture capacity fuse systems. As part of the SENTRON protective component family, this cover ensures reliable insulation of lyre contacts and provides enhanced protection for personnel, equipment, and installations by preventing accidental contact with live parts during maintenance and operation.

Key Features

• Size 00 Compatibility: Specifically engineered for LV HRC fuse base Size 00 applications
• Insulation Protection: Provides essential electrical isolation for lyre contacts
• Safety Enhancement: Prevents accidental contact with energized components
• Professional Design: Easy installation and secure mounting on LV HRC fuse bases
• Compact Construction: Space-efficient solution for electrical panel installations
• Reliable Performance: Ensures consistent protection and operational safety

Technical Specifications

• Application: ISO cover for LV HRC base Size 00
• Net Weight: 0.011 kg
• Packaging Dimensions: 190 x 120 x 8 mm
• Country of Origin: Germany
• EAN: 4001869020891

Applications

Ideal for use with SENTRON 3NA and 3ND LV HRC fuse systems in:

• Industrial electrical panels and switchgear
• Distribution boards and control cabinets
• Building electrical infrastructure
• Plant and equipment protection systems
• Maintenance and service applications requiring contact isolation

Safety & Protection

This ISO cover component enhances safety by providing proper insulation of lyre contacts in LV HRC fuse installations. It prevents accidental contact with live parts during maintenance operations and contributes to overall system safety by maintaining required electrical clearances according to safety standards, ensuring reliable personnel protection and system integrity.

Compatibility

Designed for seamless integration with:

• SENTRON 3NA LV HRC fuse systems
• SENTRON 3ND LV HRC fuse systems
• Size 00 LV HRC fuse bases
• Standard industrial electrical installations

Compliance & Certifications

• RoHS Compliant: Since January 1, 2006
• Export Control: AL: N / ECCN: N
• REACH Regulation: Compliant with current substance restrictions
• Product Class: B - Return restricted, contact Siemens partner for details

Product Classification

• Product Lifecycle: PM400 - Announcement of product phase-out
• eClass: 27-14-21-92
• ETIM: EC001660
• UNSPSC: 39-12-16-17

Packaging Information

• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Package Size Unit: MM
• Net Weight: 0.011 kg

Environmental Information

This product is manufactured in Germany in compliance with environmental regulations. WEEE take-back obligation does not apply to this product. The lightweight design and compact packaging minimize environmental impact during transportation and installation, supporting sustainable electrical infrastructure development.

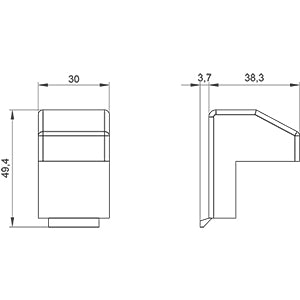

Download existing graphical data for this product:

Technical documentation and resources are available through Siemens official channels:

• Product Datasheet (PDF)
• LV HRC Fuse Bases and Accessories Product Line
• SENTRON 3NA, 3ND LV HRC Fuse Systems
• LV HRC Fuses: DIN Type Technical Documentation
• Fuse Systems Operating Manual

For additional technical support and comprehensive product documentation, please visit the Siemens Industry Online Support portal.
