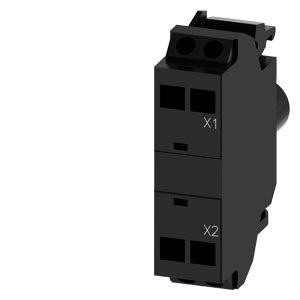

Product Image
View on Siemens 📄 Datasheet
Siemens

Siemens Integrated LED module, spring, white, 24-240VAC/DC Part number 3SU1401-1BH60-3AA0

EAN / Barcode 4011209938939
Product Type Control Panel
Product Class Lamp holder block for control circuit devices
ETIM Class Lamp holder block for control circuit devices
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

Product Overview

LED module with integrated LED, 24-240 V AC/DC, white, spring-type terminal, for front plate mounting

Article Number: 3SU1401-1BH60-3AA0

Key Features:

  • Wide Voltage Range: 24-240V AC/DC for flexible installation
  • LED Color: White
  • Connection Type: Spring-type terminal for quick, tool-free installation
  • Mounting: Front plate mounting design
  • Series: SIRIUS ACT
  • Application: For illuminating SIRIUS ACT command and signaling devices

Technical Specifications:

  • Operating Voltage: 24-240V AC/DC
  • Forward Current: 20 mA
  • Protection Rating: IP20, IP40
  • Net Weight: 0.010 kg
  • Packaging Dimensions: 30.00 x 40.00 x 10.00 mm
  • Quantity Unit: 1 Piece
  • EAN: 4011209938939
  • UPC: 804766074035
  • Country of Origin: Czech Republic

Product Benefits:

  • Universal Voltage Compatibility: Wide 24-240V AC/DC range accommodates various system voltages
  • Energy-Efficient LED Technology: Delivers brilliant luminosity with low power consumption
  • Spring-Type Terminal Connection: Tool-free installation with secure spring clamp technology
  • Integrated Design: LED module with built-in LED eliminates need for separate lamp components
  • Durable Construction: Designed for industrial environments with high protection against dust, oils, and caustic solutions
  • Easy Installation: Quick connection and mounting for efficient system integration
  • Reliable Performance: Engineered for long service life in demanding applications

Applications: Perfect for use with SIRIUS ACT pushbuttons and indicator lights in industrial control panels, machinery, and automation systems where clear visual indication is required across different voltage systems.

Compliance & Certifications:

  • RoHS Compliant: Since 01.10.2014
  • WEEE Directive: Take-back obligation applies
  • Export Control: AL: N / ECCN: N
  • Product Class: A - Standard stock item

REACH Regulation Notice: This product contains substances from the candidate list in concentrations higher than 0.1% w/w:

  • Lead
  • Lead monoxide (lead oxide)

Based on current information, these substances do not pose risk when used as intended. Please refer to product documentation for complete details.

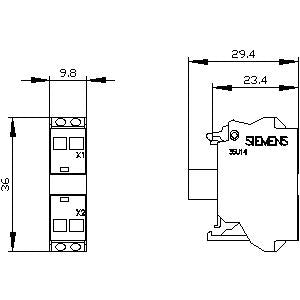

Download existing graphical data for this product:

Technical Specifications

Colour light sourceWhite
Compliance/StandardsEN 61373, IEC 60721, IEC 60068-2, IEC 81346-2
Connection type auxiliary circuitSpring clamp connection
country_of_originCzech Republic
descriptionLED module with integrated LED, 24-240 V AC/DC, white, spring-type terminal, for front plate mounting
IP RatingIP40
IP Rating DetailedIP40 of the terminal IP20 shock resistance according to IEC 60068
Lamp typeLED
Part Depth (mm)10,00mm
Part Height (mm)40,00mm
Part Width (mm)30,00mm
Rated voltage Ue at AC 50 Hz24 V
Rated voltage Ue at AC 60 Hz24 V
Rated voltage Ue at DC24 V
Voltage type for actuatingAC/DC
Weight (g)0,010 Kg
With integrated diodeYes
With light sourceYes
