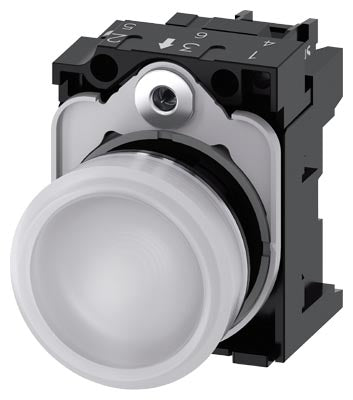

Siemens Indicator lights w/ holder, LED, round, screw, white, 22mm Part number 3SU1153-6AA60-1AA0

Product Overview

The Siemens 3SU1153-6AA60-1AA0 is a SIRIUS ACT 22 mm round illuminated indicator light complete unit, featuring a white lens, metal shiny bezel and integrated LED module for 110 V AC operation. It is designed for panel mounting and offers high protection rating suitable for industrial and outdoor applications.

Key Features

• Complete illuminated indicator light unit from the Siemens SIRIUS ACT series
• 22 mm standard panel cut-out; round format with metal shiny bezel
• White lens for clear status indication
• Integrated LED module for 110 V AC supply voltage
• Screw-type terminals for secure wiring
• High ingress protection: front side rated up to IP66 / IP67 / IP69K; terminal area IP20
• Designed for industrial, harsh and hygienic environments—dust, water, high-pressure cleaning compatible

Technical Specifications

• Product Series: SIRIUS ACT – 3SU1
• Article Number: 3SU1153-6AA60-1AA0
• Mounting Cut-out: 22.3 mm diameter typical
• Lens Colour: White
• Supply Voltage (Light Source): 110 V AC
• Light Source: LED integrated module
• Rated Insulation Voltage: 320 V
• Surge Withstand Voltage: 4 kV
• Protection Class (Front): IP66 / IP67 / IP69K
• Ambient Operating Temperature: –25 °C to +70 °C
• Termination: Screw-type terminals, suitable conductor cross-section: solid up to 1.5 mm², fine-stranded up to 1.5 mm²

Compliance & Certifications

• Manufactured by Siemens under the SIRIUS ACT command and signalling devices family
• Complies with IEC/EN 60947-5-1 “Control circuit devices and switching elements for low-voltage switchgear”
• Suitable for demanding industrial applications requiring high IP protection and reliable visual status indication

Applications

Ideal for control panels, machine operator stations, switchgear enclosures and automation systems requiring illuminated visual indication of status or condition. Commonly used in manufacturing, food & beverage, robotics and outdoor installations where durability, high cleaning standards, and long service life are required.
