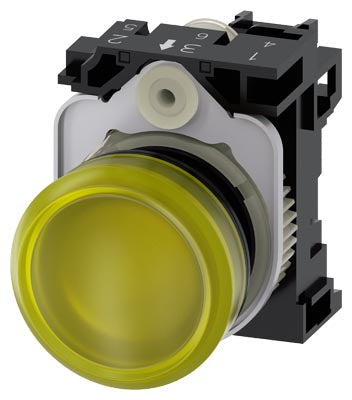

Siemens Indicator light, round, lens, smooth, plastic, yellow, 22mm Part number 3SU1103-6AA30-1AA0

Product Overview

The Siemens 3SU1103-6AA30-1AA0 is a 22 mm round, yellow LED indicator light from the SIRIUS ACT series. It includes a plastic smooth lens, plastic holder and integrated LED module rated for 110 V AC. It features screw-type terminals for connection and is designed for panel mounting in front-plate applications, offering high protection (IP66/IP67/IP69K) and durability for industrial signalling.

Key Features

• 22 mm diameter round indicator light, SIRIUS ACT series
• Yellow lens colour with integrated LED light source rated for 110 V AC
• Screw-type terminal connection for reliable wiring
• High protection degree: IP66/IP67/IP69K (front); terminals IP20
• Compact mounting depth (approx. 49.7 mm) and standard panel cut-out of 22.3 mm diameter
• Operating temperature range: -25 °C to +70 °C; storage: -40 °C to +80 °C

Technical Specifications

• Article Number: 3SU1103-6AA30-1AA0
• Series: SIRIUS ACT – Pushbuttons & Indicator Lights
• Lens Colour: Yellow
• Supply Voltage: 110 V AC (50/60 Hz)
• Mounting Diameter: 22.3 mm (cut-out size)
• Installation Depth: approx. 49.7 mm
• Front Housing Width: approx. 29.5 mm
• Degree of Pollution: 3
• Surge Voltage Resistance: 4 kV
• Rated Insulation Voltage (Ui): 320 V

Compliance & Certifications

• Laser-marked and designed according to Siemens SIRIUS ACT industrial signalling standards
• Suitable for heavy-duty environments including vibration (5 g) and shock (50 g) resistance testing.

Applications

Ideal for front-panel signalling in industrial control cabinets, machines and automation assemblies. The 3SU1103-6AA30-1AA0 serves as a visual indicator for machine status, control functions, alarm signalling or process indication where a compact, high-protection and reliable LED light element is required.
