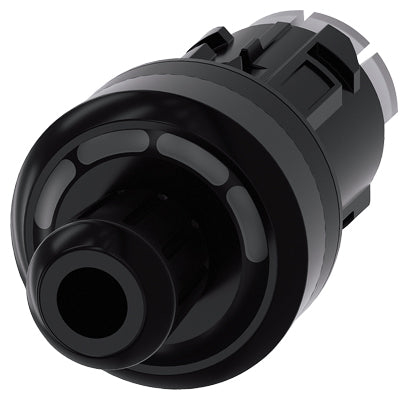

Siemens ID key-operated switch, round, plastic, black, 4-pos, 22mm Part number 3SU1000-4WS10-0AA0

Product Overview

The Siemens 3SU1000-4WS10-0AA0 is a key-operated switch head from the SIRIUS ACT 3SU10 series, designed for a 22 mm panel cut-out. It features four switching positions (O, I, II, III), an operating angle of 3 × 45°, and supports key removal in all switch positions. This variant includes RFID key-coding capability and provides high ingress protection (IP65) for use in industrial panels.

Key Features

• Key-operated switch head in black plastic, 22 mm cut-out diameter
• Four positions: O → I → II → III, with key removal in O, I, II and III
• Operating angle: 3 × 45°
• RFID key identification technology ensures authorized usage
• High protection class: IP65 front, suitable for harsh environments
• Compact design width approx. 29.5 mm for space-efficient panel mounting

Technical Specifications

• Article Number: 3SU1000-4WS10-0AA0
• Series / Type: SIRIUS ACT 3SU10 key switch head
• Mounting Diameter: 22.3 mm round panel cut-out
• Switch Positions: 4 (O, I, II, III)
• Operating Angle: 3 × 45°
• Key Withdrawal: Possible in all 4 positions
• Protection Class (Front): IP65
• Ambient Operating Temperature Range: –25 °C to +70 °C
• Mechanical Service Life (Typical): 100,000 cycles
• Approximate Weight: 22 g
• Front Actuator Diameter: ~29.5 mm

Compliance & Certifications

• Designed in accordance with industrial switchgear and selector-switch standards
• Suitable for use in machine controls, automation panels and industrial environments where secure key-actuation is required

Applications

This key-operated switch head is ideal for panel installations where secure multi-position key control is needed — for example in machine control panels, lock-out/tag-out systems, restricted access control, or automation room entry panels. Its RFID key function and IP65 rating make it particularly suitable for industrial environments where moisture, dust or contamination may be present.
