Product Overview

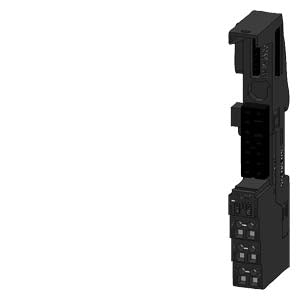

SIMATIC DP, 5 terminal modules TM-P15S23-A1 for ET 200S for power modules, 15 mm width, Screw terminals 2x3 terminal connections with terminal access to AUX1, AUX1 continuous, 5 units per packing unit. This terminal module is designed for use with SIMATIC ET 200S distributed I/O systems, specifically for power module applications requiring screw terminal connections with continuous AUX1 configuration.

Key Features

Terminal Configuration:

• 5 terminal modules per packing unit
• TM-P15S23-A1 designation for power module compatibility
• 15 mm width for compact installation
• Screw terminals for secure and reliable connections

Electrical Specifications:

• Terminal Connections: 2x3 terminal connections
• AUX Access: Terminal access to AUX1
• AUX1 Configuration: AUX1 continuous (inline)
• Terminal Type: Screw terminals for field wiring

System Compatibility:

• Designed for SIMATIC ET 200S distributed I/O system
• Compatible with ET 200S power modules
• PROFIBUS DP communication support

Technical Specifications

Physical Characteristics:

• Net Weight: 0.335 kg (for 5-unit pack)
• Width: 15 mm per module
• Packaging Dimensions: 15.90 x 17.70 x 5.00 cm
• Packaging Quantity: 5 units per pack

Terminal Specifications:

• Terminal Type: Screw terminals
• Connection Configuration: 2x3 terminal connections
• AUX Terminal Access: Yes, to AUX1
• AUX1 Status: Continuous (inline) configuration
• Wiring Method: Screw-type connections for field installation

System Integration:

• Compatible System: SIMATIC ET 200S
• Module Type: Power modules
• Communication: PROFIBUS DP
• Installation: DIN rail mounting
• Operating Voltage: Standard industrial voltages

Standards and Compliance:

• RoHS Compliance: Yes, since 25.11.2009
• WEEE Take-Back Obligation: Yes
• Export Control: ECCN: N / AL: N
• Country of Origin: Romania

Product Information:

• EAN: 4025515078692
• UPC: Not available
• Packaging Quantity: 5 pieces
• Quantity Unit: Package

Equivalent Product Options

Alternative Product:

• Part Number: 6ES7193-4CC20-0AA0
• Description: SIMATIC DP, Terminal module TM-P15S23-A1 for ET 200S (Individual unit)
• Packaging: VPE 1 (1 unit per package)

Product Comparison:

• Same terminal configuration and specifications
• Compatible with existing ET 200S installations
• Individual unit packaging vs. 5-unit pack
• AUX1 continuous configuration for specific applications

Key Differences from Similar Models

AUX1 Configuration:

• Continuous (A1): AUX1 terminals are bridged/continuous for power distribution
• Interrupted (A0): AUX1 terminals are separated for individual control
• Application: Continuous configuration allows power to flow through AUX1 terminals

Terminal Options:

• Screw Terminals: Secure field connections for industrial environments
• Spring Terminals: Tool-free connections for quick installation
• FastConnect: Push-in connections for rapid assembly

Applications

The ET 200S screw terminal modules with AUX1 continuous are designed for:

• Distributed I/O systems in industrial automation
• Power module applications requiring AUX1 bridging
• PROFIBUS DP communication networks
• Factory automation installations requiring screw terminals
• Process control applications with power distribution
• Machine control systems with auxiliary power circuits
• Field installations requiring robust connections

Installation and Wiring

Terminal Features:

• Screw terminals for reliable field wiring
• 2x3 terminal connection configuration
• AUX1 terminal access for auxiliary connections
• AUX1 continuous configuration for power bridging

Wiring Configuration:

• Main Terminals: 2x3 configuration for signal connections
• AUX1 Continuous: Bridged auxiliary terminals for power distribution
• Screw Connections: Secure terminal blocks for field wiring
• 15mm Width: Space-efficient installation

System Integration:

• Compatible with ET 200S power modules
• 15 mm width for space-efficient installation
• DIN rail mounting system
• PROFIBUS DP communication interface

Technical Support

Support Services:

• Comprehensive product documentation available
• Application engineering support
• Compatibility verification services
• System integration assistance

Installation Support:

• Detailed wiring diagrams
• Configuration guidelines
• Troubleshooting documentation
• Technical hotline support

Compatibility Matrix

ET 200S Terminal Modules:

• TM-P15S23-A0: AUX1 interrupted (individual control)
• TM-P15S23-A1: AUX1 continuous (bridged power)
• TM-E15xxx: Electronic module terminals
• TM-P15Cxx: Spring-type terminals

Power Module Applications:

• Digital output modules
• Analog output modules
• Motor control modules
• Relay output modules

REACH Compliance Notice

This product contains Lead in concentrations higher than 0.1% weight by weight (w/w) as per REACH Article 33 duty to inform. Based on available information, this substance does not pose risk when the product is used as intended, including disposal. Please refer to product documentation for additional information.

Download existing graphical data for this product:

• Product Information
• Product Datasheet
• ET 200S Terminal Modules Documentation
• ET 200S Operating Instructions
• ET 200S Digital Module Manual
• Equivalent Product Information
• Technical Support Documentation
