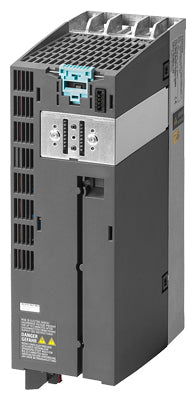

Siemens G120 Power module, 3-phase, 3kW, 480VAC, 11.8A Part number 6SL3210-1PE18-0AL1

Product Overview

The Siemens 6SL3210-1PE18-0AL1 is a PM240-2 Power Module for the SINAMICS G120 drive system. It is a compact, air-cooled power stage with an integrated Class A line filter and built-in braking chopper, designed for three-phase AC supplies (380–480 V). This module provides efficient, reliable motor control for industrial automation, pump systems, conveyors, HVAC, and general machinery requiring variable-speed drives.

Key Features

• SINAMICS G120 PM240-2 Power Module (Size FSA)
• Integrated Class A line filter for reduced electromagnetic emissions
• Integrated braking chopper for regenerative braking energy
• 3-phase input 380–480 V AC (+10% / –10%), 47–63 Hz
• High-overload and low-overload operating modes for flexible application matching
• Rated output: **3 kW**, **11.8 A** (power low-overload class)
• Compact block design for efficient cabinet installation
• Air-cooled with high efficiency (~96%)
• IP20 protection rating (when used without CU and operator panel)
• Released as of **Control Unit firmware version V4.6**

Technical Specifications

• Article Number: 6SL3210-1PE18-0AL1
• Product Type: SINAMICS G120 PM240-2 Power Module
• Voltage Input: 3-phase, 380–480 V AC ±10%
• Input Frequency: 47–63 Hz
• Rated Output Power: 3 kW (Low-Overload class), 2.2 kW (High-Overload class)
• Rated Output Current: approx. 11.8 A
• High Overload Rating (HO): 2.2 kW at:
  • 200% for 3 s
  • 150% for 57 s
  • 100% for 240 s
  • Ambient temperature: –10 °C to +50 °C
• Low Overload Rating (LO): 3 kW at:
  • 150% for 3 s
  • 110% for 57 s
  • 100% for 240 s
  • Ambient temperature: –10 °C to +40 °C
• Integrated Functions: Class A filter, braking chopper
• Cooling Method: Air-cooled
• Protection Class: IP20 (without CU or operator unit)
• Frame Size: FSA
• Dimensions (H × W × D): 196 × 73 × 165 mm
• Mechanical Installation: Cabinet mounting, block-type design
• Firmware Requirement: Compatible from CU firmware V4.6 and higher
• Efficiency: approx. 96%

Compliance & Standards

• Member of the SINAMICS G120 modular drive platform
• Meets industrial EMC requirements with built-in Class A filter
• Designed for industrial 3-phase low-voltage supply systems
• Integrated braking chopper for safe energy dissipation

Applications

The 6SL3210-1PE18-0AL1 is ideal for variable-speed control in pumps, fans, compressors, conveyors, mixers, HVAC systems, material-handling equipment, and general machinery. Suitable for both new installations and retrofits in manufacturing plants, utilities, building automation, and process industries. When combined with a SINAMICS G120 Control Unit, it forms a complete, flexible, and robust drive system.
