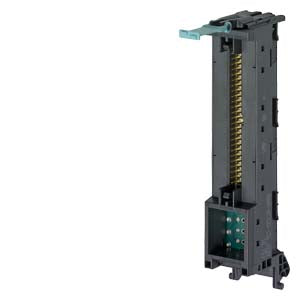

Siemens Front connector module for analog 40 pole I/O modules

Product Overview

The Siemens 6ES7921-5CK20-0AA0 is a front connector module designed for SIMATIC S7-1500 analog 40-pole I/O modules, featuring a single 50-pole IDC (Insulation Displacement Connector) for streamlined cable connections. This specialized module provides potential supply over infeed element and represents a modified front connector solution for analog I/O applications. The module is part of the fully modular SIMATIC TOP connect system, enabling the fastest and safest system cabling for sophisticated industrial automation installations.

Key Features

• Single 50-Pole IDC Connector: High-density connection interface for analog signals
• Analog I/O Compatibility: Specifically designed for 40-pole analog I/O modules
• Potential Supply Integration: Built-in potential supply over infeed element
• Plug-and-Play Design: Direct replacement for standard front connector
• SIMATIC TOP Connect: Part of modular connection system for enhanced reliability
• Compact Form Factor: Ultra-lightweight design at only 0.070 kg
• Industrial Grade: Engineered for demanding automation environments
• Direct Mounting: Seamless integration with S7-1500 modules

Technical Specifications

• Connector Type: Front connector module with 1x50 pole IDC connector
• Compatible Systems: SIMATIC S7-1500 analog 40-pole I/O modules
• Rated Voltage: 24V
• Number of Positions: 40 poles
• Connection Type: IDC (Insulation Displacement Connector)
• Connection Position: Top-mounted
• Mounting Type: Direct mounting
• Operating Temperature: 0°C to 60°C
• Material Color: Black
• Weight: 0.070 kg
• Packaging Dimensions: 5.00 x 13.30 x 3.40 cm
• Country of Origin: Romania
• EAN: 4047623602507
• UPC: 887621849887

Applications

This front connector module is specifically engineered for analog signal processing applications in SIMATIC S7-1500 systems. It enables efficient connection of 50-pole cables to analog I/O modules, facilitating precise measurement and control of analog signals in process automation, temperature monitoring, pressure sensing, flow control, and other critical analog applications requiring high signal integrity and reliable connections.

System Integration Benefits

• Modular Connection System: Integral part of SIMATIC TOP connect for systematic cabling
• Error Source Reduction: Significantly reduces wiring errors and installation mistakes
• Low Wiring Costs: Minimizes installation time and labor requirements
• Enhanced Maintainability: Simplified troubleshooting and system modifications
• Peripheral Integration: Seamless connection of sensors and actuators via connection modules
• Signal Integrity: Optimal signal transmission for analog applications
• Future-Proof Design: Supports system expansion and reconfiguration

Installation Advantages

The module plugs directly into the analog I/O module, replacing the standard front connector. Cable connections are made via the 50-pole IDC connector, which accommodates connecting cables that link to connection modules. The infeed element provides integrated potential supply, eliminating the need for separate power distribution components and simplifying the overall system architecture.

SIMATIC TOP Connect System

This front connector module is a crucial component of Siemens' SIMATIC TOP connect fully modular connection system. The system delivers the fastest and safest method for system cabling in analog applications, dramatically reducing installation complexity while improving system reliability. Sensors and actuators are connected to SIMATIC TOP connect connection modules and linked to the S7-1500 system via connecting cables and this front connector module.

Performance Characteristics

• High Signal Density: 50-pole IDC connection maximizes signal throughput
• Robust Construction: Engineered for continuous operation in industrial environments
• EMC Compatibility: Designed to minimize electromagnetic interference
• Vibration Resistance: Secure connections withstand industrial vibrations
• Temperature Stability: Reliable operation across industrial temperature ranges
• Quick Connection: IDC technology enables rapid and secure cable termination

Compliance & Certifications

• RoHS Compliant: Since 15.02.2013
• WEEE Compliance: Take-back obligation applicable
• REACH Regulation: Contains lead in concentrations higher than 0.1% w/w (safe for intended use)
• Export Control: AL: N / ECCN: EAR99H

Product Status

This is an active product (PM300) with ongoing availability and full technical support from Siemens.
