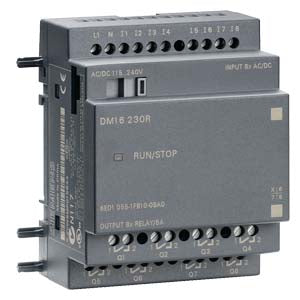

Siemens Expansion module, 8 DI/8 DO, 4 HP, 230V

Product Overview

SPARE PART ONLY - The LOGO! DM16 230R expansion module was designed to extend the digital I/O capabilities of LOGO! 6 and LOGO! 7 logic controllers with 230V AC operation. This module provided eight digital inputs and eight relay outputs in a 4 HP (72 mm) width design for high-voltage industrial automation applications. This product is available only as a spare part for existing installations.

Key Features (Historical)

• High-Voltage Operation: 8 digital inputs and 8 relay outputs for 230V AC systems
• LOGO! 6/7 Compatibility: Specifically designed for LOGO! 6 and LOGO! 7 series logic modules
• High I/O Density: 16 total I/O points in a compact 4 HP (72 mm) width design
• 230V Relay Outputs: Direct switching of 230V AC loads with high-current capability
• Industrial Grade Design: Robust construction for demanding 230V industrial environments
• DIN Rail Mounting: Standard 35 mm DIN rail installation with 4 HP width

Technical Specifications

• Digital Inputs: 8 channels for 230V AC signals
• Digital Outputs: 8 relay outputs for 230V AC load switching
• Supply Voltage: 230V AC/DC
• Input Voltage: 230V AC rated
• Output Rating: Relay contacts rated for 230V AC operation
• Module Width: 4 HP (72 mm) for DIN rail mounting
• Operating Temperature: 0°C to +55°C ambient
• Protection Class: IP20
• Net Weight: 0.303 kg
• Country of Origin: China
• EAN: 4025515071365

Compatibility (Historical)

• LOGO! 6 Series: Compatible with LOGO! 6 basic modules for 230V applications
• LOGO! 7 Series: Compatible with LOGO! 7 basic modules for 230V applications
• Programming Software: LOGO! Soft Comfort V6/V7 versions
• Important Note: NOT compatible with LOGO! 8 series (use 6ED1055-1FB10-0BA2 instead)

Applications (Historical)

• Legacy System Maintenance: Spare part for existing LOGO! 6/7 installations with 230V requirements
• High-Voltage Control: 230V motor control, lighting systems, and industrial equipment
• Building Automation: Legacy building control systems with 230V infrastructure
• Industrial Equipment: High-voltage relay switching in older automation systems
• Replacement Service: Maintenance of older 230V automation installations

High-Voltage Capabilities

• 230V AC Inputs: Direct connection to 230V AC control signals and sensors
• Relay Output Switching: High-current relay contacts for 230V AC load control
• Industrial Applications: Suitable for motor starters, contactors, and high-power loads
• Safety Considerations: Designed for qualified personnel installation and maintenance
• Electrical Isolation: Proper isolation between input and output circuits

Migration Information

• For LOGO! 8 Systems: Use replacement part 6ED1055-1FB10-0BA2
• System Upgrade: Consider upgrading to LOGO! 8 series for continued support
• Legacy Support: Contact Siemens local office for assistance with discontinued products
• Compatibility Note: 0BA0 and 0BA2 versions are not interchangeable between LOGO! generations

Compliance & Safety

• RoHS Compliance: Compliant since November 30, 2006
• Certifications: Industrial automation standards compliance (historical)
• Export Control: AL: N / ECCN: EAR99H
• WEEE Compliance: Subject to WEEE take-back obligations
• REACH Information: Contains lead in concentrations >0.1% w/w (safe when used as intended)
• High-Voltage Warning: Qualified personnel required for 230V installation and maintenance

Installation & Safety Considerations

• Qualified Personnel: 230V AC systems require qualified electrical personnel
• Safety Precautions: Proper electrical safety procedures must be followed
• Electrical Codes: Installation must comply with local electrical codes and regulations
• Circuit Protection: Appropriate fuses and circuit breakers required
• Grounding: Proper grounding essential for safe 230V operation
