Product Overview

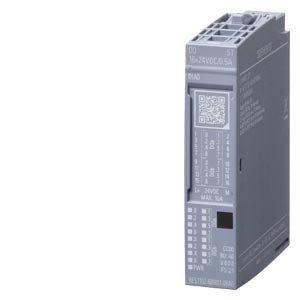

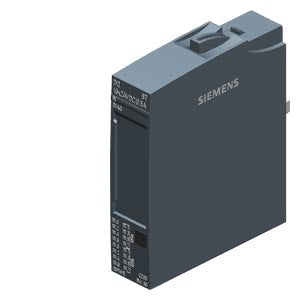

SIMATIC ET 200SP, Digital output module, DQ 16x 24V DC/0,5A Standard, Source output (PNP,P-switching) Packing unit: 1 piece, fits to BU-type A0, Colour Code CC00, substitute value output, module diagnostics for: short-circuit to L+ and ground, wire break, supply voltage. This high-performance digital output module is designed for reliable control applications in the modular ET 200SP distributed I/O system.

Key Features

Output Configuration:

• 16 digital output channels
• 24V DC operation with 0.5A per channel
• Source output (PNP, P-switching) configuration
• Standard output module for general applications

Advanced Diagnostics:

• Module Diagnostics: Comprehensive monitoring capabilities
• Short-Circuit Detection: Protection for L+ and ground faults
• Wire Break Detection: Automatic fault detection
• Supply Voltage Monitoring: Continuous power supply surveillance
• Substitute Value Output: Configurable safe output states

System Integration:

• BaseUnit Compatibility: Fits BU-type A0
• Colour Code: CC00 for easy identification
• Packing Unit: 1 piece per package
• Modular Design: Part of the scalable ET 200SP system

Technical Specifications

Output Characteristics:

• Output Channels: 16 digital outputs
• Output Voltage: 24V DC
• Output Current: 0.5A per channel (standard)
• Output Type: Source output (PNP, P-switching)
• Switching Type: Positive switching configuration

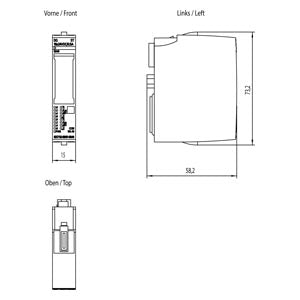

Physical Characteristics:

• Net Weight: 0.036 kg
• Packaging Dimensions: 6.70 x 7.50 x 2.40 cm
• Degree of Protection: IP20
• Installation: Plug-in connection to BaseUnit

System Specifications:

• BaseUnit Type: A0 compatibility
• Colour Code: CC00 (standard outputs)
• Connection Type: Plug-in connection
• Communication: Integrated PROFINET interface
• Performance Level: Level d (EN ISO 13849-1)

Diagnostic Features:

• Wire Break Detection: Real-time monitoring
• Short-Circuit Protection: L+ and ground fault detection
• Supply Voltage Monitoring: Power supply diagnostics
• Module Status: LED status indication
• Substitute Value Output: Configurable safe states

Standards and Compliance:

• RoHS Compliance: Yes, since 15.09.2017
• WEEE Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: 9N9999
• Country of Origin: Germany

Product Information:

• EAN: 4047623408574
• UPC: 804766529047
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece

Applications

The SIMATIC ET 200SP Digital Output Module is ideal for:

• Industrial automation and process control
• Machine control applications
• Factory automation systems
• Distributed control systems
• PROFINET-based networks
• Motor control and actuator applications
• Valve and solenoid control
• Lighting and signaling systems

System Architecture

ET 200SP System Benefits:

• Space-Saving Design: Compact IP20 installation
• Scalable Configuration: Modular system architecture
• Cost-Optimized: Efficient signal module range
• Flexible Integration: Wide range of I/O modules available
• Easy Commissioning: Simple configuration and setup

Module Categories:

• Digital input/output modules
• Analog input/output modules
• Fail-safe variants (up to SIL 3/PLe)
• Motor starters (up to 5.5 kW)
• Communication modules
• Technology modules

Installation and Configuration

Mechanical Installation:

• Plug-in connection to BaseUnit type A0
• IP20 degree of protection for control cabinet installation
• Compact design for space-efficient layouts
• Color-coded identification (CC00)

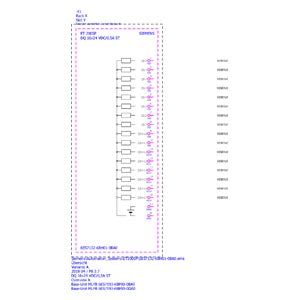

Electrical Connection:

• 16 individual output channels
• 24V DC supply voltage
• 0.5A output current per channel
• PNP source output configuration
• Comprehensive diagnostic monitoring

System Configuration:

• TIA Portal Integration: Seamless engineering environment
• PROFINET Communication: Real-time data exchange
• Module Diagnostics: Integrated fault detection
• Substitute Values: Configurable safe output states

Diagnostic and Safety Features

Real-Time Monitoring:

• Continuous output channel monitoring
• Supply voltage supervision
• Wire break detection for all channels
• Short-circuit protection (L+ and ground)

Fault Management:

• LED Status Indicators: Visual diagnostic feedback
• Module Diagnostics: Detailed fault information
• Substitute Value Output: Safe output states during faults
• System Integration: Fault reporting to controller

Compatibility

BaseUnit Requirements:

• Type A0: Standard BaseUnit for general applications
• Push-in Terminals: Tool-free wiring connections
• 15mm Width: Compact installation footprint
• Color Coding: CC00 designation for standard outputs

Controller Integration:

• S7-1500 Series: Full compatibility and optimization
• S7-1200 Series: Standard integration support
• Third-Party Controllers: PROFINET standard compliance
• Distributed Intelligence: Local processing capabilities

REACH Compliance Notice

This product contains substances from the REACH candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead - Used in electronic components
• Lead monoxide (lead oxide) - Present in electronic assemblies
• Silicic acid, lead salt - Used in manufacturing processes

Based on current information, these substances do not pose risk when the product is used as intended, including disposal. Please refer to product documentation for additional information.
