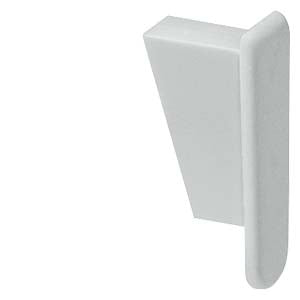

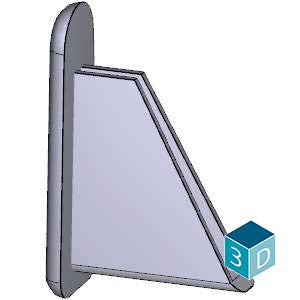

Siemens End cap for pin busbars, 1-phase

Product Overview

The Siemens 5ST3748 is a specialized end cap designed for professional termination of single-phase pin busbar systems in electrical distribution panels. This essential SENTRON busbar accessory provides safe and reliable termination for 1-phase pin busbars, ensuring proper electrical isolation and protection against accidental contact while maintaining the professional appearance and safety standards required in single-phase electrical installations.

Key Features

• Single-Phase Compatibility: Designed specifically for 1-phase pin busbar systems
• Safety Protection: Provides essential termination and isolation for exposed busbar ends
• Professional Finish: Ensures clean, professional appearance in electrical panel installations
• Easy Installation: Simple snap-on design for quick and secure attachment
• Ultra-Compact Design: Extremely lightweight construction at only 0.0004 kg with minimal space requirements
• German Engineering: Manufactured in Germany ensuring reliable quality and performance

Technical Specifications

• Application: End cap for pin busbars
• Phase Configuration: 1-phase systems
• Net Weight: 0.0004 kg
• Packaging Dimensions: 85.00 x 150.00 x 10.00 mm
• Country of Origin: Germany
• EAN: 4001869313160

Applications

This single-phase busbar end cap is particularly suitable for:

• Single-phase electrical distribution panel installations
• Residential electrical panel assemblies
• Small commercial electrical installations
• Single-phase busbar system terminations
• Safety isolation of single-phase busbar ends
• Professional electrical panel finishing
• Maintenance safety applications
• Single-phase electrical system upgrades
• Small panel board modifications
• Residential automation installations

Compliance & Certifications

• RoHS Compliance: Compliant since January 1, 2006
• WEEE Directive: Not subject to take-back obligations
• REACH Regulation: Currently no SVHC substances identified above 0.1% w/w threshold
• Export Control: AL: N / ECCN: N
• Product Class: B - Return restricted, contact Siemens partner for returns

Product Classification

• eClass: 27-37-03-92 (versions 12-14), 27-37-92-04 (versions 6-9.1)
• ETIM: EC002270 (versions 7-9)
• UNSPSC: 39-13-17-02
• IDEA: 5439
• Product Group: 5506
