Siemens

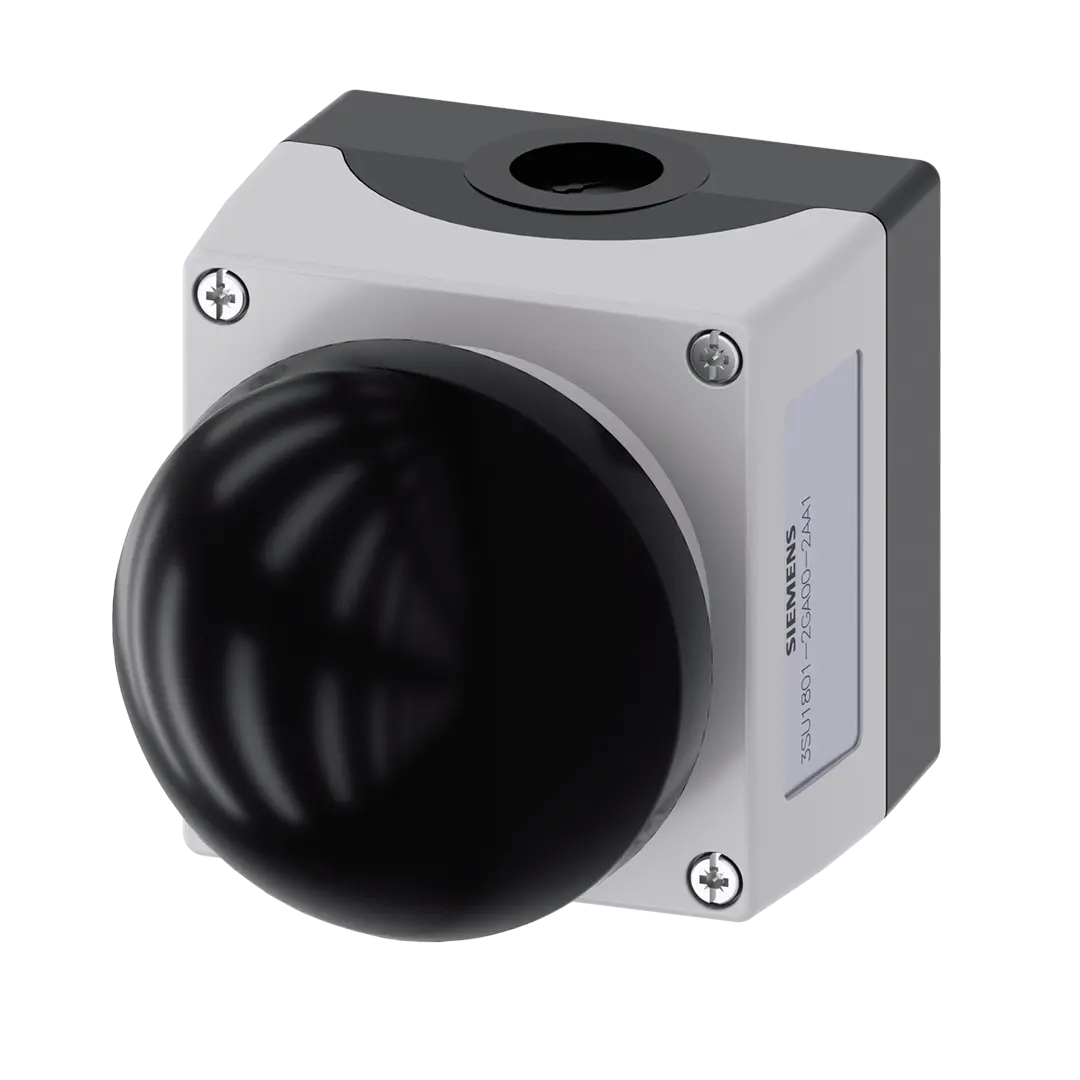

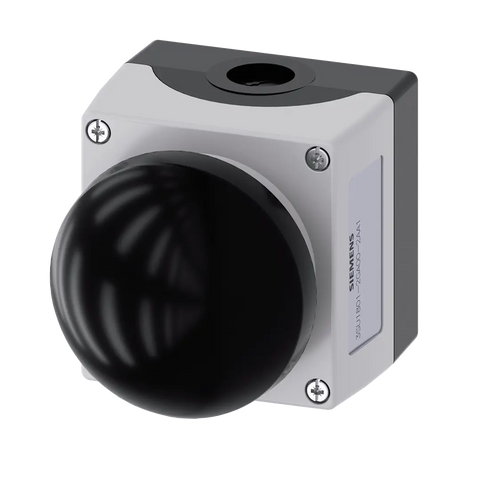

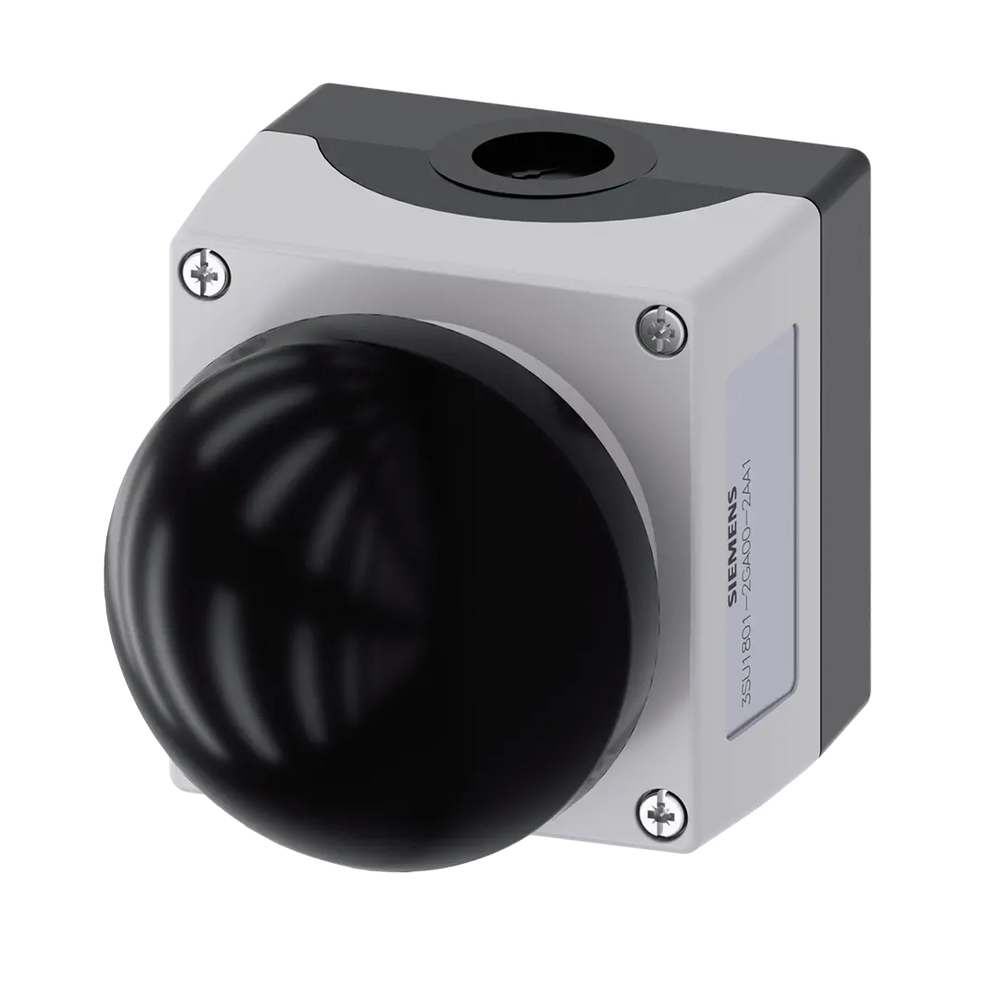

Siemens Enclosure, palm pushbutton, black, 1NO, 22mm Part number 3SU1801-2GA00-2AA1

EAN / Barcode 4011209970304
Product Type Control Panel
Product Class Control circuit devices combination in enclosure
ETIM Class Control circuit devices combination in enclosure
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

Siemens 3SU1801-2GA00-2AA1 Enclosure for command device, A=palm pushbutton black is elegantly designed for ease of use as a momentary contact type mechanism. Along with black mushroom cap is available as a complete unit with contacts (1NO). The enclosure is grey/black, and the casing is rated IP66/67/IP69K.

The A=palm pushbutton has been tried, test and met all international standards worldwide. Making it a product that will perform soundly within the robust Automation industry.

Technical Specifications

Colour housing coverGrey
Compliance/StandardsEN 61373, IEC 60721, IEC 60068-2, IEC 81346-2
country_of_originChina
Degree of protection (IP)IP67/IP69K
Degree of protection (NEMA)1
descriptionEnclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, Control point in center, A=palm pushbutton black, momentary contact type, 1 NO, screw terminal, Floor mounting
Housing materialPlastic
IP RatingIP66
IP Rating DetailedIP66 IP67, IP69(IP69K) degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12K, 13 shock resistance according to IEC 60068
Number of command positions1
Number of contacts as normally open contact1
Number of push buttons1
Part Depth (mm)99,00mm
Part Height (mm)130,00mm
Part Width (mm)93,00mm
Rated control supply voltage AC 50 Hz5 V
Rated control supply voltage AC 60 Hz5 V
Rated control supply voltage DC5 V
Weight (g)0,378 Kg
View complete specifications on Siemens
