Siemens

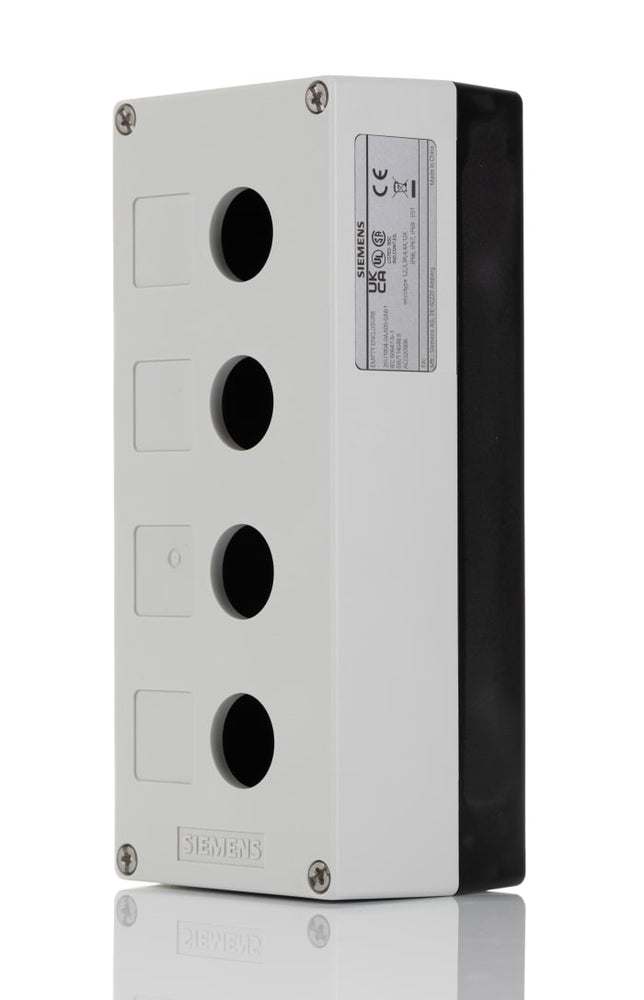

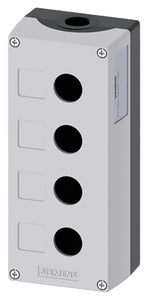

Siemens Enclosure for command devices, grey top, 22mm, 4 hole Part number 3SU1804-0AA00-0AB1
Back Order
View Full Product Details on Siemens
💬
Ask an Expert - Technical Support Available
Product Description
This SIRIUS ACT enclosure for command devices is a 22 mm, round plastic enclosure with a gray top. It accommodates four control points, offers IP66, IP67, and IP69 protection, and includes slots for label placement, ideal for control panels in harsh environments.
Technical Specifications
| IP Rating | IP66, IP67, IP69(IP69K) |
| Country of Origin | Germany |
| Temperature: Operating | -25°C to 70°C |
| Part Depth (mm) | 64mm |
| Part Width (mm) | 85mm |
| Part Height (mm) | 194mm |
| Diameter (mm) | 22.3mm |
| Packaging size / unit | pc(s) |
| Tightening Torque | 1.5 - 1.7 Nm |
| Material: Product | Plastic |
| Connection Type | Cable routing above and below, both 1 x M25 |
| Mounting Type | Floor mounting |
| Colour | Grey |
