Siemens Electronics module for ET 200S, 12 bit, 1 - 5V

Product Overview

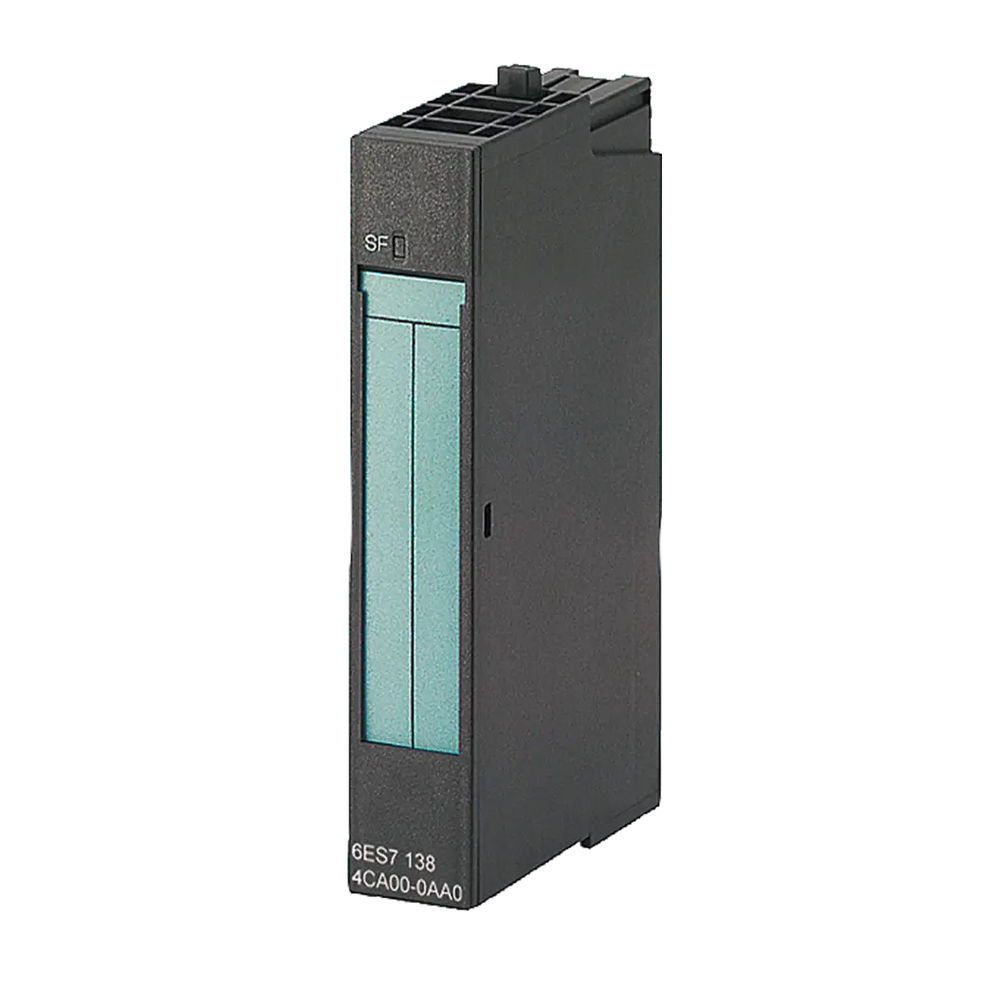

SIMATIC DP electronics module for ET200S featuring 2 analog outputs (AO U) with voltage output capability in a compact 15mm width design. This module provides ±10V output with 13-bit plus sign resolution and 1-5V output with 12-bit resolution, delivering cycle times less than 1ms for fast control applications. The module includes SF LED for group fault indication and is designed for distributed I/O applications requiring precise analog voltage control.

Important Product Status Notice

• Product Status: Spare part - Product cancelled since 01.10.2023
• Availability: Available as spare part only through Siemens Service
• Support: Contact local Siemens office for assistance with this product

Key Features & Specifications

• Analog Outputs: 2 voltage outputs (AO U) with dual resolution capabilities
• Output Ranges: ±10V (13-bit + sign), 1-5V (12-bit) for versatile voltage control
• Compact Design: 15mm width for space-efficient installation in ET200S systems
• Fast Response: Cycle time less than 1ms for real-time control applications
• Fault Indication: SF LED for group fault monitoring and diagnostics
• System Integration: Designed for SIMATIC DP and ET200S distributed I/O systems

Technical Specifications

• Article Number: 6ES7135-4FB01-0AB0
• Configuration: 2 AO U analog output module for ET200S
• Output Resolution: ±10V (13-bit + sign), 1-5V (12-bit)

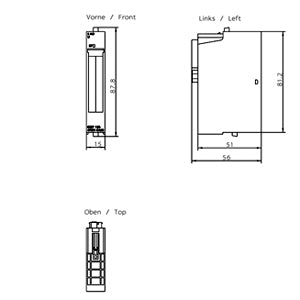

• Dimensions: 15mm width, 0.046 kg weight
• Packaging: 6.20 x 9.20 x 2.20 cm, EAN: 4025515072409
• System Compatibility: SIMATIC DP and ET200S distributed I/O system
• Country of Origin: China

Output Performance & Characteristics

• Voltage Range 1: ±10V with 13-bit plus sign resolution for bipolar applications
• Voltage Range 2: 1-5V with 12-bit resolution for standard industrial control
• Response Time: Cycle time less than 1ms for fast control loops
• Signal Quality: High precision analog outputs suitable for control applications
• Load Characteristics: Optimized for various load impedances in industrial environments

Applications & Integration

• Process Control: Voltage control of actuators, valves, and control devices
• Legacy System Support: Spare part for existing ET200S installations
• Industrial Automation: Analog control in manufacturing and process applications
• Maintenance Applications: Replacement component for service and repair operations
• System Integration: Compatible with SIMATIC DP communication protocols and ET200S rack systems

Service & Support Information

• Spare Part Status: Available through Siemens Service and Support channels
• Technical Support: Contact local Siemens office for technical assistance
• Documentation: Reference existing ET200S system documentation for integration
• Replacement Considerations: Consult Siemens for current product alternatives

Compliance & Environmental

• Export Control: ECCN: EAR99H / AL: N
• RoHS Compliance: Since 31.12.2008
• WEEE Take-Back: Applicable
• Product Class: A - Standard stock item, returnable within guidelines

REACH Regulation Information

• Regulated Substances: Contains substances from the candidate list in concentrations higher than 0.1% w/w: Lead, Lead monoxide (lead oxide), and Lead titanium zirconium oxide
• Risk Assessment: These substances do not pose risks when used as intended, including disposal
• Documentation: Refer to product documentation for additional details

Download existing graphical data for this product:

• Product Datasheet
• Product Documentation
