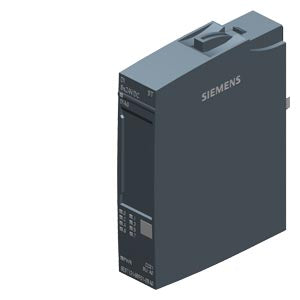

Siemens Digital input module, standard, DI 8x 24VDC Part number 6ES7131-6BF01-0BA0

Product Overview

The SIMATIC ET 200SP Digital Input Module DI 8x 24V DC Standard delivers efficient digital signal acquisition with 8 channels of 24V DC input capability for cost-effective industrial automation applications. Featuring Type 3 (IEC 61131) sink input configuration with PNP P-reading functionality, this module provides reliable digital signal processing for sensors, switches, and field devices within the ET 200SP distributed I/O system. Enhanced with comprehensive diagnostics including sensor supply short-circuit, wire break, and supply voltage monitoring for superior system reliability.

Key Features

• 8-Channel Digital Input: Optimized 24V DC sink inputs with Type 3 (IEC 61131) specification for efficient signal acquisition
• PNP P-Reading Configuration: Sink input design optimized for PNP sensors and switching devices with positive logic reading
• Adjustable Input Delay: Configurable input delay time from 0.05ms to 20ms for noise filtering and signal conditioning
• Enhanced Diagnostics: Comprehensive diagnostics including sensor supply short-circuit, wire break, and supply voltage monitoring
• BU Type A0 Compatibility: Designed for use with SIMATIC ET 200SP BaseUnit type A0 configurations
• Color Code CC01: Standardized color coding for simplified identification and maintenance procedures
• Compact Design: Space-efficient 15mm width design with 73mm height for optimized cabinet density

Technical Specifications

• Input Configuration: 8 digital inputs | Input Voltage: 24V DC
• Input Type: Type 3 (IEC 61131) sink input (PNP) | Weight: 0.035 kg
• Input Delay Time: 0.05-20ms (configurable) | Protection Rating: IP20
• BaseUnit Compatibility: BU type A0 | Color Code: CC01
• Connection Type: Plug-in connection | Signal Processing: P-reading (positive logic)

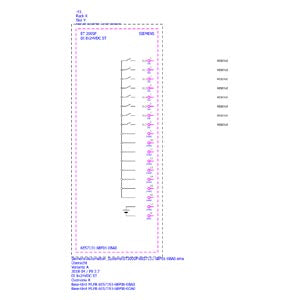

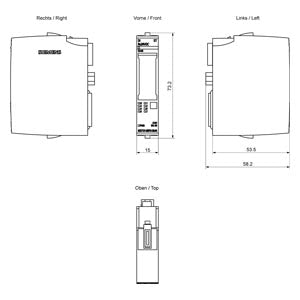

• Dimensions: 73mm H x 15mm W x 58mm D | Operating Temperature: Standard industrial range
• Package Dimensions: 6.80 x 7.80 x 2.40 cm | ATEX Rating: Cat. 3G (gas explosion protection)

Applications & Integration

Primary Applications:

• Cost-effective industrial automation systems requiring 8-channel digital input processing
• Sensor interface for proximity sensors, limit switches, and photoelectric devices
• Process control systems with PNP sensor configurations and moderate I/O density requirements
• Manufacturing automation requiring reliable digital signal acquisition with enhanced diagnostics

System Compatibility:

• Compatible with SIMATIC ET 200SP BaseUnit type A0
• Integration with SIMATIC S7-1500 and S7-1200 controllers
• PROFINET communication protocol support
• TIA Portal engineering environment compatibility
• Hot-swappable operation with multi-hot swapping capability

Quality & Compliance

• Status: Active Product (PM300) | Origin: Germany
• EAN: 4047623408598 | UPC: 804766528088
• RoHS Compliant: Since 15.09.2017 | WEEE: Take-back obligation applicable
• REACH: Contains lead and lead monoxide (lead oxide) above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N

Package Contents

• 1 × ET 200SP Digital Input Module DI 8x 24V DC Standard, technical documentation, installation accessories
