Siemens

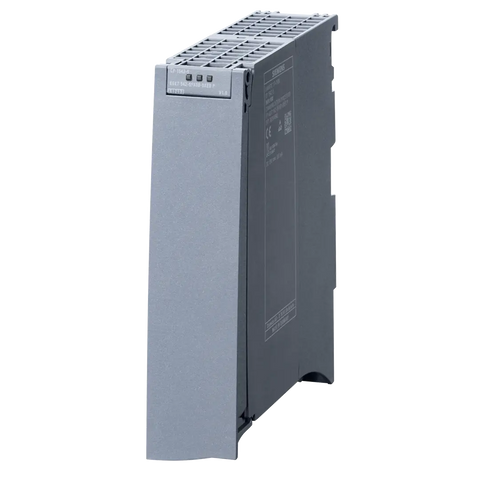

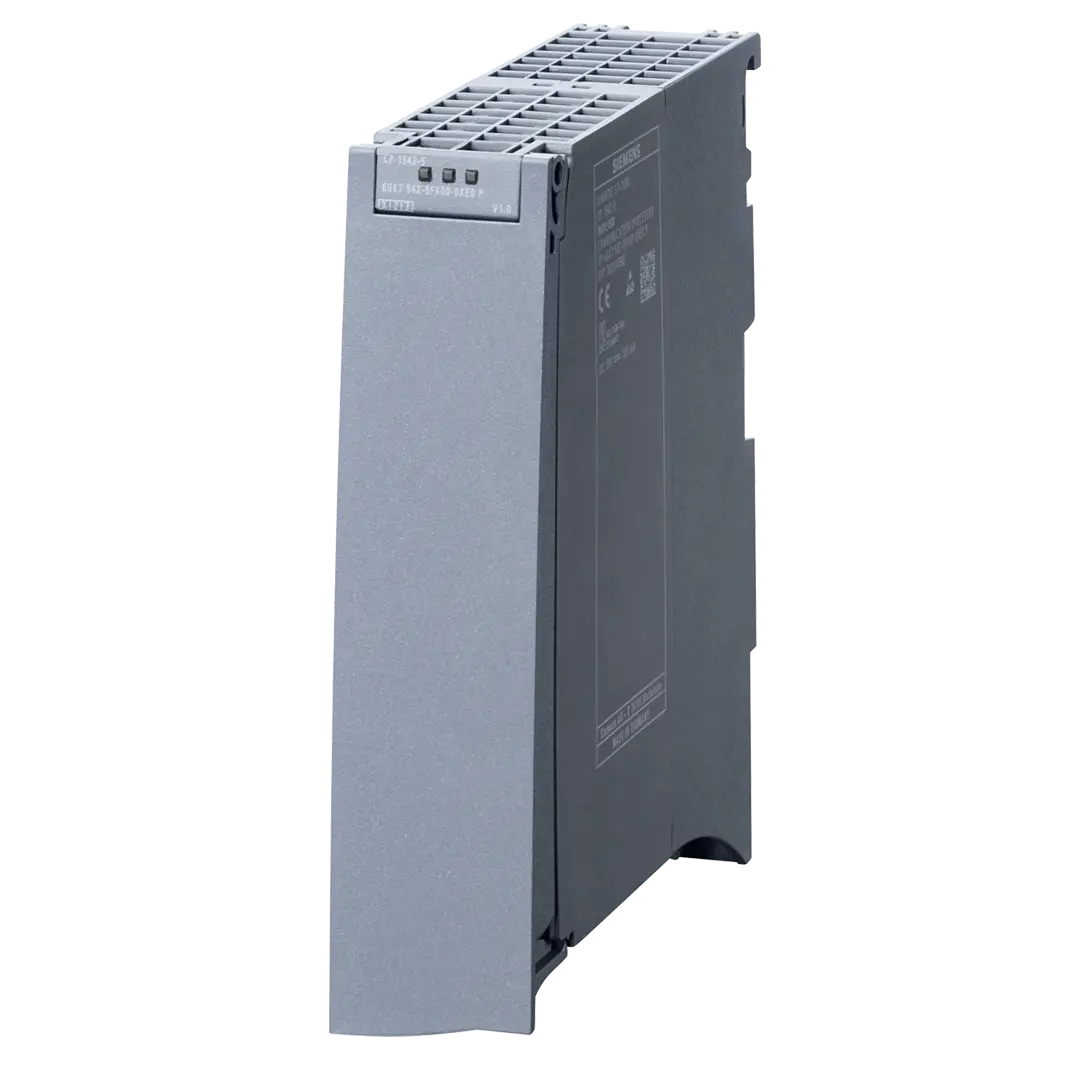

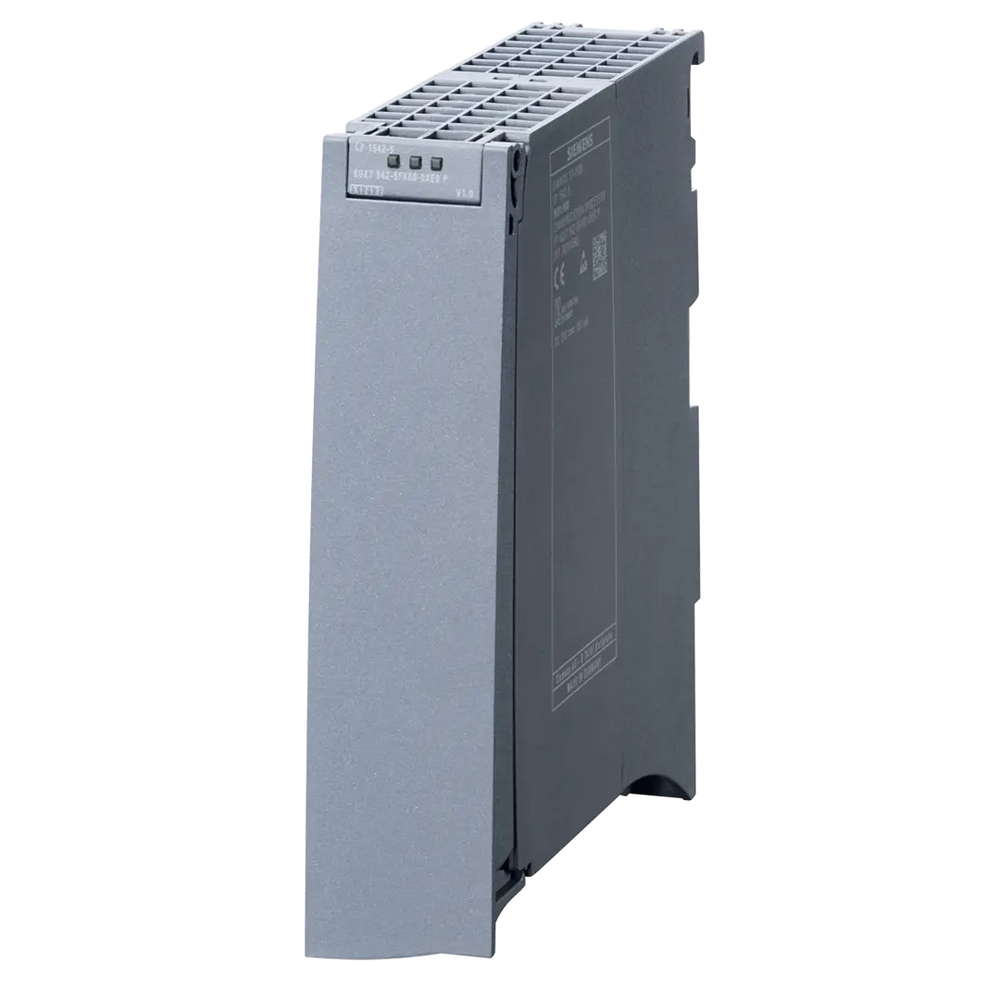

Siemens CP 1542-5 Communications processor Part number 6GK7542-5FX00-0XE0

EAN / Barcode 4019169259958
Product Type Control Panel
Product Class PLC communication module
ETIM Class PLC communication module
Back Order
💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Communications processors (CPs) for the digital factory: Digitalisation is picking up speed. More and more devices and components across the entire value chain are generating important data – data that has to be quickly, efficiently, and securely transported, analysed, and utilised for Industry 4.0 and the Digital Enterprise. Achieving this requires high-performance industrial communication networks – and system interfaces.

Technical Specifications

Compliance/StandardsIEC 81346-2
country_of_originGermany
Depth129 mm
description- - spare part - - communications processor CP 1542-5 for connection of SIMATIC S7-1500 to PROFIBUS DP, DPV1 master or DP Slave, S7 and PG/OP communication, time-of-day synchronization, diagnostics, reduced quantity structure.
Height142 mm
IP RatingIP20
IP Rating DetailedIP20 design, dimensions and weights module format Compact module S7
Number of HW-interfaces RS-4851
Part Depth (mm)125,00mm
Part Height (mm)120,00mm
Part Width (mm)40,00mm
Supporting protocol for PROFIBUSYes
Transmission rate12000 kBit/s
Type of data transmissionOther
Weight (g)0,339 Kg
Width35 mm
