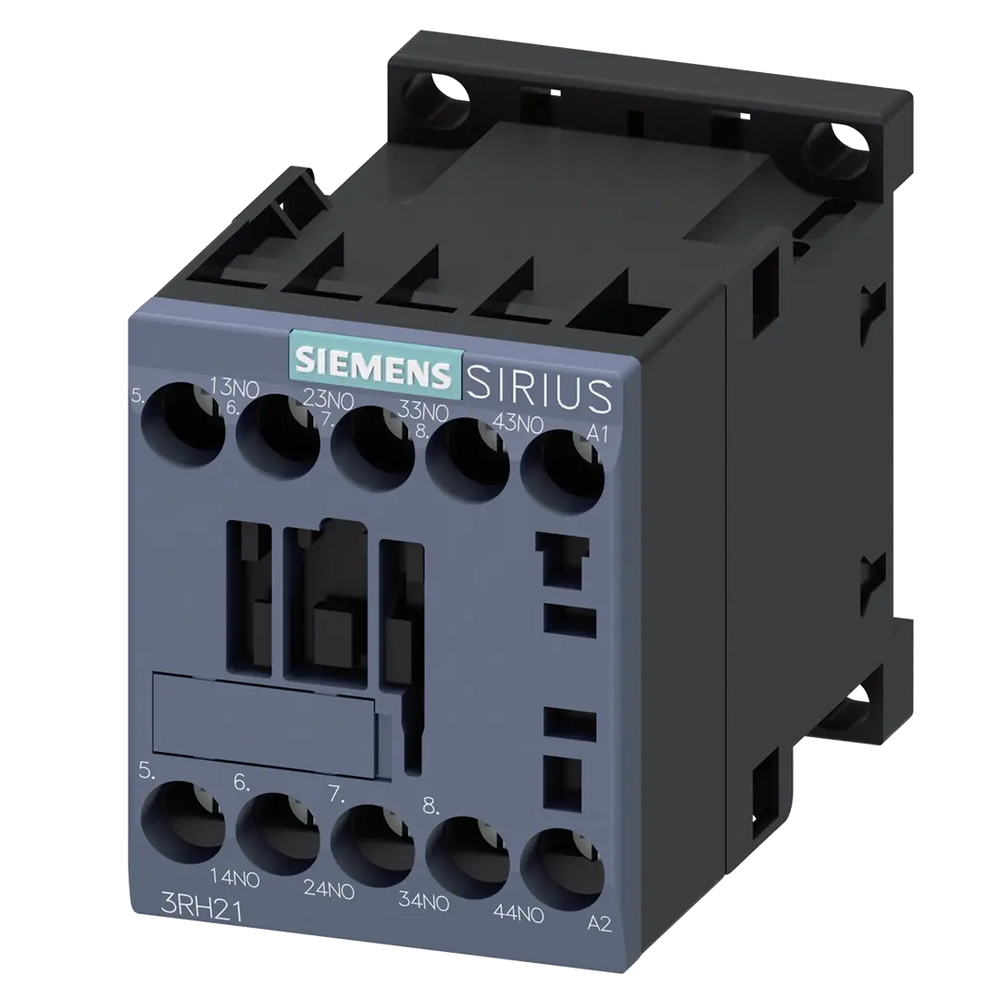

Siemens Contactor relay, screw, size S00, 4NO, 230VAC Part number 3RH2140-1AP00

EAN / Barcode 4011209828506
Product Type Control Panel
Product Class Contactor relay
ETIM Class Contactor relay
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Contactor relay

The SIRIUS 3RH2 contactor relay is designed for switching control signals in control circuits.

Technical details:

  • 4 NO
  • 230 V AC
  • 50/60 Hz
  • Screw terminal
  • Frame size S00
  • Standard-compliant terminal designations
  • Positively driven operation for safety applications
  • Climate-resistant
  • Approvals: IEC and UL/CSA
  • 4-pole design, extendable up to 8 poles
  • Compatible with snap-on auxiliary switches
  • Suitable for AC or DC operation

Customer benefits:

  • Reliable and time-saving connection technology
  • Allows simultaneous switching of several auxiliary circuits
  • High contact reliability
  • Suitable for worldwide use
  • Extensive range of accessories available
  • Simple, efficient, and always up to date with the SIRIUS modular system

Technical Specifications

Connection type auxiliary circuitScrew connection
Depth73 mm
Height57.5 mm
Mounting methodScrew
Number of auxiliary contacts as normally open contact4
Rated control supply voltage AC 50 Hz230 V
Rated control supply voltage AC 60 Hz230 V
Rated operation current Ie, 400 V3 A
Voltage type for actuatingAC
Width45 mm
Part Width50 mm
Part Height61 mm
Part Depth77 mm
Weight233 g
Country of OriginGermany
