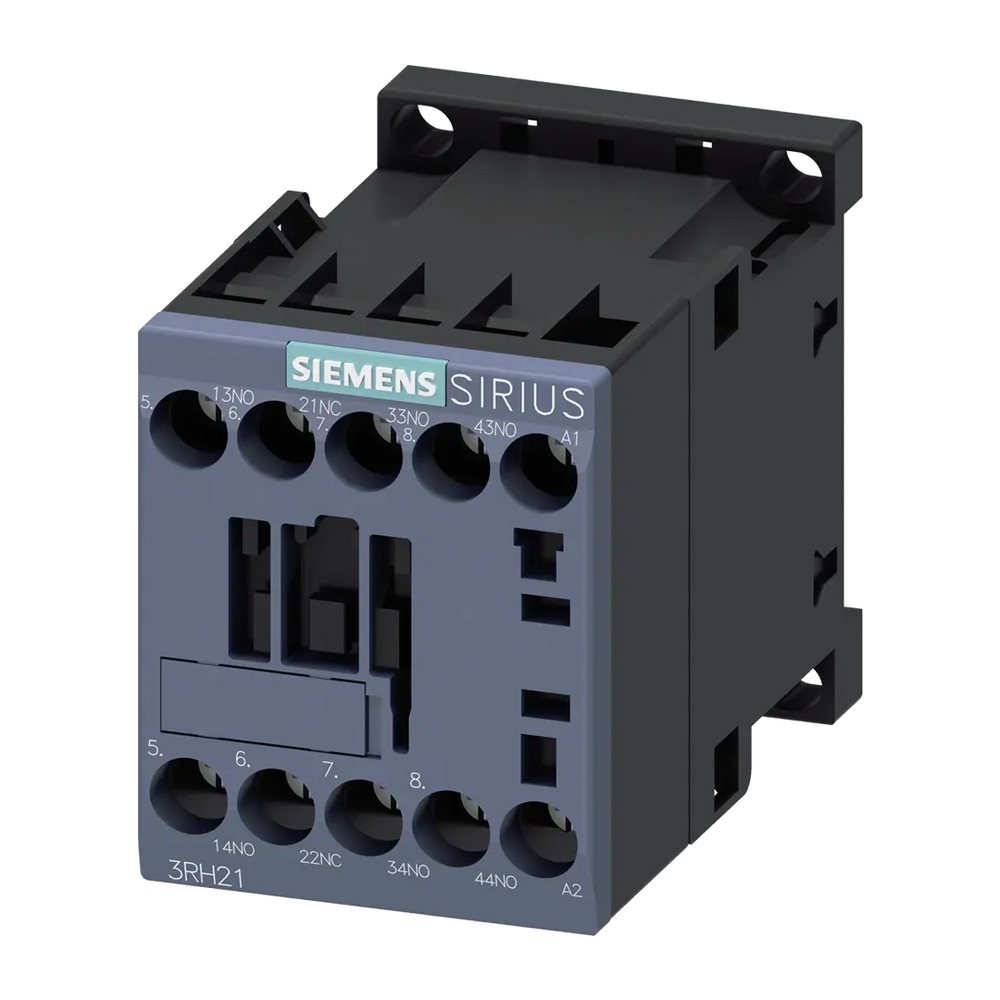

Siemens Contactor relay, screw, size S00, 3NO+1NC, 230VAC Part number 3RH2131-1AP00

Product Type Control Panel
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Contactor relay

The SIRIUS 3RH2 contactor relay is designed for switching control signals in control circuits.

Technical details:

  • 3 NO + 1 NC
  • 230 V AC
  • 50/60 Hz
  • Screw terminal
  • Frame size S00
  • 4-pole design, extendable up to 8 poles
  • Climate-resistant
  • Available with AC or DC operation
  • Standard-compliant terminal designations
  • Suitable for use worldwide (e.g. IEC and UL/CSA)

Customer benefits:

  • Reliable and time-saving connection technology
  • Simultaneous switching of several auxiliary circuits possible
  • Contacts available with positively driven operation for safety applications
  • Extensive range of accessories available
  • Replaces the well-proven 3RH1 series
  • Simple, efficient, and always up to date - SIRIUS modular system

Technical Specifications

Part Width50 mm
Part Height61 mm
Part Depth77 mm
Weight233 g
Country of OriginGermany
View complete specifications on Siemens
